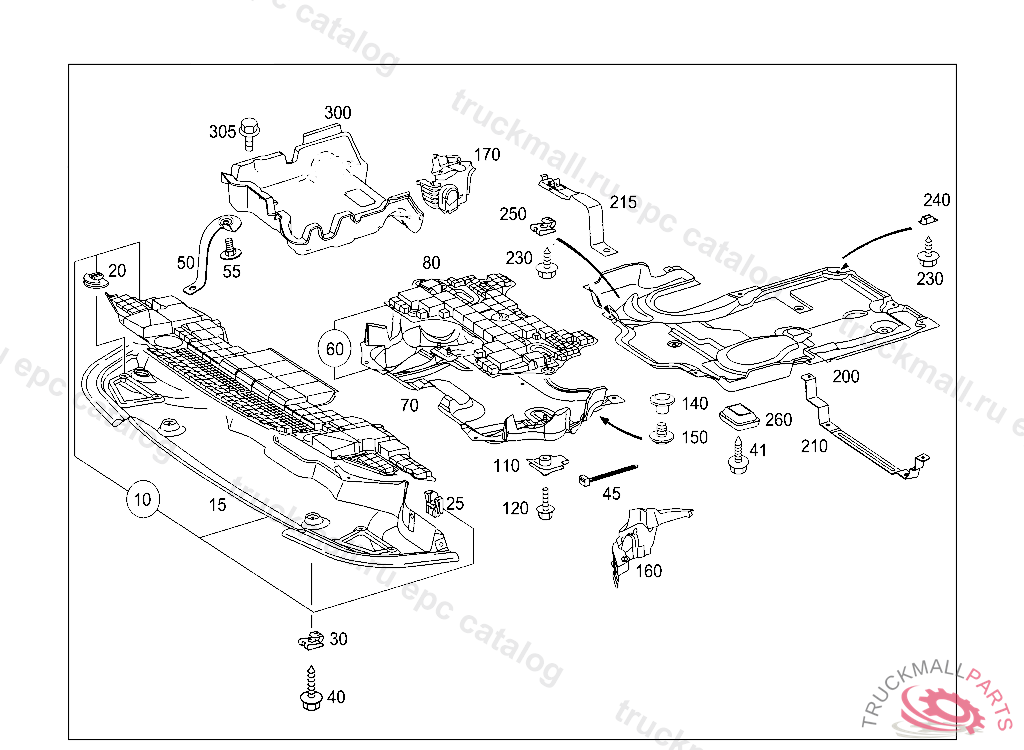

Поз.
Артикул
Описание
10
ANTINOISE CAPSULE FRONT
15
PANELING FRONT
30
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
40
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
41
HEXALOBULAR BOLT TIME-LAG RELAY M5X12
45
CABLE TIE IONIC EXCHANGER 380X7.8MM
50
BRACKET AT FLOOR,FRONT RIGHT
55
HEXAGON NUT W COLLAR BRACKET MOUNTING
60
ANTINOISE CAPSULE
70
PANELING CENTRAL
70
PROTECTIVE PLATE CENTRAL
80
DAMPING STRIP CENTRAL
80
DAMPING STRIP CENTRAL, Replaced By: A2115243585
110
SPRING-THREAD NUT PROTECTIVE PLATE
110
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
120
SCREW-AND-WASHER ASSEMBLY PANELING MOUNTING, RIGHT M8X30
120
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
140
FASTENER BUTTON LOWER PART
150
FASTENER BUTTON UPPER PART
160
ANTINOISE CAPSULE CENTRAL LEFT
170
ANTINOISE CAPSULE CENTRAL RIGHT
200
ENCAPSULATION REAR, Replaced By: A2115204223
200
ANTINOISE CAPSULE REAR
200
ANTINOISE CAPSULE REAR
200
ANTINOISE CAPSULE REAR
215
BRACKET ON FLOOR, Replaced By: A2115200241
215
BRACKET ON FLOOR
230
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
240
LOCK. CLIP-TYPE NUT
250
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
300
ANTINOISE CAPSULE SOUNDPROOFING TO OIL PAN
305
SCREW PUMP TO BRACKET
