Mercedes A2112411734 - Экран

E 320 CDI 4MATIC 211.289

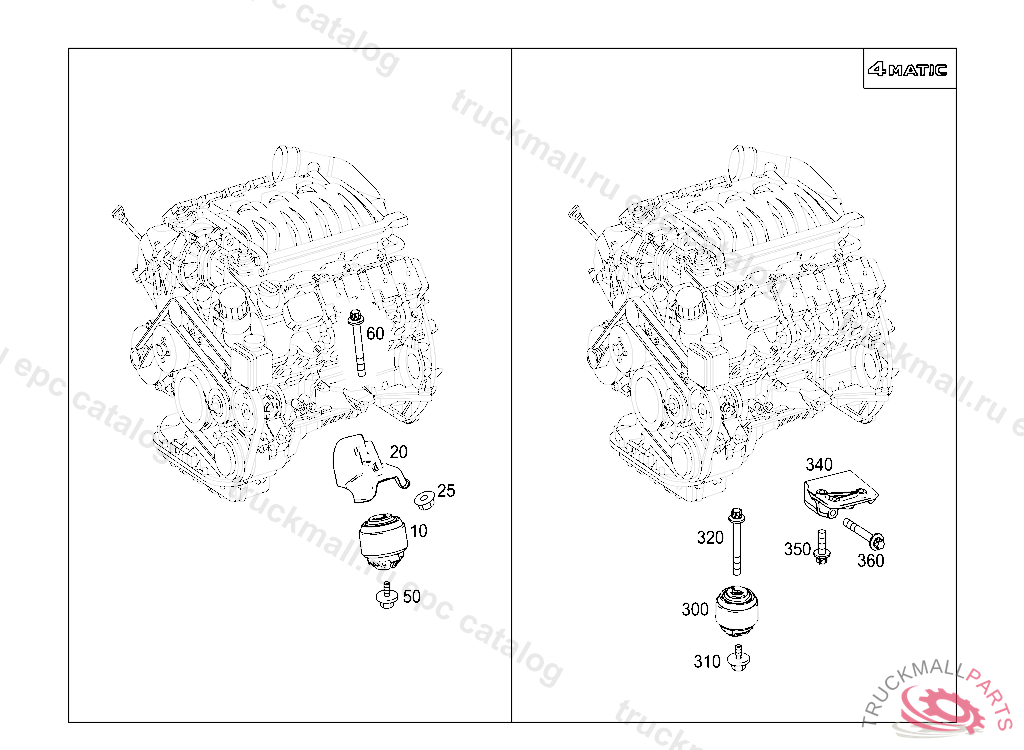

24 ENGINE SUSPENSION - 015 ENGINE SUSPENSION IL. 1

Поз.
Артикул
Описание
20
A2112411734
SCREENING PLATE FRONT RIGHT
50
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
300
A2112403517
ENGINE MOUNT FRONT LEFT
300
A2112402117
ENGINE MOUNT FRONT RIGHT
310
A2029902201
BOLT FRONT ENGINE MOUNT ON FRAME-TYPE INTEGRAL SUPPORT M8X21
320
N304017010051
SCREW
320
N914007010066
COMBINATION BOLT. SCREW-AND-WASHER ASSEMBLY ENGINE FRONT RIGHT MOUNTING M10X60, Replaced By: N304017010051, +001N000000003260
340
A1132230038
STRUT ENGINE SUPPORT TO CRANKCASE, LEFT
350
N910143008002
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
360
N910143008019
HEXALOBULAR BOLT. SCREW CLAMP ON BRACKET M 8X60
