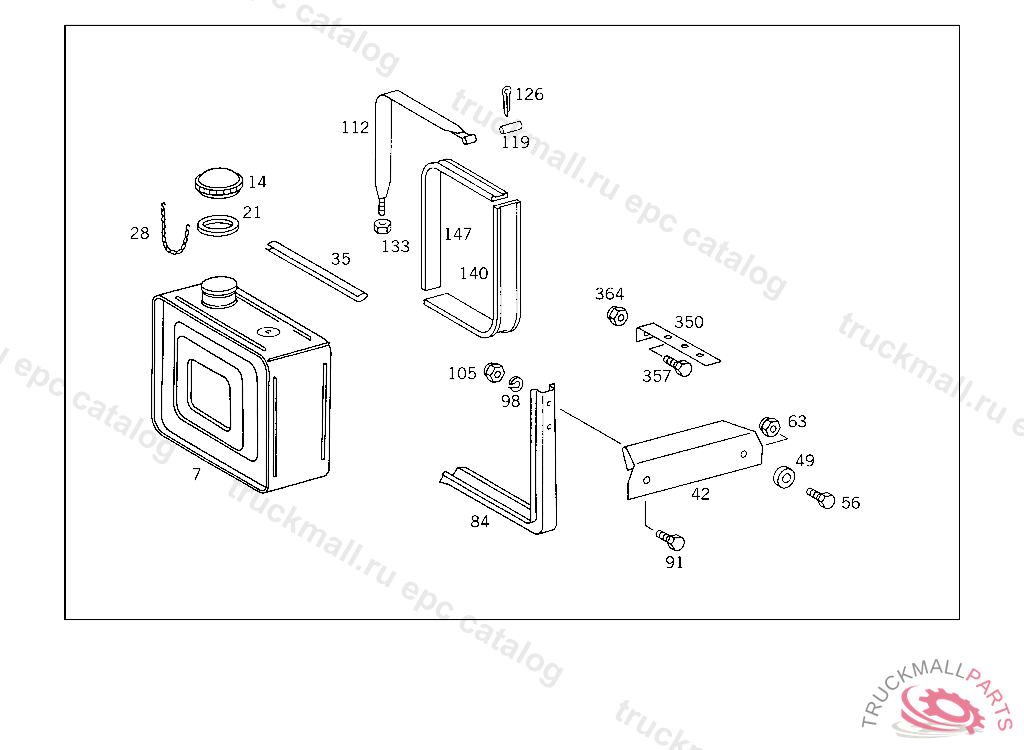

Поз.
Артикул
Описание
7
FUEL TANK100 L
14
FILLER CAP , Replaced By: A0004700305
14
FILLER CAP , Replaced By: A0004700305
14
FILLER CAP , Replaced By: A0004700305
14
FILLER CAP
21
SEAL RING
28
CHAIN FILLER CAP
35
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
35
EDGE GUARD SECTION , Replaced By: A0029873572
35
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
42
BRACKET FUEL TANK CONSOLE
49
SPACER RING BRACKET AND BEARING BRACKET TO FRAME
56
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
56
SCREW CROSS MEMBER TO FRONT SPRING REAR BRACKET M 14X1.5X70
56
SCREW , Replaced By: N308676014014
63
NUT , Replaced By: N910113014001
63
NUT BRACKET TO SIDE MEMBER
84
CONSOLE , Replaced By: A3354750703
84
CONSOLE REAR EXHAUST PIPE TO CONSOLE
91
SCREW , Replaced By: N308676014020
91
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
98
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
105
NUT BRACKET TO SIDE MEMBER
105
NUT , Replaced By: N910113014001
112
STRAP FUEL TANK TO SUPPORT
119
PIN STRAP TO SUPPORT
126
COTTER PIN STRAP TO SUPPORT
133
NUT STRAP TO SUPPORT
140
PAD FUEL TANK TO CONSOLE, ORDER BY THE METER
147
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
350
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
350
BRACKET , Replaced By: A3604292940
357
SCREW BRACKET TO FRAME SIDE MEMBER
364
NUT STRAP TO BRACKET
364
NUT , Replaced By: N910113010000
