Mercedes
TRUCK
2633,3333 B/K
624.048

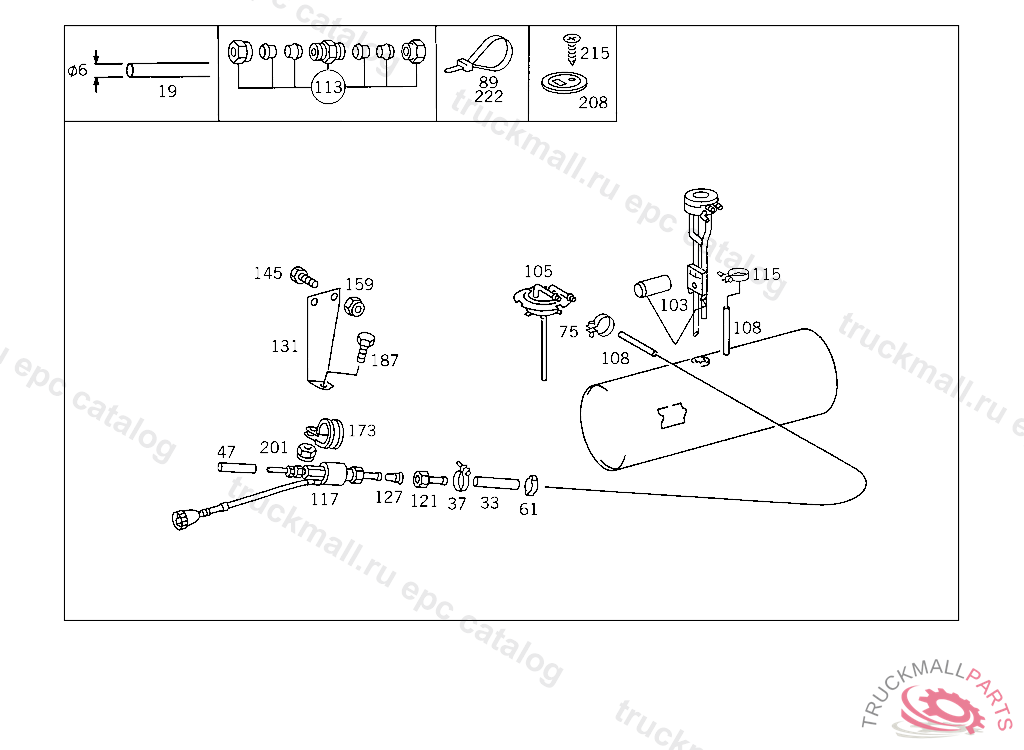

47 FUEL SYSTEM
001 FUEL SYSTEM USED FOR INSTALLATION OF CIRCULATING AIR HEATER

Mercedes N916002010100 - ХОМУТ

2633,3333 B/K 624.048

47 FUEL SYSTEM - 001 FUEL SYSTEM USED FOR INSTALLATION OF CIRCULATING AIR HEATER

Поз.
Артикул
Описание
19
A0009871727
PLASTIC PIPE FUEL SYSTEM 6X2 MM, ORDER BY THE METER
19
A3359972282
HOSE FUEL LINE, ORDER BY THE METER
33
N073379006203
HOSE LEAK LINE, ORDER BY THE METER
37
N916002010100
CLAMP LINE MOUNTING
47
A0004760125
INTERMEDIATE PIECE FUEL LINE,K 223528
47
A0004760225
INTERMEDIATE PIECE , Replaced By: A0004760125
61
A0029970190
LOOM TIE LINE MOUNTING
75
N916002010100
CLAMP LINE MOUNTING
89
A0019978490
LOOM TIE LINE MOUNTING
89
A0019978390
LOOM TIE LINE MOUNTING 280 MM
103
A0085428917
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
A0085428717
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
A0085428617
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
A0085424017
SENDER UNIT FUEL GAUGE
103
A0085428517
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
103
A0055424317
SENDER UNIT , Replaced By: A0085424017
103
A0055424417
SENDER UNIT , Replaced By: A0085428517
103
A0055424517
SENDER UNIT , Replaced By: A0085428617
103
A0055424617
SENDER UNIT , Replaced By: A0085428717
103
A0065420417
SENDER UNIT , Replaced By: A0085428917
105
A0005420191
COVERING FUEL TANK
108
A0009872627
PLASTIC PIPE RISING PIPE 4X6 MM
108
A0089979082
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
108
A0089976082
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
113
A0039978972
FITTING , Replaced By: A0029905971
113
A0039979172
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
113
A0029905971
FITTING (PARTS KIT),LINE RUPTURE
115
A0029970190
LOOM TIE LINE MOUNTING
115
N916002008100
CLAMP RISING PIPE,5 4734955 909351
115
N916002010100
CLAMP LINE MOUNTING
117
A0004701994
AUXILIARY PUMP FUEL 24 V
117
A0004701894
AUXILIARY PUMP , Replaced By: A0004704594, +002A0025450628, +001A0055454528, +001A0019906440, +001A0009904954, +001A0029970781
117
A0004704594
AUXILIARY PUMP FUEL-OIL,K 181478, Replaced By: A0004706694
117
A0004706694
AUXILIARY PUMP FUEL-OIL PUMP,K 181478
121
A0004780064
FITTING
127
A0004730035
STRAINER
131
A6204760036
BRACKET ADDITIONAL FUEL PUMP
131
A6174761136
BRACKET
145
N304017010002
SCREW BRACKET TO SIDE MEMBER
145
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
145
N000933008153
SCREW , Replaced By: N304017008034
145
N000933010129
SCREW , Replaced By: N304017010002
159
N913004008004
NUT , Replaced By: N913004008001
159
N913004010011
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
159
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
173
N916016034202
CLAMP PUMP TO BRACKET
187
N304017006016
SCREW PUMP TO BRACKET
187
N000933006183
SCREW , Replaced By: N304017006016
201
N913004006002
NUT , Replaced By: N913004006001
201
N913004006001
NUT PUMP TO BRACKET
208
A3816820086
BRACKET LINE MOUNTING
215
N007981004254
TAPPING SCREW. SHEET METAL SCREW FUEL LINE
222
A0019978390
LOOM TIE LINE MOUNTING 280 MM
999
A0065420417
SENDER UNIT , Replaced By: A0085428917
