Mercedes
TRUCK
2636 K,3336 K,3536,3636,4436
624.137

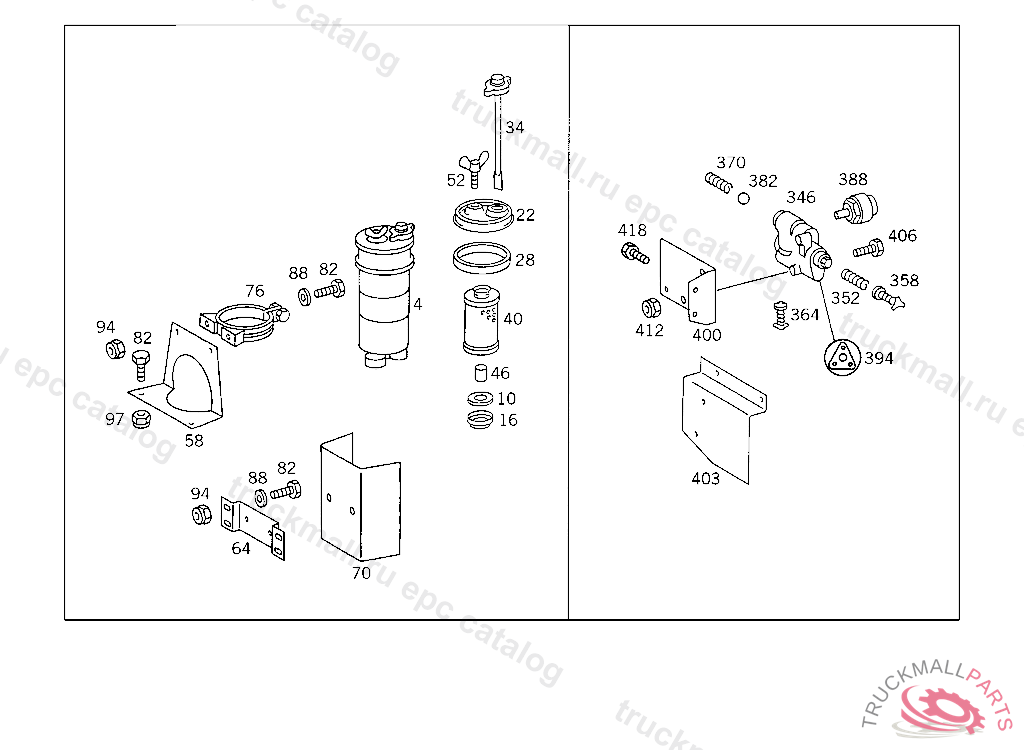

42 BRAKES
001 BRAKES USED ON INCREASE OF TOTAL PERMISSIBLE WEIGHT,EC VERSION IL.3

Mercedes N304017010043 - БОЛТ М10

2636 K,3336 K,3536,3636,4436 624.137

42 BRAKES - 001 BRAKES USED ON INCREASE OF TOTAL PERMISSIBLE WEIGHT,EC VERSION IL.3

Поз.
Артикул
Описание
4
A0004665102
TANK , Replaced By: A0004666802
4
A0004666802
TANK OIL
10
A0004660291
SPRING , 993034
16
A0004660191
VALVE DISC , 993034
22
A0004661705
COVER OIL TANK
28
A0004660260
SEAL RINGTO 000 466 38 02
34
A0004660367
OIL DIPSTICK OIL TANK
40
A0004660004
FILTER , 993034
46
A0009870643
RUBBER SLEEVETO 000 466 38 02
52
N000316008027
SCREW OIL TANK
58
A6994664840
BRACKET OIL TANK
64
A6994661341
SUPPORT OIL TANK
70
A6994660438
COVER PLATE OIL TANK
76
A6999950069
CLAMP OIL TANK TO BRACKET
82
N304017008021
SCREW PIPE CLAMP
82
N000933008147
SCREW , Replaced By: N304017008021
88
N000125008418
WASHER , Replaced By: N000125008443
88
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
94
N913004008001
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
94
N913004008004
NUT , Replaced By: N913004008001
97
N910113008001
NUT STRAP TO BRACKET
346
A0004661591
VALVE (CUT-IN VALVE),AT FRAME SIDE MEMBER IN FRONT OF STEERING BOX, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
352
A0059935201
SPRING
358
A0004600884
VALVE
364
A0004600784
VALVE
370
A0059935301
SPRING
382
N005401320000
BALL
388
A0105429317
SENDER UNIT STEERING FAILURE
388
A0005429414
INDICATOR , Replaced By: A0105429317
394
A0004600961
GASKET KIT VALVE
400
A0804660140
BRACKET CUT-IN VALVE
403
A0804665240
BRACKET CUT-IN VALVE
406
N000933010336
SCREW VALVE TO BRACKET
412
N913004010011
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
418
N000933010112
SCREW , Replaced By: N304017010043
418
N304017010043
SCREW BRACKET TO CONSOLE
