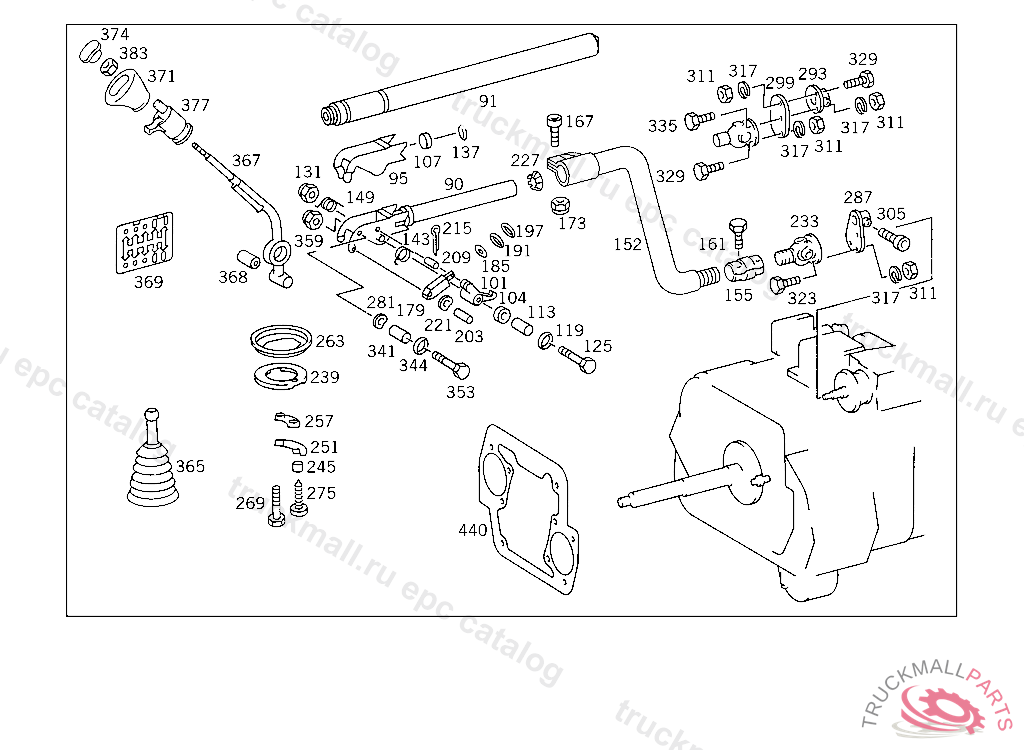

Поз.
Артикул
Описание
90
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
91
SHIFTING TUBE (TELESCOPIC TUBE)
95
ROD END HYDRAULIC RELEASE
101
PAWL ,5 4430475 443048, Replaced By: A6202600087, +001A6202680150
101
PAWL SHIFTING ROD,5 443048
104
BUSHING PAWL TO ROD END,5 443048
104
BUSHING PAWL TO ROD END,5 443048
104
BUSHING PAWL TO ROD END,5 443047
107
EXPANSION PLUG ROD END
113
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
119
ROUND CORD RING. SEAL RING ROD END
125
SCREW SHIFTING ROD TO SHIFT LEVER
125
SCREW , Replaced By: N000933010192
131
NUT , Replaced By: N910113010000
131
NUT STRAP TO BRACKET
137
SEAL RING HYDRAULIC RELEASE
143
SPRING ROD END
149
SPRING ROD END
152
SHIFTING ROD REAR
152
SHIFTING TUBE REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
152
SHIFTING ROD REAR
155
CLAMPING PIECE SHIFTING ROD TO TRANSMISSION
161
SCREW CONNECTOR TO REAR SHIFTING ROD
161
SCREW , Replaced By: N304017010047
167
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
173
NUT STRAP TO BRACKET
173
NUT , Replaced By: N910113010000
179
SHIFTING CYLINDER HYDRAULIC RELEASE WABCO
179
SHIFTING CYLINDER HYDRAULIC RELEASE TECHNOMATIK
185
SEAL RING PISTON RINGS WABCO
191
SEAL RING SCREW FITTING WABCO
197
SEAL RING OUTSIDE WABCO
203
PIN SHIFTING CYLINDER TO YOKE 8X45 MM
209
PIN SHIFTING CYLINDER TO PAWL 8X20 MM
209
PIN , Replaced By: N001444008235
215
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
215
COTTER PIN LEVER TO ROD
221
SPRING WASHER SHIFTING CYLINDER TO YOKE
227
WASHER BETWEEN THE SHIFTING RODS
233
JOINT SHIFTING ROD TO TRANSMISSION
233
JOINT SHIFTING ROD TO TRANSMISSION
233
JOINT SHIFTING ROD TO TRANSMISSION
239
RUBBER PAD SHIFT LEVER TO CAB FLOOR,K040603
245
TUBE. BUSHING CAB FLOOR COVERING
251
BRACKET SHIFT LEVER BEARING TO CAB FLOOR
257
RUBBER PAD SHIFT LEVER BEARING TO CAB FLOOR
263
BRACKET BOOT
269
SCREW SUPPORT TO FENDER
269
SCREW , Replaced By: N304017008018
275
SHEET METAL SCREW BRACKET TO CAB
281
SPRING WASHER SHIFTING ROD TO SHIFT LEVER
287
FLANGE TRANSMISSION
293
FLANGE TRANSMISSION
299
CONNECTOR TRANSMISSION
305
SCREW TRANSMISSION
311
NUT
317
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
323
SCREW SHIFTING TUBE TO TRANSMISSION
329
SCREW BRACKET TO CROSS CONNECTION STRUT
329
SCREW , Replaced By: N304017008034
335
SCREW , Replaced By: A0099900101
335
SCREW , Replaced By: N000933008337
335
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
335
SCREW SHIFTING ROD TO TRANSMISSION
341
SPACER TUBE SHIFTING ROD TO SHIFT LEVER
344
ROUND CORD RING. SEAL RING ROD END
353
SCREW SHIFTING ROD TO SHIFT LEVER
353
SCREW , Replaced By: N000933010192
359
NUT , Replaced By: N910113010000
359
NUT STRAP TO BRACKET
365
BOOT SHIFT LEVER
365
BOOT SHIFTING ROD
367
SHIFT LEVER
367
SHIFT LEVER
367
SHIFT LEVER , Replaced By: A6202601639
368
BUSHING PAWL TO ROD END,5 443047
369
GUMMED LABEL GEAR INDICATOR
371
HANDLE (SHIFT LEVER HANDLE)
371
KNOB , Replaced By: A6202600040
371
HANDLE , Replaced By: A6202680142, +001A6202680157
374
COVER SHIFT LEVER KNOB LESS GEARSHIFT DIAGRAM
377
VALVE SHIFT LEVER HERION
377
VALVE GEARSHIFT LEVER LOWER PART WABCO
377
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 528951, Replaced By: A0012606357
377
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012602457
377
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 403697, Replaced By: A0012605357
377
VALVE , Replaced By: A0012602457
383
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
440
GASKET TRANSMISSION TO BELL HOUSING
999
SERRATED WASHER BRACKET TO CAB FLOOR,4 411811
999
NUT BALL PIVOT TO LEVER
999
WASHER BETWEEN FRONT AND REAR SHIFTING TUBES
999
GUMMED LABEL GEAR INDICATOR
999
JOINT SHIFTING TRANSFER,LEFT
999
RUBBER PAD SHIFTING TRANSFER,LEFT
999
PIN SHIFTING ROD TO JOINT
999
KNOB (SHIFT LEVER HANDLE), TO BE ADAPTED DURING ASSEMBLY
999
CONNECTOR , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6172680028
999
SHIFTING ROD REAR, GIVE LENGTH WHEN ORDERING
999
SHIFTING ROD REAR
999
SHIFTING ROD REAR,4 9211775 018215
999
SHIFTING TUBE
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD),K 142857
999
ROD REAR,5 018216
999
SHIFTING ROD REAR
999
SHIFTING ROD , Replaced By: A6202600733
999
BRACKET SHIFTING TRANSFER,LEFT
999
BRACKET LINE MOUNTING
999
SHIFTING TUBE REAR
999
ROD FRONT, TRANSVERSE
999
BOOT SHIFTING LEVER
999
SHIFTING ROD SHIFTING SHAFT
999
BRACKET LINE MOUNTING,4 411811
999
SHIFTING ROD REMOTE GEARSHIFT MECHANISM,4 292380
999
WASHER LEVER TO BRACKET 30X10.5X4 MM
999
BRACKET , Replaced By: A3604293140
999
BUSHING SHIFT LEVER BEARING TO CAB FLOOR
999
SHIFTING ROD (TELESCOPIC SHIFTING ROD)
999
BRACKET FRONT SHIFTING ROD TO REAR SHIFTING ROD
999
GROMMET
999
PLASTIC TUBE2X4MM, ORDER BY THE METER
999
NEEDLE BEARING
999
SEAL RING LEVER BEARING
999
LOOM TIE LINE MOUNTING
999
LOOM TIE LINE MOUNTING 280 MM
999
SWITCH , Replaced By: A0025458114
999
SWITCH , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 360728, Replaced By: A0005457909
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.40 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.20 MM
999
SEAL RING IDLE POSITION SWITCH TO THREADED BUSHING, AS REQUIRED 2.00 MM
999
SEAL RING , Replaced By: N007603018100
