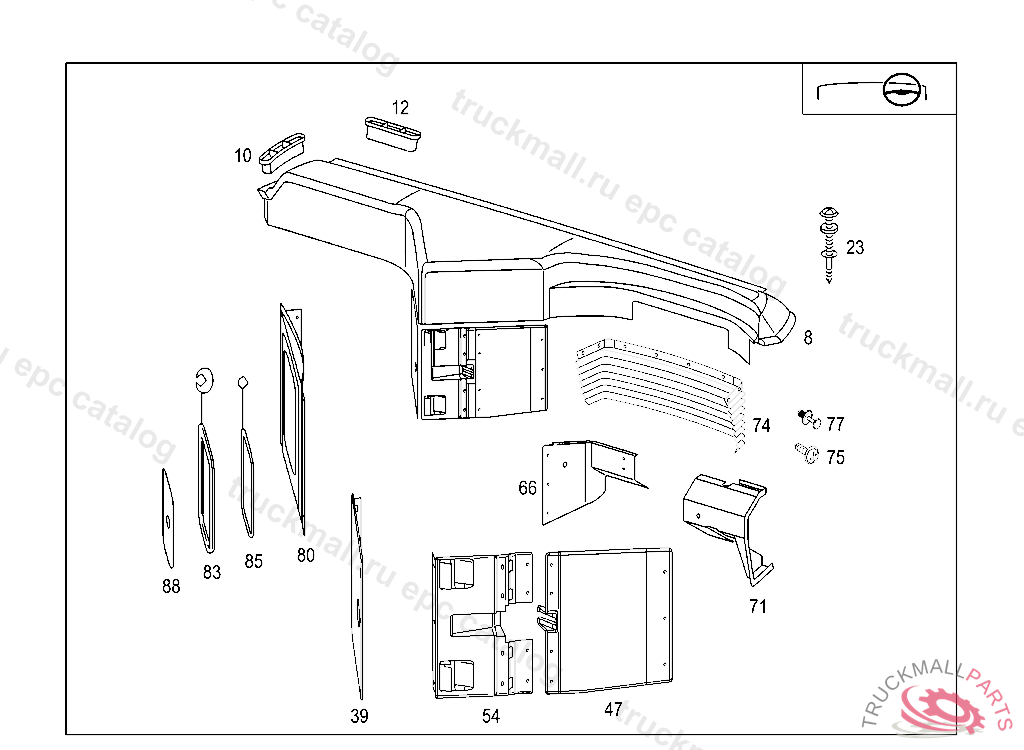

Поз.
Артикул
Описание
10
DEFROSTER NOZZLE WITH SLANTING DISKS
12
AIR DUCT WITH STRAIGHT DISKS
23
RIVET WATER BAFFLE TO CROSS MEMBER,A 166303
39
PANELLING PIGEONHOLE, NO.7C52I....... I I II I
47
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
54
PANELLING BELOW WINDOW SILL,CENTER, NO.7C01I....... I I II I
71
COVERING LEGROOM,LEFT EPS
74
PANELLING BELLOWS
75
SHEET METAL SCREW ,F 122555
77
RIVET RESERVOIR TO FIRE WALL
