Mercedes
›
BUS
›
O 530 GNUE3 EURO 3
›
628.248
›

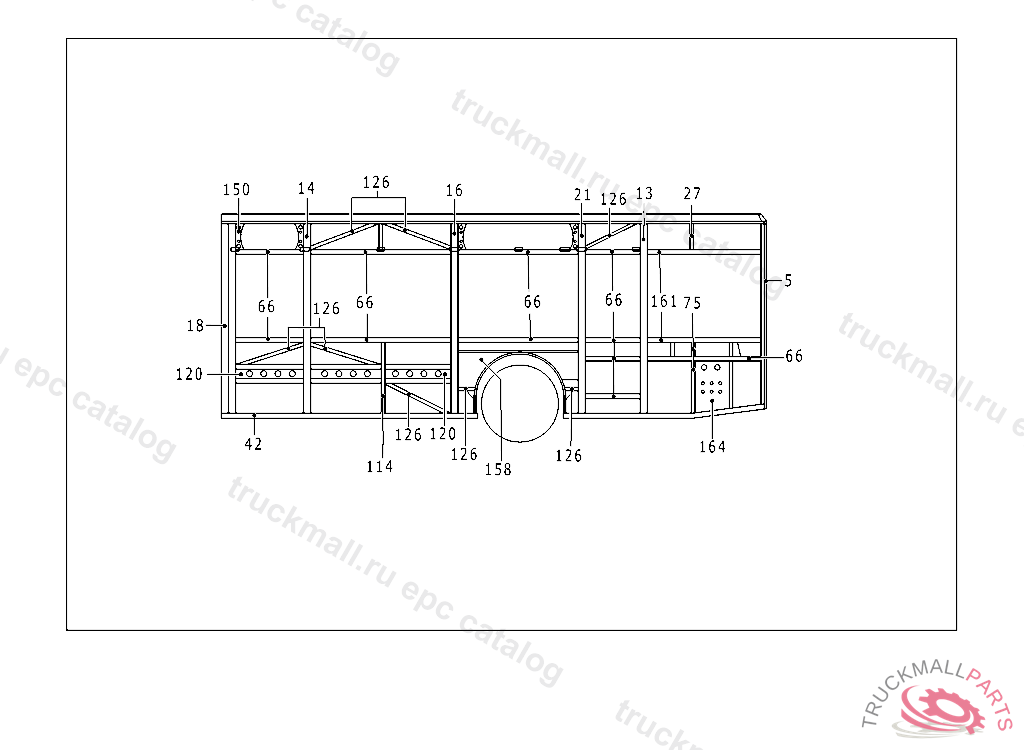

63 SIDE PANELS
›
330 REAR CARRIAGE FRAMEWORK,LEFT IL. 2
Mercedes A6286320105 - STREBE BL.11
O 530 GNUE3 EURO 3 628.248
63 SIDE PANELS - 330 REAR CARRIAGE FRAMEWORK,LEFT IL. 2
Поз.
Артикул
Описание
5
A6286310610
PILLAR PART REAR END
13
A6286310910
PILLAR PART
14
A6286301210
PILLARNO. 2
16
A6286301310
PILLAR
18
A6286300910
PILLARNO. 6
21
A6286301410
PILLARNO. 4
27
A6286302810
PILLAR
42
A6286302040
SUPPORT BOTTOM
66
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
75
A6286320105
STRUT , TO BE ADAPTED DURING ASSEMBLY
114
A6286310110
PILLAR PART
120
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
126
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
150
A6286341316
REINFORCEMENT TOP
158
A6286300027
PANELLING
161
A6286305140
SUPPORT
164
A6286300033
CONSOLE
