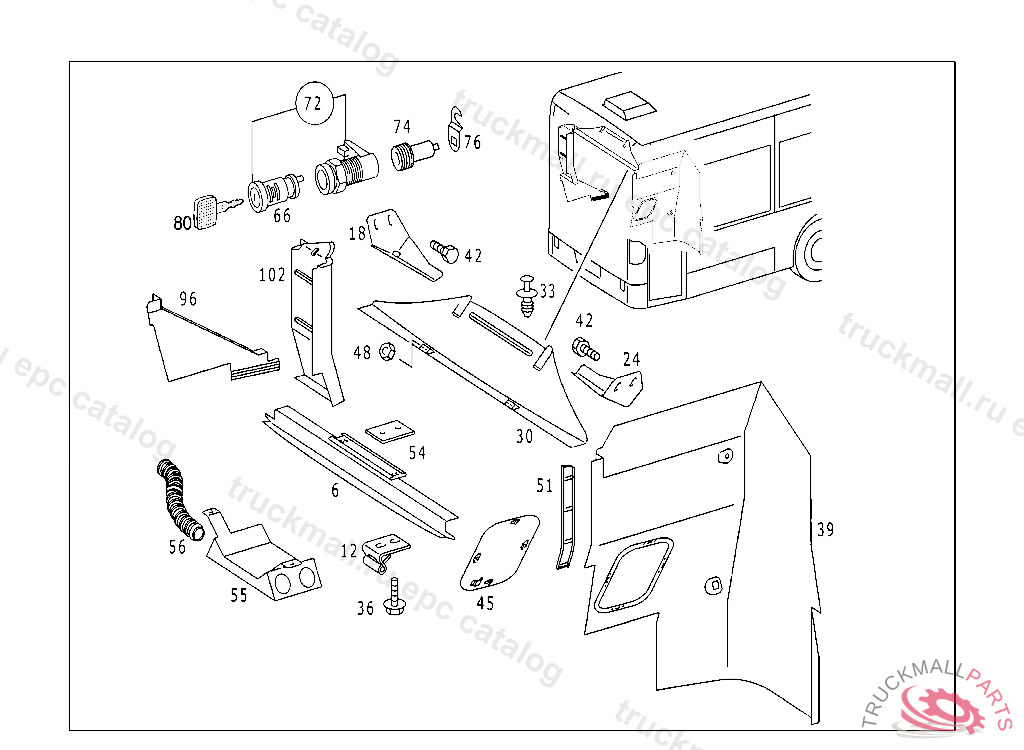

Поз.
Артикул
Описание
6
COVERING VEHICLE WIDTH 2550MM, NO.7358I.......I.......I I II
6
COVERING VEHICLE WIDTH 2550MM, NO.7358I.......I.......I I II
6
COVERING VEHICLE WIDTH 2500MM, NO.7358I.......I.......I I II
6
COVERING VEHICLE WIDTH 2550MM, NO.7358I.......I.......I I II
12
HINGE
30
FLAP VEHICLE WIDTH 2550 MM, WITH AIR CONDITIONER, NO.7E23I.......I.......I I II
30
FLAP , NO.7E23I.......I.......I I II
30
FLAP VEHICLE WIDTH 2500 MM, WITH AIR CONDITIONER, NO.7E23I.......I.......I I II
30
FLAP , NO.7E23I.......I.......I I II
30
FLAP VEHICLE WIDTH 2500 MM, NO.7E23I.......I.......I I II
30
FLAP , NO.7E23I.......I.......I I II
33
RIVET COVERING TO BRACKET
36
SCREW CLAMP MOUNTING M 6X16
42
SCREW PIPE ELBOW TO BRACKET M8X12
42
HEXAGON HEAD BOLT
42
SCREW SPEED SENSOR TO REAR AXLE
42
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
48
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
54
PLATE LENGTH, / WIDTH, 75/40 MM
55
HOUSING REAR END VENTILATION
56
HOSE827MM/48MM, TO BE ADAPTED DURING ASSEMBLY
66
TUMBLER. LOCK , THEFT-RELEVANT PART
72
FASTENER PIGEONHOLE
74
LOCK , STATE LOCK NUMBER WHEN ORDERING
76
LATCHTO A 000 988 56 60
76
LATCH
80
KEY FILLER CAP, STATE LOCK NUMBER WHEN ORDERING
96
PANELLING REAR LEFT, NO.7C01I.......I.......I I II
96
PANELLING REAR LEFT, NO.7C01I.......I.......I I II
96
PANELLING SINGLE GLAZING
96
PANELLING DOUBLE GLAZING
102
PANELLING
102
PANELLING DOUBLE GLAZING
102
PANELLING
102
PANELLING SINGLE GLAZING
999
LOCK
999
LATCH
