Mercedes A6288324015 - Труба отопителя

O 530 GNUE3 EURO 3 628.248

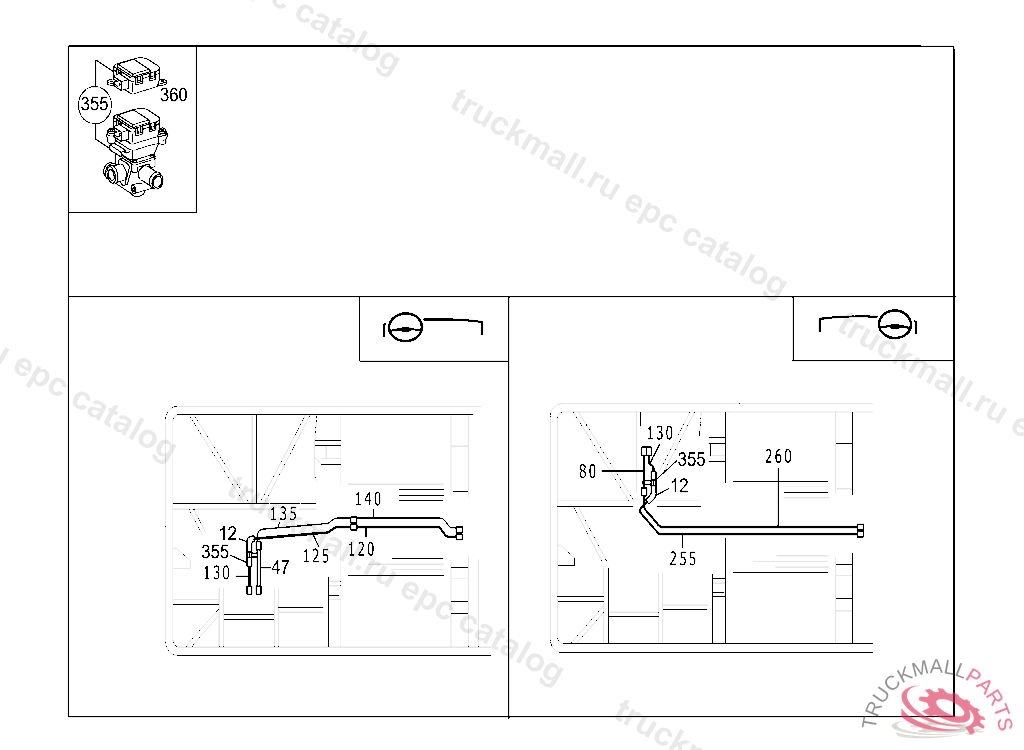

83 HEATING AND VENTILATION - 420 HEATING WATER LINE IL. 15

Поз.
Артикул
Описание
12
A3578320293
HOSE SILICONE 38 X 50 MM120°
12
A3058320523
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
12
A3564760026
HOSE PLASTIC PIPE
12
A3578321193
HOSE FEED TO FRONT END HEATER UNIT 22 X 30 MM120°
47
A6288300015
PIPE LINE RETURN 318 MM
120
A6288323715
PIPE LINE FEED 1145 MM
125
A6288323815
PIPE LINE FEED 1300 MM
130
A6288323915
PIPE LINE FEED 135 MM
135
A6288324015
PIPE LINE RETURN 1247 MM
140
A6288324115
PIPE LINE RETURN 1195 MM
355
A0008322172
VALVE , Replaced By: A0038305784
355
A0008322272
VALVE , Replaced By: A0038305684
355
A0038305684
VALVE 2/2 -WAY VALVE, Replaced By: A0048301884
355
A0038305784
VALVE THREE-WAY VALVE, Replaced By: A0048301684
355
A0048301884
VALVE 2/2 -WAY VALVE
355
A0048301684
VALVE THREE-WAY VALVE
360
A0068207842
SERVO-D.C. W.GEARBOX
360
A0068201142
ELECTRIC MOTOR , Replaced By: A0068207842
999
A3118305515
PIPE LINE
999
A6288306077
PIPE LINE
999
A6288322422
PIPE LINE
999
A6288322622
PIPE LINE
999
A6288327422
PIPE LINE
999
A6288329326
PIPE LINE
999
A6288329426
PIPE LINE
