Mercedes A6286301940 - ZB TRAEGER (S

O 530 GNUE3 EURO 3 628.248

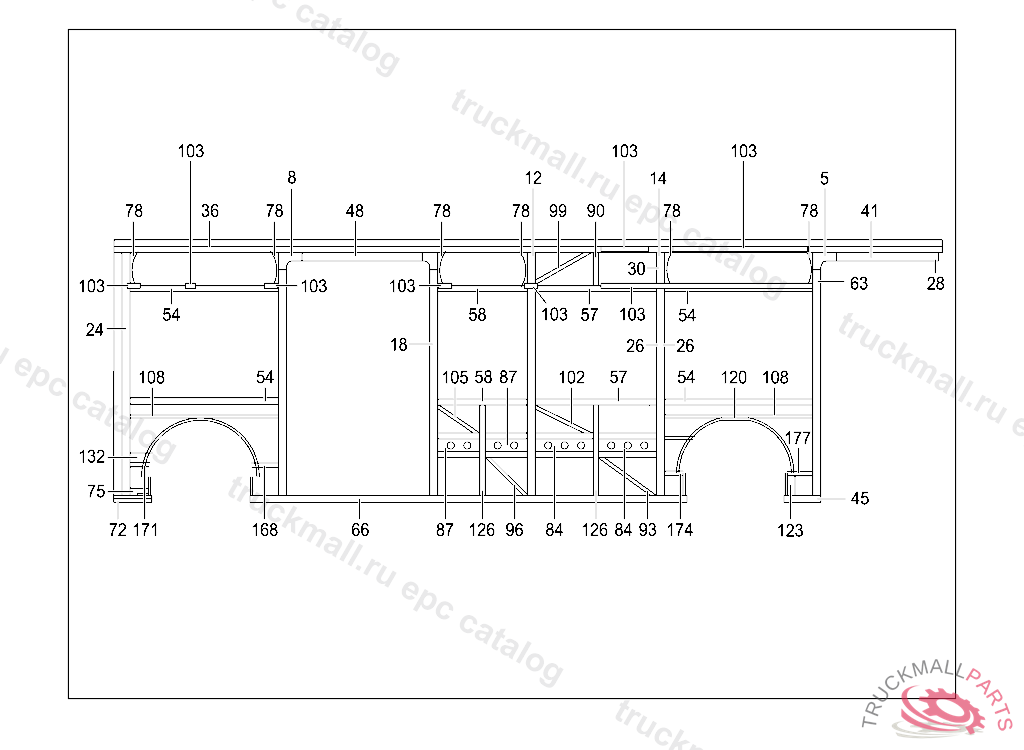

63 SIDE PANELS - 240 FRONT CARRIAGE FRAMEWORK,RIGHT IL. 1

Поз.
Артикул
Описание
5
A6286300110
PILLARNO. 1 + 5
12
A6286310910
PILLAR PART
14
A6286302510
PILLARNO. 2
14
A6286301210
PILLARNO. 2
18
A6286300210
PILLARNO. 2 + 3
24
A6286300910
PILLARNO. 6
26
A6286920034
SPRING
28
A3576220716
REINFORCEMENT
30
A6286020232
REINFORCEMENT
36
A6286301240
SUPPORT TOP
48
A6286300017
FRAME DOOR,TOP
54
A6286326440
BEAM. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
63
A6286021119
STRUT
66
A6286300840
SUPPORT BOTTOM
72
A6286301940
SUPPORT BOTTOM
78
A6286341316
REINFORCEMENT TOP
84
A6286327540
PART NAME MISSING. SUPPORT , TO BE ADAPTED DURING ASSEMBLY
90
A6286122473
RECTANGULAR TUBE. CROSS MEMBER , TO BE ADAPTED DURING ASSEMBLY
108
A6286321840
RECTANGULAR TUBE , A 628 632 18 40 RECTANGULAR TUBE 40 X 20 X 2 X 1590 MM TO BE ADAPTED DURING ASSEMBLY
120
A6286320230
WHEEL BOW
123
A6286310410
PILLAR PART , TO BE ADAPTED DURING ASSEMBLY
126
A6286310110
PILLAR PART
132
A6286340316
REINFORCEMENT
