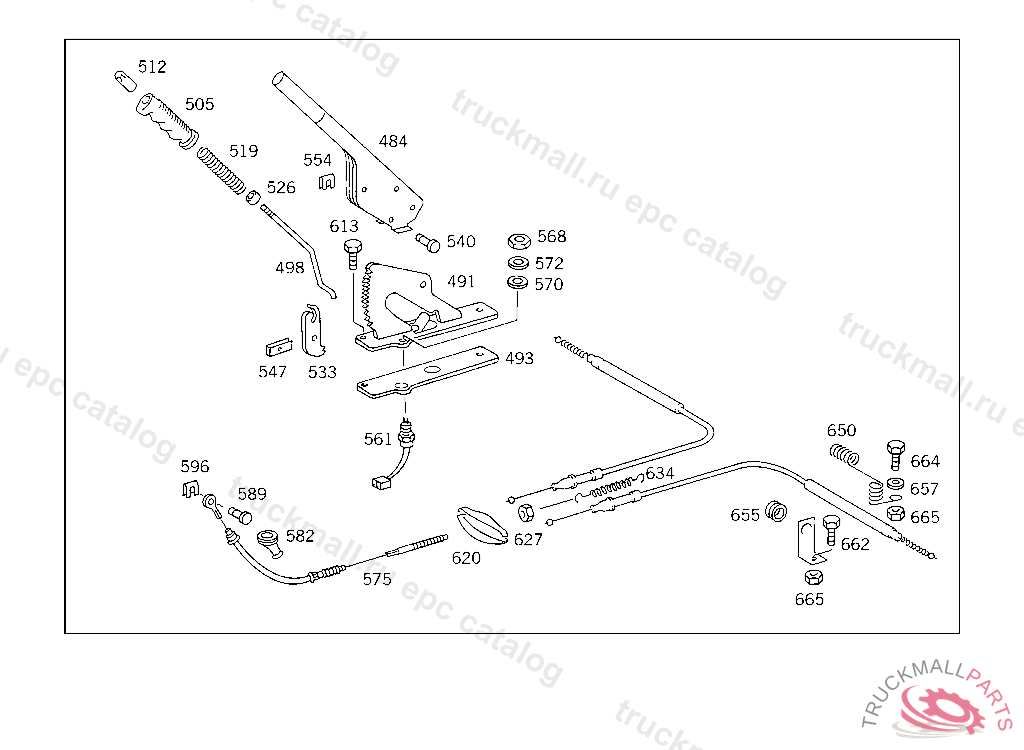

Поз.
Артикул
Описание
484
BRAKE LEVER ,107796, Replaced By: A6314201112, +001A6314201068
484
BRAKE LEVER ,107797
491
SUPPORT , Replaced By: A6314201068, +001A6314201112
491
SUPPORT ,042166
491
SUPPORT ,107797
493
GASKET
498
ROD
505
HANDLE HAND BRAKE LEVER
512
FASTENER BUTTON HAND BRAKE LEVER
519
SPRING HAND BRAKE LEVER
526
GROMMET PUSH ROD
533
PAWL HAND BRAKE LEVER
540
PIN BRAKE LEVER TO BEARING BRACKET
547
SHIM HAND BRAKE LEVER, FROM CHASSIS 276255-499999,AND FROM CHASSIS 597316
554
CLIP , Replaced By: N000000002965
561
SWITCH ,008900
568
NUT
570
WASHER FENDER BRACKET TO SIDE MEMBER
572
SEAL RING TO MOUNT FUEL LINES 16X22 - TO A 688 470 00 90
575
BRAKE CABLE
582
GROMMET BRAKE CABLE
589
PIN BRAKE LEVER TO BEARING BRACKET
596
CLIP , Replaced By: N000000002965
613
SCREW BRACKET TO SIDE MEMBER
665
NUT BRACKET TO SUPPORT AND TO END PIECE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: N000125008443
999
PLUG
999
ADHESIVE FOILTO 631 430 01 02
999
SENDER UNITTO 631 430 00 02
999
SCREW PLUGTO 631 430 00 02/01 02
999
VALVE
999
GASKET PEDAL ASSEMBLY
999
GASKET PEDAL ASSEMBLY
