TRAVEGO 17 SHD 3 - ACHSER
›
632.287
›
86 EMERGENCY EQUIPMENT
›
120 FIRE FIGHTING AGENT RESERVOIR IL. 2
Mercedes A6288600192 - ZB SCHLAUCHLEITUNG
TRAVEGO 17 SHD 3 - ACHSER 632.287

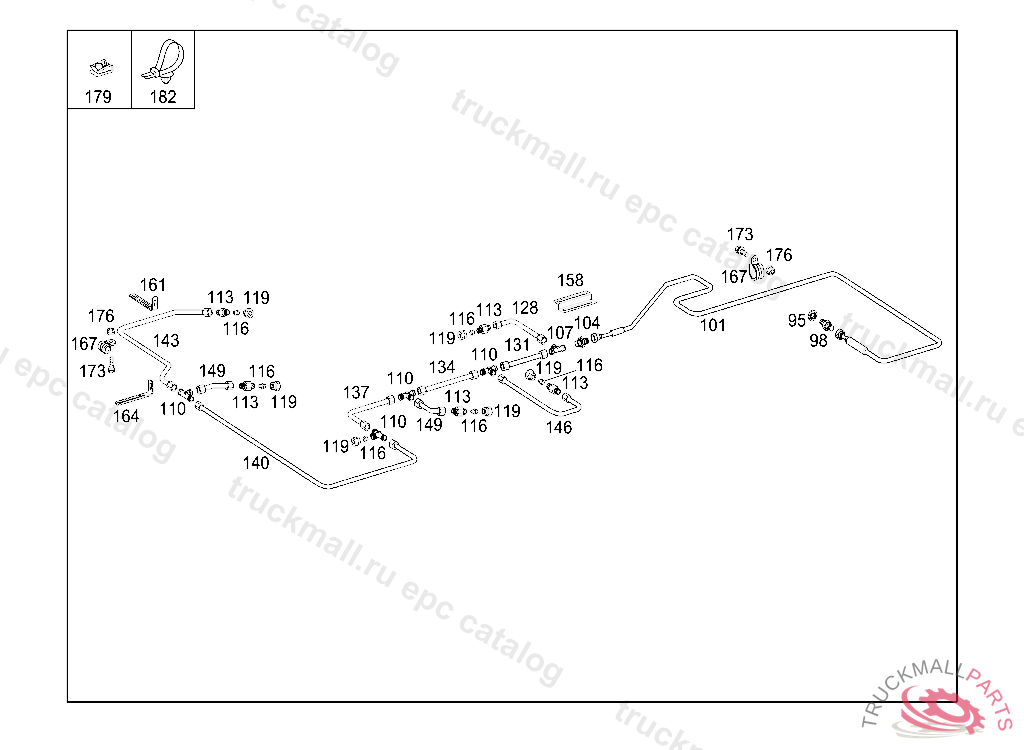

86 EMERGENCY EQUIPMENT - 120 FIRE FIGHTING AGENT RESERVOIR IL. 2
Поз.
Артикул
Описание
95
A0009971542
SEAL WASHER
98
A0009977975
THREADED UNION
101
A6288600192
HOSE
104
A0059971389
COUPLING
107
A0019974274
T-FITTING
110
A0019972374
T-FITTING
113
N000000006184
FITTING
116
A0008680245
SPRAY NOZZLE
119
A0019906554
NUTM 14 X 1,5AL
128
A6298602268
EXTINGUISHANT LINE
131
A6328601068
EXTINGUISHANT LINE
134
A6328601268
EXTINGUISHANT LINE
137
A6328601368
EXTINGUISHANT LINE
140
A6328601468
EXTINGUISHANT LINE
143
A6298602768
EXTINGUISHANT LINE
146
A6328601168
EXTINGUISHANT LINE
149
A6298601668
EXTINGUISHANT LINE
158
A6279850349
"Z" SECTION170MM
161
A6278320413
BRACKET
164
A6298321613
BRACKET
167
A0019950642
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
167
N000000007510
CLAMP LINE MOUNTING 8/15
167
N000000007515
CLAMP38/20
173
N910105008041
SCREW , Replaced By: N910143008000
173
N910105006004
SCREW , Replaced By: N914146006102
176
N910112006001
NUT , Replaced By: N913023006001
176
N910112008000
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
179
A0049941645
LOCK NUT. SPRING NUT MOUNTING PARTS
182
A0029972490
CABLE TIE310X5MM
999
A6325461543
BRACKET
