Mercedes A6324760226 - LU KRAFTSTOFFSCHLAUC

TRAVEGO 17 SHD 3 - ACHSER 632.287

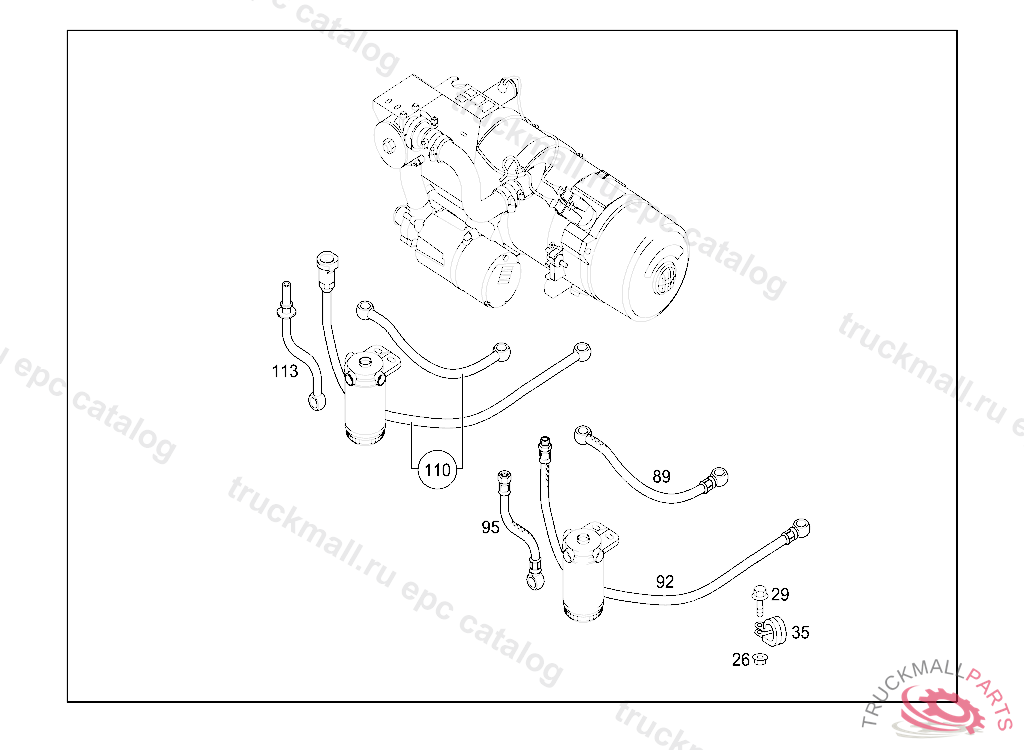

47 FUEL SYSTEM - 060 FUEL LINES AND BREATHING IL. 9

Поз.
Артикул
Описание
26
N910112006001
NUT , Replaced By: N913023006001
29
N910105006006
SCREW BRACKET AND CLAMP M6X20
29
N910105006012
SCREW. HEXAGON HEAD BOLT BATTERY AND ENGINE CABLE HARNESSES TO BRACKET M6X40
35
N000000000319
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
35
N000000000320
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
35
N000000000321
CLAMP
35
N000000007510
CLAMP LINE MOUNTING 8/15
35
N000000007512
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
35
N000000007511
CLAMP10/15
35
N000000000322
CLAMP14/15
89
A6324760326
FUEL HOSE
92
A6324760226
HOSE
92
A0004761375
FUEL HOSE
95
A0004762275
FUEL HOSE , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2011 UP TO PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS) 30.04.2012
95
A0004761175
FUEL HOSE
