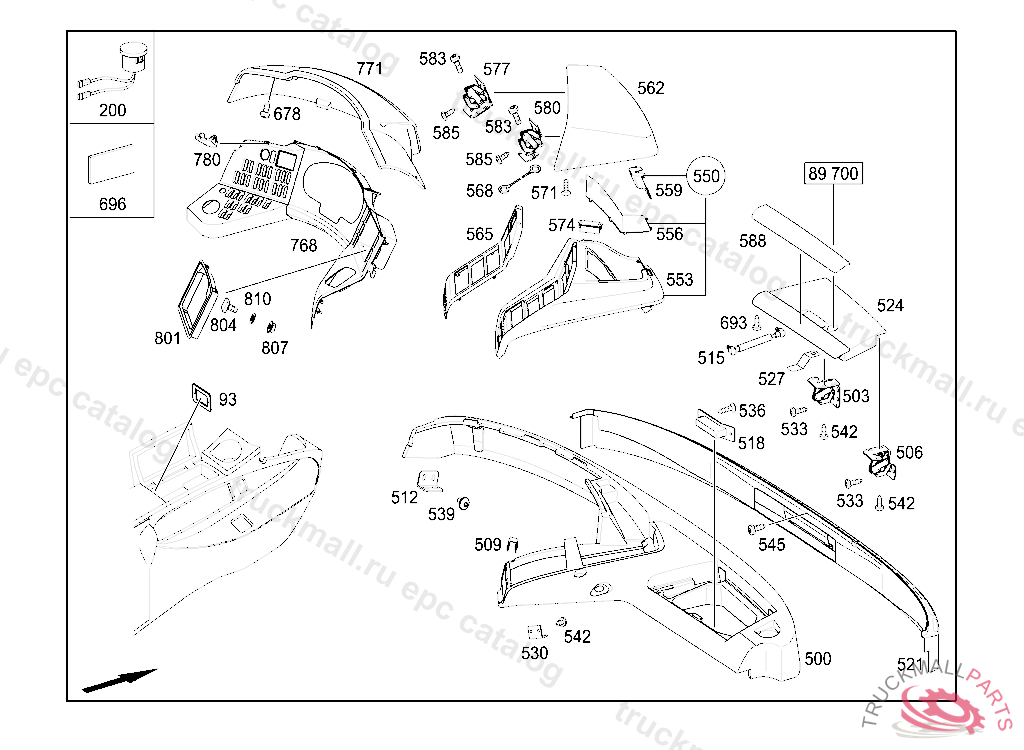

TRAVEGO 17 SHD 3 - ACHSER 632.287

68 PANELLING AND LINING - 330 INSTRUMENT PANEL IL. 4

Поз.
Артикул
Описание
93
A6326870611
FASTENING PLATE
200
A6328200110
REED CONTACT SWITCH
500
A6326805380
COWLING COCKPIT AREA
503
A0009930969
CUP HINGE LEFT
506
A0009931069
CUP HINGE RIGHT
509
A6326871612
ATTACHMENT ANGLE BRACKET
512
A6326874812
ANGLE
515
A6329800064
SPRING
518
A6327580349
FALLING LATCH
521
A6328302323
AIR DUCT
524
A6326803007
COVERING DEEP FREEZER
527
A6329880743
LATCH TONEUE
530
A6326880814
BRACKET
533
N000000000447
TAPPING SCREW BRACKET MOUNTING
536
N000000000477
TAPPING SCREW3,5X16MM
539
N000000000520
TAPPING SCREW BRACKET TO SUPPORT
542
N000000000446
TAPPING SCREW BRACKET TO CAB FLOOR 3.5X9.5
545
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
550
A6326801017
MOLDING FOR SWITCH FASHION
550
A6326800917
MOLDING FOR SWITCH FLAIR
553
A6326800717
COVERING FASHION
553
A6326800617
COVERING FLAIR
556
A6326830010
COVER FLAIR
556
A6326830110
COVER FASHION
559
A6326892608
COVERING FLAIR
559
A6326892908
COVERING FASHION
562
A6326800096
COVER
565
A6326801755
BEAM FASHION
565
A6326801955
BEAM FLAIR
568
A6329880275
HOLDING ROPE
571
N000000001474
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M6X10, Replaced By: A0019844329
574
A0006890603
MAGNET
577
A0009930969
CUP HINGE LEFT
580
A0009931069
CUP HINGE RIGHT
583
N000000001946
HEXALOBULAR BOLT CAN NEUTRAL POINT ON EQUIPMENT PLATE M4X12,V 202043
585
N000000000492
TAPPING SCREW
588
A6326890070
HANDLE FASHION
588
A6326890170
HANDLE FLAIR
678
N000000000452
TAPPING SCREW WIRE CABLE TO CAB 4.2X9.5
693
N000000000454
TAPPING SCREW SIDE REFLECTORS,K 057592
696
A0019835610
FELT STRIP SELF-ADHESIVE 15X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
768
A6326801655
INSTRUMENT MOUNT
768
A6326801355
INSTRUMENT MOUNT
771
A6326802207
COVERING
780
A6329980121
COVER CAP
801
A6326892308
COVERING
804
A6329900008
T-SCREW
807
N910112005000
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
810
N000125005330
WASHER BRACKET TO BATTERY CASE BRACKET
