Mercedes A0005450171 - RAENDELSCHRAUBE

TRAVEGO 17 SHD 3 - ACHSER 632.287

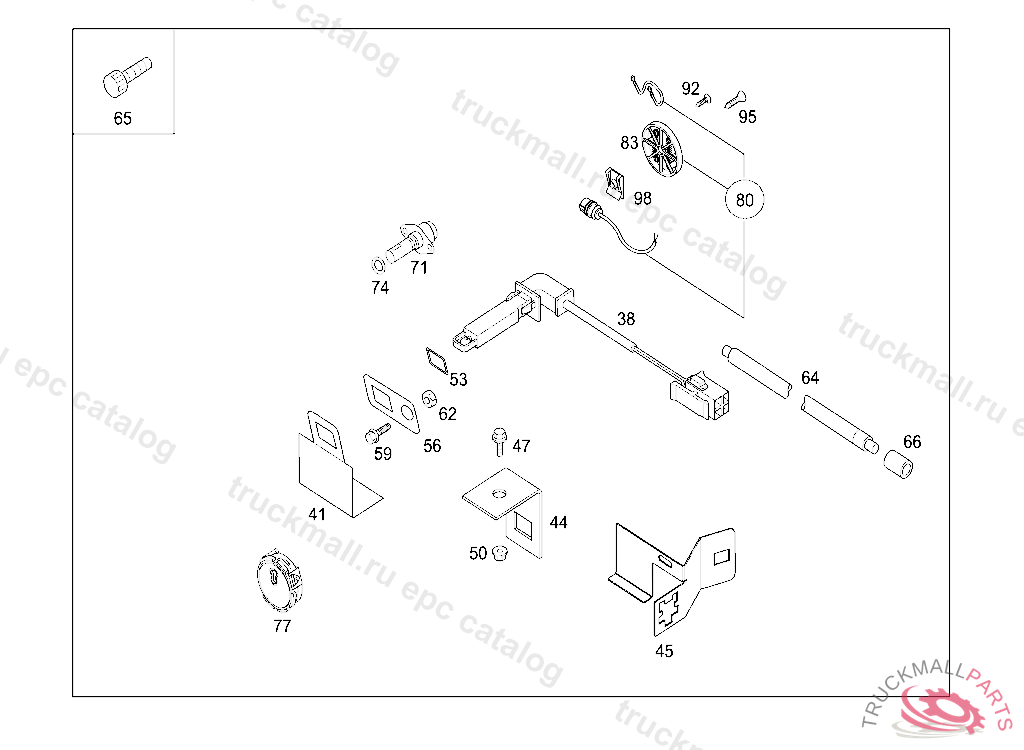

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 455 PRESSURE SWITCH, TRANSMITTER AND SENSORS IL. 2

Поз.
Артикул
Описание
38
A0078200810
TEMPERATURE SENSOR
41
A0008212914
BRACKET GLUED VERSION
44
A6326950614
BRACKET SCREWED
45
A0008214614
BRACKET TEMPERATURE SENSOR
47
N910105006002
HEXAGON HEAD BOLT
50
N913012008000
NUT BATTERY NEG. POLE
50
N913012006001
NUT CLAMP TO BRACKET
50
N913012010001
NUTM10
53
A0269977048
SEAL RING
56
A0008213014
BRACKET
59
N910105008026
SCREW BRACKET TO CAB REAR PANEL M 8X20
59
N000000002925
HEXALOBULAR BOLT FASTENING RADIO SET 4X12
62
N910104004000
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
64
A0005463901
ELECTRICAL CABLE. ELECTRIC CABLE1X50MM2, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
65
A0005450171
SCREW
66
A0009970581
GROMMET5.0 MM
71
A0071531128
TEMPERATURE SENSOR MOISTURE TEMPERATURE SENSOR
74
A1029970045
SEAL RING12X2
77
A9305400145
RAIN/LIGHT SENSOR RAIN/LIGHT SENSOR
80
A4445400145
SWITCH ENGINE COMPARTMENT FIRE DETECTION
83
A0135422517
THERMAL CONTACT. SENDER UNIT FIRE-ALARM SYSTEM
92
N000000000461
TAPPING SCREW MOUNTING PARTS 4.8X16
95
A0039908412
HEX. SKT. CAP BOLTM5X16MM
98
A0019907291
CLIP FASTENERM5
