Mercedes A0006830006 - MONTAGERAHMEN

TRAVEGO 17 SHD 3 - ACHSER 632.287

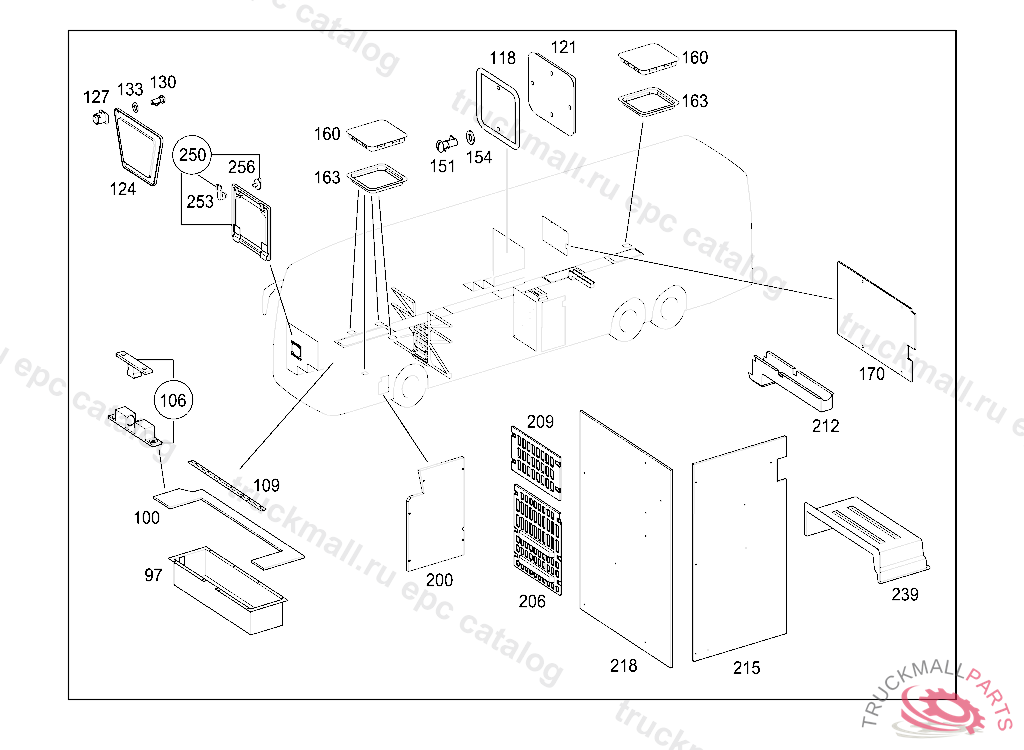

68 PANELLING AND LINING - 270 FLOORING,FLOOR FLAPS IL. 5

Поз.
Артикул
Описание
97
A6326800558
RECESS
100
A6326845964
FLOOR FLAP
106
A0009883063
SNAP LOCK
109
A0006840152
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
160
A0006800323
SERVICING COVER
163
A0006830006
FRAME
170
A6326840126
COVER UREA PUMP
200
A6326820216
COVERING
206
A6296860407
COVERING CROSS MEMBER 4
209
A6296860707
COVERING AT CROSS MEMBER 4
212
A6326840777
COVER WATER PIPES
215
A6326840018
COVERING LUGGAGE COMPARTMENT, UNTIL PRODUCTION BREAKPOINT DATE 29.11.2006
218
A6326840118
COVERING LUGGAGE COMPARTMENT, UNTIL PRODUCTION BREAKPOINT DATE 29.11.2006
239
A6298661630
COVERING
250
A6296801607
CLOSING COVER
253
A0009980695
ROTARY CATCH
256
A0009980595
ROTARY CATCH
