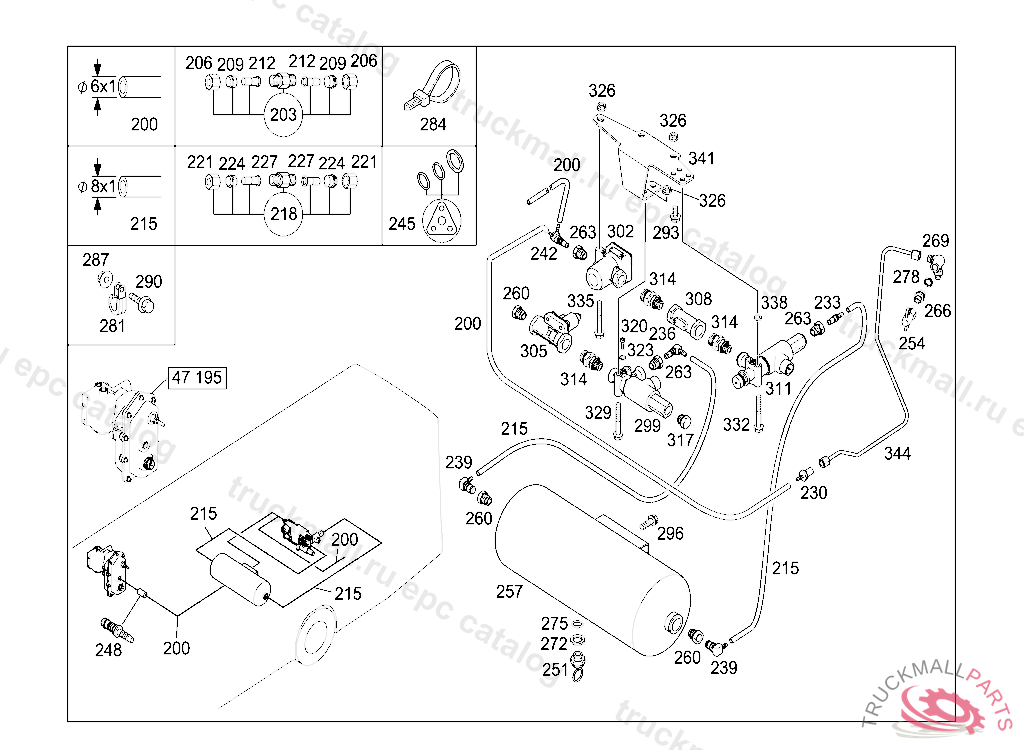

Поз.
Артикул
Описание
200
PLASTIC PIPE RISING PIPE 4X6 MM
203
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
206
UNION NUT
209
GLAND , Replaced By: A0019901667
212
SLEEVE LEAK LINE
215
PLASTIC PIPE AERATION, ORDER BY THE METER
218
FITTING (PARTS KIT),LINE RUPTURE
221
UNION NUT LINE CONNECTION
224
GLAND LINE CONNECTION
227
SLEEVE LINE CONNECTION
230
FITTING , Replaced By: N915059004001
233
COUPLING CONNECTOR. CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 6MM, VOSS 232
233
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M16, 6MM, VOSS 232, Replaced By: A0049976989
236
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232, Replaced By: A0059972689
236
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 6 MM, VOSS 232
239
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 6 MM, VOSS 232
242
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 4 MM / 4 MM, VOSS 232
245
REPAIR KIT O-RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, VOSS 232
248
CONNECTION PIECE COMPRESSED-AIR-LINE PLUG-CONNECTION TO M10, 4MM, SDF
248
CONNECTION PIECE , Replaced By: A0049971489
251
VALVE DRAIN VALVE
254
TEST CONNECTION
257
RESERVOIR
260
RETAINING SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M22, VOSS 232
260
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
263
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
266
FITTING
269
L-FITTINGM12X1.5/M10X1.5
272
THRUST RING CHECK VALVE TO AIR RESERVOIR
275
O-RING CHECK VALVE TO AIR RESERVOIR
278
SEAL RING 3/2-WAY VALVE
281
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
281
CLAMP LINE MOUNTING 8/15
281
CLAMP6/15, Replaced By: N000000007509
281
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
284
LOOM TIE OXYGEN SENSOR CONNECTION
287
NUT , Replaced By: N913023006001
290
SCREW BRACKET AND CLAMP M6X20
293
SCREWM 10X20
296
HEXAGON HEAD BOLT. SCREW FRONT EXHAUST PIPE TO BRACKET
299
3-2-WAY PNEUMATIC VALVE
299
SOLENOID VALVE 3/2-WAY VALVE ADBLUE
302
VALVE PRESSURE LIMIT VALVE
305
VALVE OVERFLOW VALVE ADBLUE, 7.03,V 207570V 208680
308
NON-RETURN VALVE CHECK VALVE
311
VALVE (3/2-WAY SOLENOID VALVE)
314
STRAIGHT BULKHEAD FITTING WITH O-RING M22X1.5/M16X1.5
317
SCREW PLUG SOLENOID VALVE M16
320
SCREWM6X12 TX30
323
SEAL RINGBOSCH
326
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
329
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
329
SCREW 3/2-WAY VALVE TO BRACKET
332
SCREWM6X65
332
HEXALOBULAR BOLT TRAVEL SENSOR TO BRACKET,K 186868
335
SCREW , Replaced By: N910143008009
335
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
338
SPACER WASHER AT CONSOLE
341
BRACKET
344
LINE
