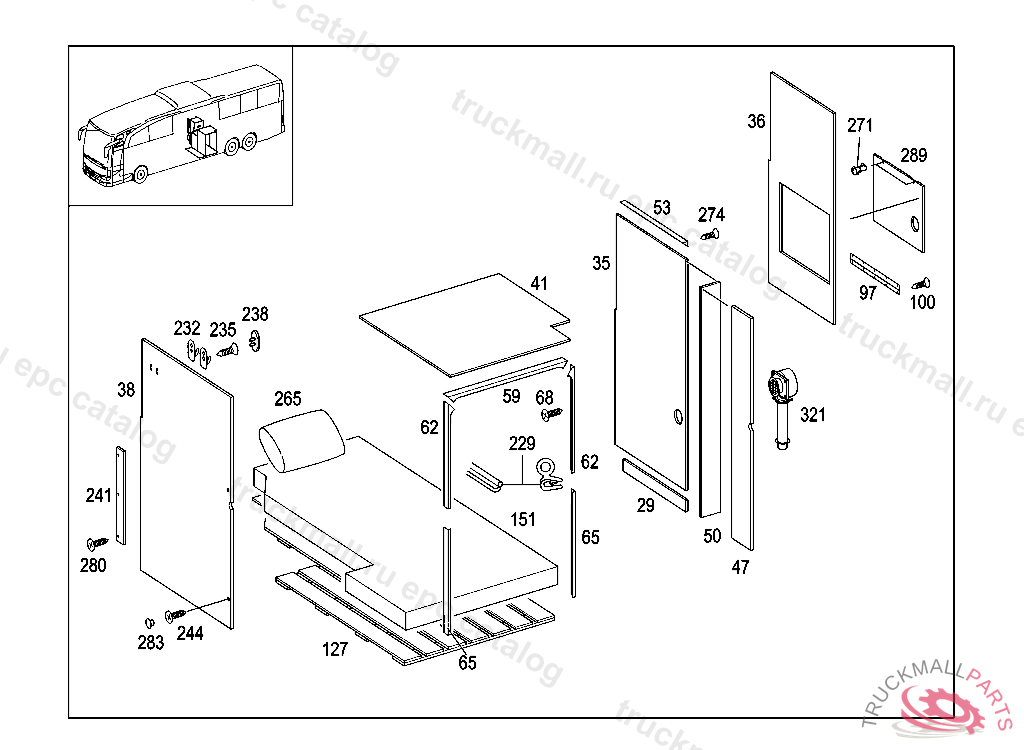

Поз.
Артикул
Описание
29
LEDGE
35
SIDE PART , UNTIL PRODUCTION BREAKPOINT DATE 17.01.05
36
SIDE PART , AS OF PRODUCTION BREAKPOINT DATE 18.01.05
38
SIDE PART
41
UPPER PART
47
COVERING
50
COVERING
53
LEDGE
59
ANGLE
62
ANGLE LEFT
62
ANGLE RIGHT
65
ANGLE LEFT
68
TAPPING SCREW3,5X13
97
HINGE STRAP32X0.7-3550MM, TO BE ADAPTED DURING ASSEMBLY
100
TAPPING SCREW3,5X13
100
TAPPING SCREW2.9X16
127
INTERMEDIATE LAYER
151
BUNK MATTRESS , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
229
RUBBER SEAL
229
RUBBER SECTION DRIVER'S BUNK, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
232
CLOTHES-HOOK (CLOTHES-HOOK), NO.5C37 I........I........I........I........I
235
TAPPING SCREW SIDE REFLECTORS,K 057592
238
COVERING , NO.7C01 IINO.8316 IIII
241
PLATE
244
TAPPING SCREW2,9X9,5
265
ADDITIONAL PILLOW , STATE COLOR WHEN ORDERING STATE IDENT NO. WHEN ORDERING
271
FASTENER SUPERFIX
274
TAPPING SCREW. SCREW FASTENING SOLONOID SWITCH 3.5X32MM
280
TAPPING SCREW CENTRAL HOUSING TO BRACKET 3.5X22,F 029921
283
FASTENER BUTTON BALL
289
FLAP
321
FAN
999
COVER , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
999
COVER , DETERMINE COVER FABRIC VIA VEDOC "NFC 5117"
