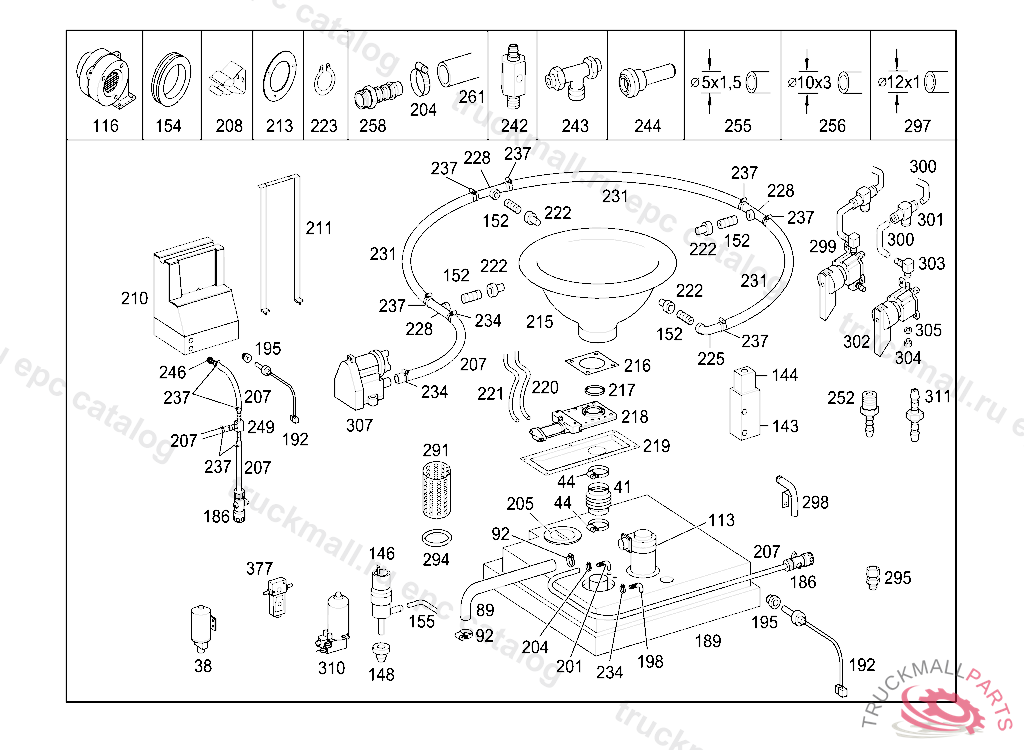

Поз.
Артикул
Описание
38
VALVE CONTROL STOP
41
HOSE RUBBER BOOT
44
CLAMP INTAKE MUFFLER TO BRACKET 90-110X12
89
HOSE
92
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
113
BLOWER SOIL VENT
116
IMPELLER BLOWER24V
143
VALVE COMPLETE
144
VALVE (SOLENOID VALVE)
146
CIRCULATION PUMP , Replaced By: A0008606226
146
CENTRIFUGAL PUMP , AS OF PRODUCTION BREAKPOINT (DISCONTINUATION DATE FOR BCS)01.12.2008
148
SEAL PUMP TO RESERVOIR
152
GROMMET
154
WASHER
155
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
155
PLASTIC PIPE RISING PIPE 4X6 MM
186
CONTROL STOP. FASTENER CONTROL STOP
189
RECEPTACLE FECES CONTAINER
192
SWITCH WASHER WATER LEVEL SENDER UNIT
195
GROMMET
198
FITTING. ANGLE ANGULAR SCREW FITTING 19 R3/4"
201
ANGLE. FITTING ANGULAR SCREW FITTING 12/R1/2
204
CLAMP20-32
205
COVERING FECES CONTAINER
207
HOSE PVC 13X3, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
208
CLIP FOR STAY, 393.311 UP TO IDENT NO.: 4 450302,393.321 UP TO IDENT NO.: 4 453073,395.312,322 UP TO IDENT NO.: 4 426005
210
WATER CONTAINER
211
RETAINING STRAP
213
SEAL
215
WC FLUSHING TRAY
215
WC FLUSHING TRAY
216
ADAPTER
216
ADAPTER
217
SEAL RING
218
SLEEVE VALVE FECES DRAIN CONTROL
218
SHUTOFF SLIDE
219
COVERING
220
HOSE BLUE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
221
HOSE NATURAL, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
222
NOZZLE FLUSHING NOZZLE
223
SNAP RING FLUSHING NOZZLE
225
FITTING ANGULAR SCREW FITTING 8 R1/4"
228
FITTING T SCREW-IN FITTING
231
HOSE COMPRESSED AIR HOSE, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
234
CLAMP12-22
237
CLAMP8-16
242
FITTING ANGULAR SCREW FITTING
242
CONNECTION FITTING
243
T-FITTING
243
DISTRIBUTOR FOR HOSE 6 MM
244
PLUG
246
FITTING SCREW-IN FITTING 12/R1/2
249
T-FITTING CONNECTION FITTING
252
FITTING SCREW-IN FITTING 6/R1/4
255
HOSE5X1,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
256
HOSE TRANSPARENT PVC WITH FABRIC, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
258
FITTING SCREW-IN FITTING 25/R1
261
HOSE TRANSPARENT PVC WITH FABRIC 25 X 4,5, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
261
BRAIDED HOSE19 X 4, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
291
STRAINER
294
SEAL SEWAGE FILTER
295
SEAL CONE
297
TUBE
298
PIPE PIECESPUEHLROHR KPL.WC/CC
299
DRAIN VALVE , Replaced By: A0008661152
299
DRAIN VALVE
300
HOSE EVACUATION 6X1MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
301
DISTRIBUTOR FOR HOSE 6 MM
302
VALVE
303
ANGLE SCREW-IN FITTING EVACUATION
304
SCREW-IN FITTING EVACUATION
305
SEALING RING EVACUATION
307
WATER PUMP WATER FLUSH
307
WATER PUMP WATER FLUSH, Replaced By: A0008603826
307
PUMP CHEMICAL FLUSH
310
PUMP FECES
311
FITTING REDUCTION FITTING
999
SEAL
999
SHAPED SECTIONPVCH - PROFIL GEBOGEN
999
LOCKKASTEN
999
COMPRESSED AIR LINE
999
FASTENER
999
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
999
SEALMOOSGUMMIRING
999
SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
