Mercedes A6326901541 - ZB Verkleidung Rueck

TRAVEGO 17 SHD 3 - ACHSER 632.287

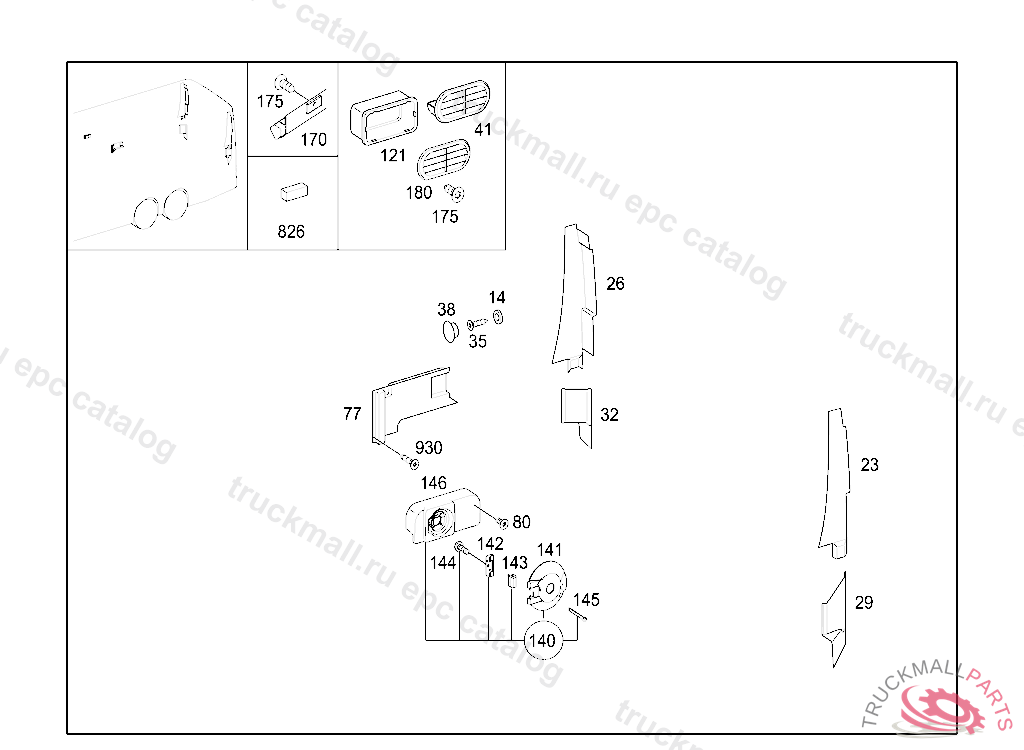

69 COVERING AND LINING - 030 INTERIOR PANELLING IL. 3

Поз.
Артикул
Описание
14
N000000003738
WASHER4MM
23
A6326901541
PANELLING REAR END,TOP LEFT
26
A6326941125
PANELLING REAR END,TOP RIGHT
29
A6326941225
PANELLING REAR END,BOTTOM LEFT
32
A6326941325
PANELLING REAR END,BOTTOM RIGHT
35
A0019904936
SHEET METAL SCREW3.5X22 T20
38
A0009877045
LOCKING CAP
41
A6326900207
COVERING
77
A6296920022
COVERING
80
A6326920116
REINFORCEMENT
121
A3568300066
AIR BAFFLE
140
A6326900248
COVER , AS OF PRODUCTION BREAKPOINT DATE 13.03.2012
140
A6296901340
PANELLING , UNTIL PRODUCTION BREAKPOINT DATE 12.03.2012
141
A3566910027
COVER
142
A3016910335
SPRING
143
A3016910021
MOUNTING
144
N000000000447
TAPPING SCREW BRACKET MOUNTING
145
N000094002063
COTTER PIN , UP TO IDENT NO. A 029714 AND UP TO TRANSMISSION 017740
146
A6296926601
PANELLING
170
A6326900455
COVER STATE SIZE WHEN ORDERING
175
N000000002027
TAPPING SCREW2,9X9,5
180
A6326920522
COVERING
826
A3576160190
SPACERTO 613 640 11 09/12 09
930
N000000000478
TAPPING SCREW3.5X19
