Mercedes A6328104054 - LU HALTEGRIFF / COCK

TRAVEGO 17 SHD 3 - ACHSER 632.287

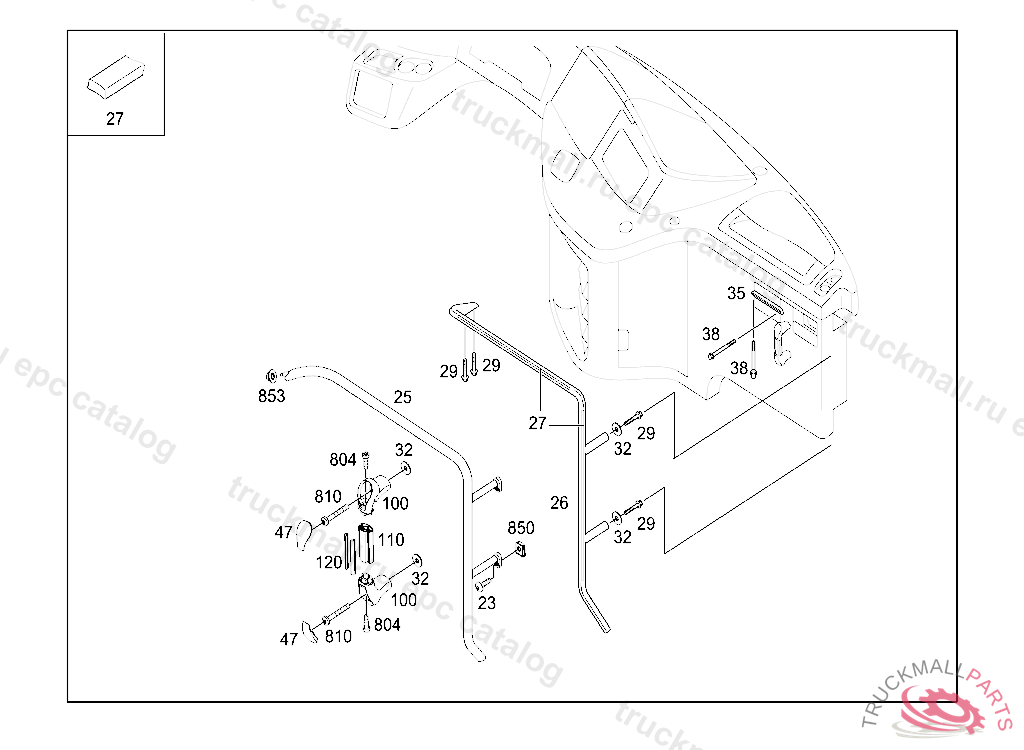

81 APPOINTMENTS - 250 GRAB HANDLE IL. 1

Поз.
Артикул
Описание
23
A0009901729
SCREWM8X40
23
A0009901829
SCREWM8X75T40
23
A0009901629
SCREW, SPECIAL SHAPEM8X28
23
A0009901929
SCREWM8X45
25
A6328104054
GRAB HANDLE
32
N000000003250
WASHER BRACKET TO CAB REAR PANEL
47
A6329190120
COVERING
100
A0009800041
END PIECETO A 632 810 03 54
110
A6328150036
METAL SECTIONTO A 632 810 03 54, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
120
A6329110597
INSERT , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
804
A0029908022
BOLT. SCREWM8X30MM
804
A0009902111
SCREWM8 X 25 MM / TO A 632 810 03 54
810
N000000001155
HEXALOBULAR BOLTM8X60
810
N000000003123
HEXALOBULAR BOLT
810
N000000001153
HEXALOBULAR BOLT
850
A0049941845
SPRING-THREAD NUT PROTECTIVE PLATE
853
N000000006038
NUT-AND-WASHER ASSEMBLY RUBBER MOUNTING TO FRAME M8
