Mercedes A6345010322 - Halter
IBC FAHRGESTELL 2-ACHSER 634.200
50 RADIATOR - 340 COOLING WATER HOSES AND LINES IL. 7

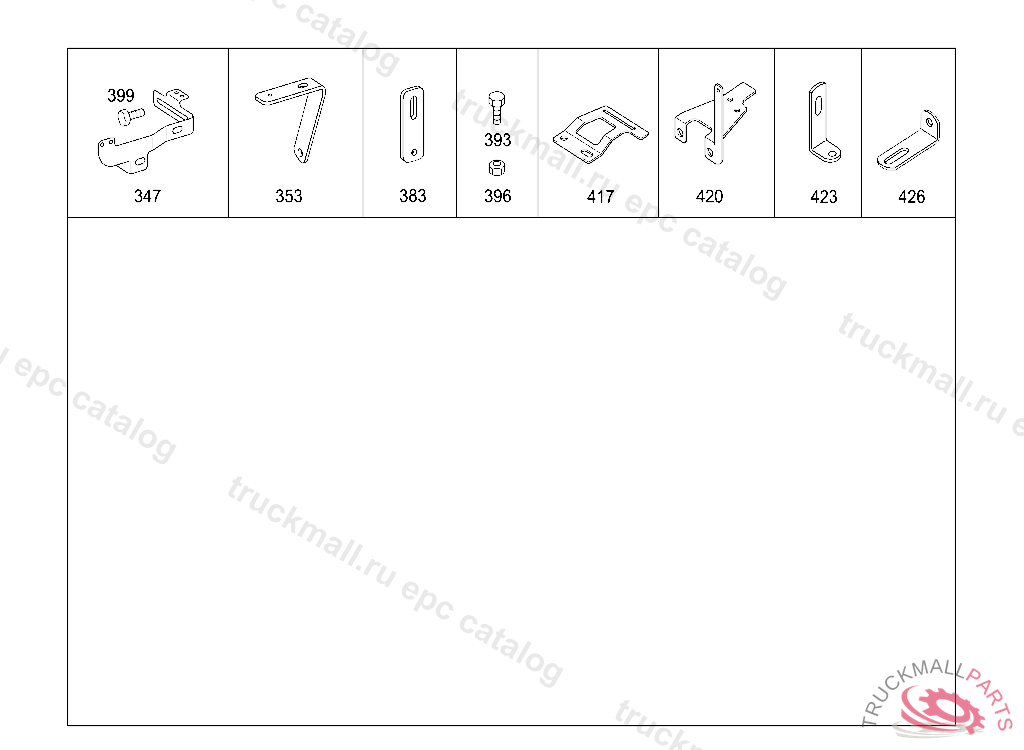

Поз.
Артикул
Описание
347
A6345010222
BRACKET
353
A6345010322
BRACKET
383
A6325010322
BRACKET
393
N910105012015
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M12X45
396
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
399
N000000005515
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
399
N910105014007
SCREW. HEXAGON HEAD BOLT BRACKET MOUNTING M14X1.5X25,V 207570
417
A6345010422
BRACKET
420
A6345010522
BRACKET
423
A6294310940
BRACKET
426
A6298320213
BRACKET
999
A0008210081
TEMPERATURE SENSOR RETARDER TEMPERATURE
999
A0009871437
MOLDED HOSE 45-DEGREE ARC 50MM
999
A0015010082
HOSE , Replaced By: N000000004925
999
A0015010182
HOSE440MM, Replaced By: N000000004931
999
A0015010282
HOSE , Replaced By: N000000004936
999
A0015015182
MOLDED HOSE 45-DEGREE ARC 50MM
999
A0019970074
T-FITTING
999
A0019972883
CONNECTOR
999
A0089976272
CONNECTION FITTING
999
A6569970049
GASKET
999
A6569970072
FITTING. CONNECTION PIPE SOCKET
999
N000000004925
HOSE10X19X240MM, TO BE ADAPTED DURING ASSEMBLY
999
N000000004931
HOSE10X19X440MM
999
N000000004936
HOSE670LG
