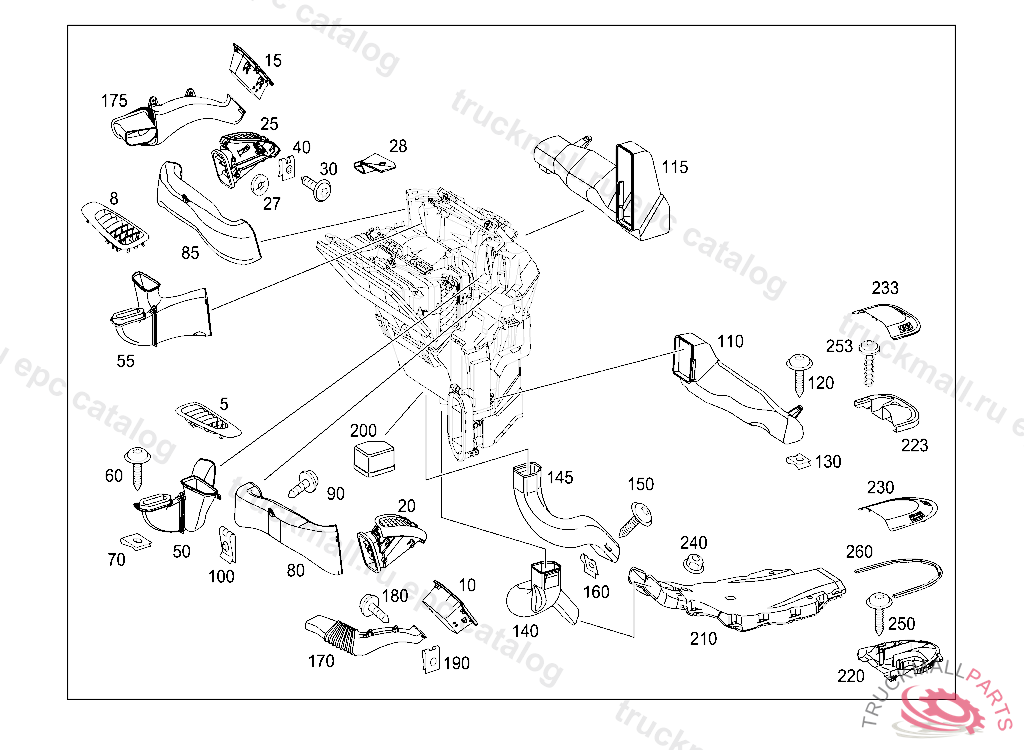

Поз.
Артикул
Описание
5
AIR NOZZLE DEFROSTER LEFT, WINDSHIELD
5
NOZZLE DEFROSTER LEFT, WINDSHIELD, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.368713720110915 9B51018 QFT639A1004 ANTHRACITE, Replaced By: A6398310000
8
NOZZLE DEFROSTER RIGHT, WINDSHIELD, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. D803125020130506 9B51QFT636A1004 ANTHRACITE, Replaced By: A6368310100
8
AIR NOZZLE DEFROSTER RIGHT, WINDSHIELD
10
NOZZLE DEFROSTER LEFT, MIRROR FIELD, Replaced By: A6368310200
15
NOZZLE DEFROSTER RIGHT, MIRROR FIELD
20
NOZZLE LATERAL OUTSIDE LEFT, Replaced By: A6368300300
25
NOZZLE LATERAL OUTSIDE RIGHT
27
WASHER ORNAMENTAL COVER TO ENTRANCE
28
BRACKET MOUNTING, NOZZLE, 9B51018 QFT639A1004 ANTHRACITE
30
SHEET METAL SCREW BRACKET TO FIRE WALL
40
LOCK BRACKET TO CROSS MEMBER
50
PANELING DEFROSTER LEFT
55
PANELING DEFROSTER RIGHT
60
SHEET METAL SCREW BRACKET TO FIRE WALL
70
LOCK BRACKET TO CROSS MEMBER
70
FUSE FASTENER, INSTRUMENT PANEL, BOTTOM ATINSTRUMENT PANEL, TOP
80
DUCT LEFT AIR DUCT
85
DUCT RIGHT AIR DUCT
90
SHEET METAL SCREW BRACKET TO FIRE WALL
100
FUSE FASTENER, INSTRUMENT PANEL, BOTTOM ATINSTRUMENT PANEL, TOP
110
DUCT LEGROOM,LEFT
115
DUCT LEGROOM,RIGHT
120
SHEET METAL SCREW BRACKET TO FIRE WALL
130
LOCK BRACKET TO CROSS MEMBER
140
DUCT CENTRAL LEFT, 12448820050126 17613320050902
140
DUCT CENTRAL LEFT, 12448720050126
140
DUCT CENTRAL LEFT,375357520120530
145
DUCT CENTRAL RIGHT, 17613420050902375357420120530
145
DUCT CENTRAL RIGHT, 12448820050126 17613320050902
145
DUCT CENTRAL RIGHT, 12448820050126 17613320050902
145
DUCT CENTRAL RIGHT, 17613420050902375357420120530
150
SHEET METAL SCREW BRACKET TO FIRE WALL
160
FUSE FASTENER, INSTRUMENT PANEL, BOTTOM ATINSTRUMENT PANEL, TOP
170
DUCT DEFROSTER LEFT, MIRROR FIELD
175
DUCT DEFROSTER RIGHT, MIRROR FIELD
180
SHEET METAL SCREW BRACKET TO FIRE WALL
190
LOCK BRACKET TO CROSS MEMBER
200
COVER HEATER PLUG, LEFT
200
COVER HEATER PLUG, RIGHT
210
AIR DUCT FRONT FLOOR,357677620100901375357420120530
210
AIR DUCT FRONT FLOOR,360347120100901
220
NOZZLE LOWER PART
223
NOZZLE LOWER PART, 17581320050831
230
NOZZLE UPPER PART
230
NOZZLE UPPER PART
233
RING NOZZLE UPPER PART
233
NOZZLE UPPER PART
240
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
250
TAPPING SCREW CONTROL UNIT TO FIRE WALL
253
SCREW
253
SCREW PLATE AT HANDLE, J 47509420000815
260
NOZZLE UPPER PART
