Поз.
Артикул
Описание

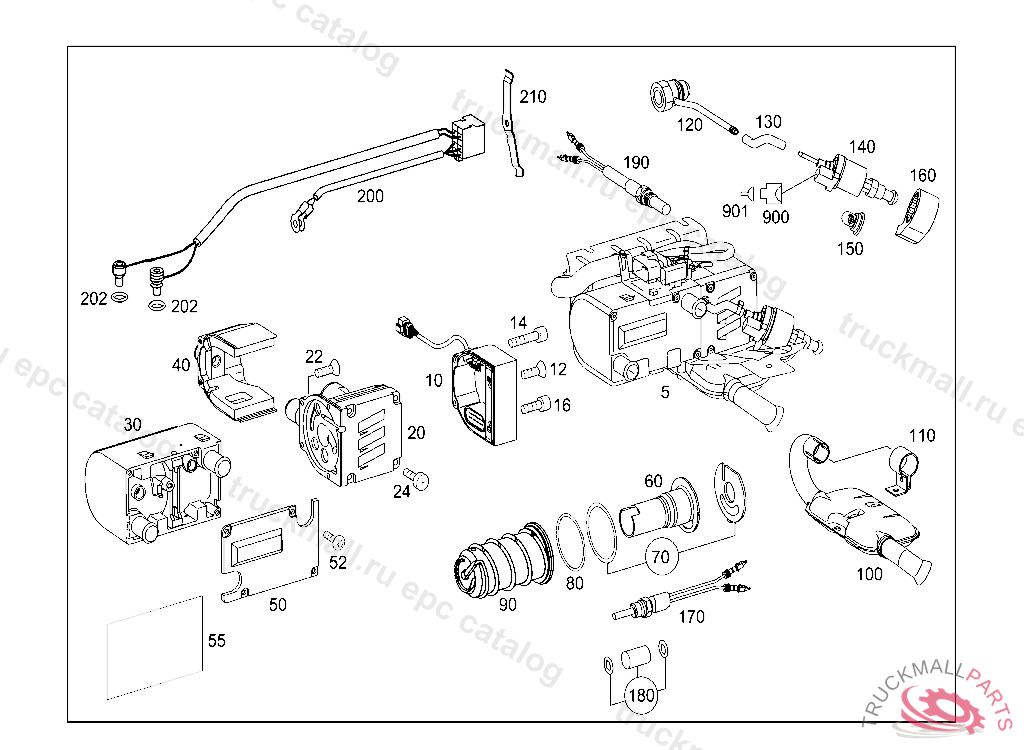

5
HEATER ASSEMBLY ,357677620100831 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.374097720120427, Replaced By: A6398302700
5
HEATER UNIT , 28721420061024
5
HEAT BOOSTER ,367361420110630
5
HEATER UNIT , 28721420061024
5
HEATER ASSEMBLY ,367361420110630 FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.374097720120413, Replaced By: A6398302800
5
HEAT BOOSTER ,357677620100831
10
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 08033320040706, Replaced By: A6394460729
10
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 08033320040714, Replaced By: A6394460829
10
CONTROL UNIT HEATING ,357677520100831, Replaced By: A6394461029
10
CONTROL UNIT HEATING ,374097720120413, Replaced By: A6394461129
10
CONTROL UNIT HEATING ,357677520100831, Replaced By: A6394461329
10
CONTROL UNIT HEATING ,374097720120413, Replaced By: A6394461429
10
CONTROL UNIT HEATING ,357677520100831, Replaced By: A6394461529
10
CONTROL UNIT HEATING ,374097720120413, Replaced By: A6394461629
10
CONTROL UNIT HEATING ,357677520100831, Replaced By: A6394461729
10
CONTROL UNIT HEATING ,374097720120413, Replaced By: A6394461829
10
CONTROL UNIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.374097720120413, Replaced By: A6399000701
10
CONTROL UNIT ,374097820120413
10
CONTROL UNIT
10
CONTROL UNIT ,374097720120427
12
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
14
CAP BOLT CONTROL UNIT TO BLOWER M5X65,M 5X65
16
SCREW MOUNTING OF INSTRUMENT PANEL
16
SCREW SOLENOID VALVE TO VALVE
20
AXIAL FAN
22
SCREW DIODE CASE TO OPERATING UNIT CASE
24
SCREW REFLECTOR TO BRACKET
24
HEXALOBULAR BOLT ELECTRICAL COMPARTMENT M5X25
30
HOUSING AC HOUSING
40
COVER CONTROL UNIT, BOTTOM, S 14499720061019
50
COVERTO 638 835 12 01,13 01
52
HEXALOBULAR BOLT ELECTRICAL COMPARTMENT M5X25
52
SCREW REFLECTOR TO BRACKET
55
INSULATION AGAINST MOISTURE
55
INSULATION LEFT
60
PIPELINE COMBUSTOR
60
BURNER BURNER ELEMENT
70
SEAL PARTS KIT
80
SEAL RING
90
HEAT EXCHANGER
100
MUFFLER ,374097720120403
100
EXHAUST PIPE ,374097820120403
110
CLAMP PROTECTIVE TUBE TO CAB
120
FITTING HEATER PLUG
120
FITTING HEATER PLUG
130
HOSE
140
PUMP ADDITIONAL HEATER
150
STRAINER
160
BRACKET PUMP TO BRACKET 43/25MM,ZEN 158/04, Y40009, 01.09.04
170
GLOW PLUG
180
FILTER INSERT
180
FILTERTO 638 835 13 01
190
TEMPERATURE SENSOR (FEELER),FLAME CONTROL
200
ELECTRICAL CABLE
202
SEAL RING , Replaced By: A0169974548
210
SPRING
900
PLUG INJECTION VALVE
901
WIRE SEAL
901
CONTACT SPRING LESS DETENT,BUT WITH CATCH FOR HOUSING 0.5-1.0MM2,126372
901
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
901
CONTACT SPRING WITH GASKET 1.5-2.5 MM2
