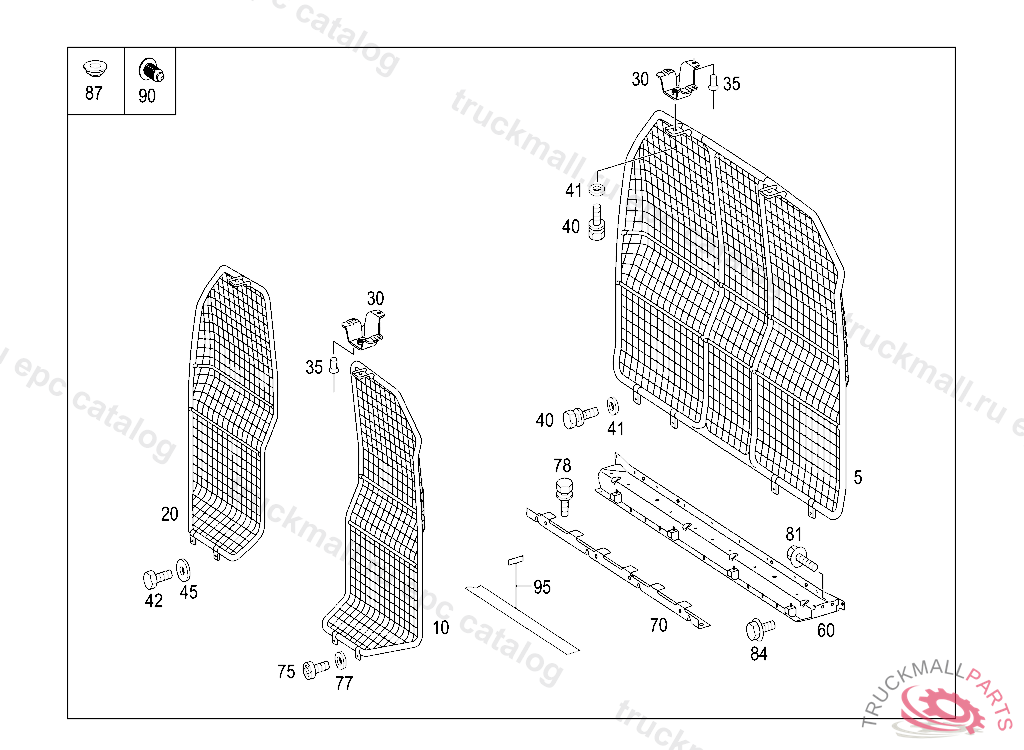

Поз.
Артикул
Описание
5
GRILLE WITHOUT PASSAGE, 20110930
10
GRILLE LEFT
20
GRILLE RIGHT
30
BRACKET TOP,370898520111130
35
BLIND RIVET , Replaced By: N910002004118
35
RIVET ENGINE HOOD CATCH
40
SCREW LICENSE PLATE TO BRACKET
41
WASHER COMPRESSED AIR LINE TO BRACKET
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
42
SCREW-AND-WASHER ASSEMBLY BASS BOX FASTENING M6X12
42
SCREW COVER PLATE TO COVER PLATE M 6 X 12
45
WASHER COMPRESSED AIR LINE TO BRACKET
60
CROSS MEMBER
70
ANGLE
75
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
75
SCREW LICENSE PLATE TO BRACKET
77
WASHER COMPRESSED AIR LINE TO BRACKET
77
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
78
SCREW PIPE CLAMP
81
HEXALOBULAR BOLT HORN TO BRACKET M10X20,V 207570
84
SCREW BRACKET TO SIDE MEMBER M8X20
87
EXPANSION PLUG IN FLOOR,FRONT
90
CLIP
95
ADHESIVE TAPE APPARATUS PLATE TO REAR PANEL, LENGTH AVAILABLE: 20000 MM
