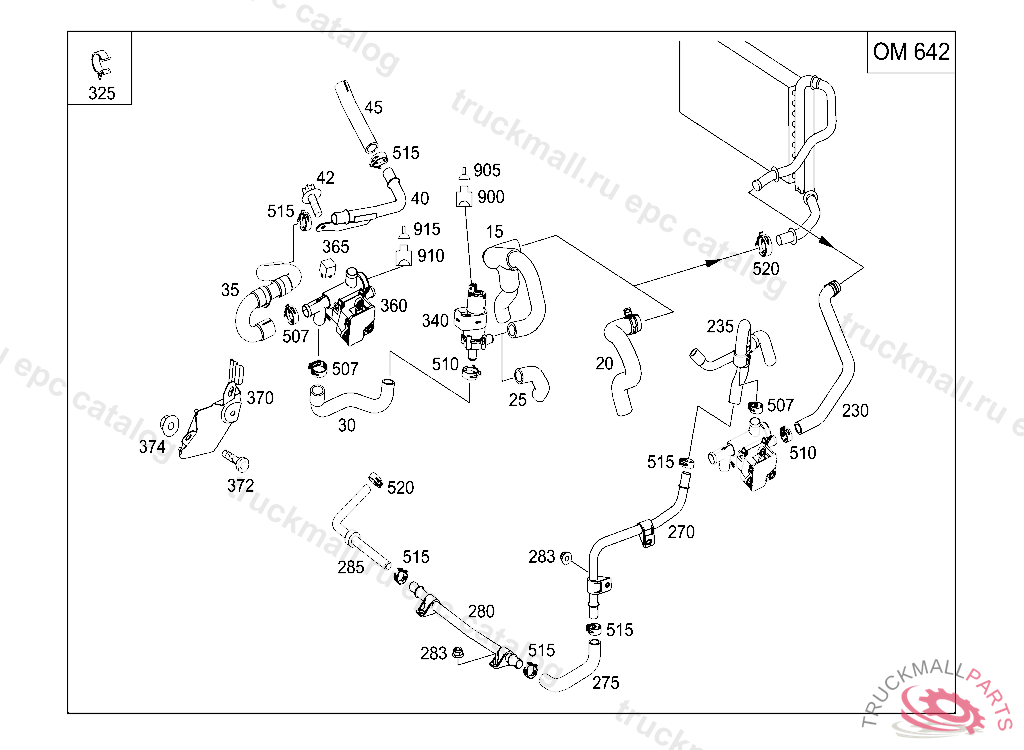

Поз.
Артикул
Описание
15
MOLDED HOSE FEED LINE, FROM CIRCULATION PUMP TO HEAT EXCHANGER
15
HOSE FEED LINE, FROM CIRCULATION PUMP TO HEAT EXCHANGER, 22775020060315 53574920090828
15
HOSE FEED LINE, FROM CIRCULATION PUMP TO HEAT EXCHANGER, D803354920130719
15
MOLDED HOSE INLET, FROM VALVE TO HEAT EXCHANGER, 53575020090828
15
HOSE FEED LINE, FROM CIRCULATION PUMP TO HEAT EXCHANGER, 22774920060315
15
20
HOSE SUPPLY TO HEAT EXCHANGER
25
HOSE FEED,AUXILIARY HEATER,383442220130719
30
HOSE FEED LINE AT CIRCULATION PUMP AND VALVE
35
HOSE HEATER FEED TO VALVE
35
HOSE HEATER FEED TO VALVE
40
PIPELINE INLET LINE TO HOSE
42
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
45
HOSE FEED LINE, FROM ENGINE TO LINE
230
HOSE RETURN, FROM HEAT EXCHANGER TO VALVE
230
HOSE RETURN, FROM HEAT EXCHANGER TO VALVE, 11395120041202, Replaced By: A6398321093
230
HOSE RETURN, FROM HEAT EXCHANGER TO VALVE, 11395020041202
235
HOSE RETURN LINE, VALVE TO LINE
235
HOSE RETURN FROM VALVE, 28520920061031
235
HOSE RETURN LINE TO VALVE
235
MOLDED HOSE RETURN FROM VALVE,357677520100831
235
MOLDED HOSE RETURN LINE TO VALVE
235
MOLDED HOSE RETURN LINE, VALVE TO LINE
270
PIPELINE RETURN LINE TO SIDE MEMBER
270
PIPELINE RETURN LINE TO SIDE MEMBER, 28520920061031
275
HOSE BETWEEN THE RETURN LINES
275
HOSE BETWEEN THE RETURN LINES
280
PIPELINE RETURN LINE, 28520920061031
283
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
285
HOSE RETURN LINE AT PIPE
325
CLAMP HOSE TO HOSE 20 MM
325
CLAMP HOSE TO HOSE
340
PUMP , 40163520080109
340
PUMP CIRCULATION PUMP
360
VALVE , 11395020041202
360
VALVE
365
RELAY
370
BRACKET , 11395020041202
370
BRACKET
370
BRACKET , 11395120041202
372
WELD SCREW CONTROL UNIT BRACKET
374
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
507
CLAMP HOSE TO ENGINE 29/12MM
510
CLAMP. LOOM TIE
510
CLAMP25 MM
515
CLAMP25 MM
515
LOOM TIE HOSE TO RADIATOR AND TO EXPANSION TANK
520
CLAMP25 MM
900
PLUG
900
RECEPTACLE HOUSING RIGHT POWER WINDOW MOTOR 2-PIN SLK2.8,M10/2
905
GASKET
905
GASKETTO 001 545 24 81, A 218853 ALSO INSTALLED ON A 103237 - A 218851 WITH CODE 030 F 190066 ALSO INSTALLED ON F 159752 - F 190064 WITH CODE 030 EXCEPT FOR A 219847
905
CONTACT SPRING. PLUG SOCKET0,5-1,0
905
CONTACT SPRING. PLUG SOCKET1,0-2,5
910
PIN BUSHING HOUSING 6-POLE
915
GASKET. BLIND PLUG BLUE
915
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
915
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
