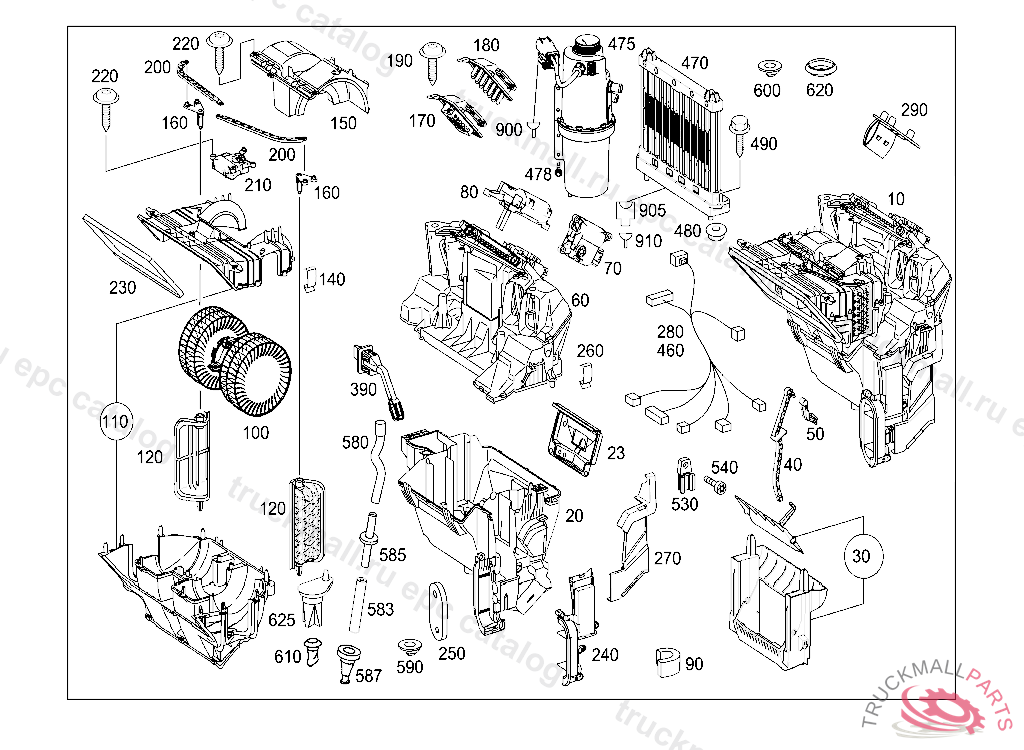

Поз.
Артикул
Описание
10
AIR CONDITIONER
10
HEATER
10
AIR CONDITIONER , 39449720071109
10
AIR CONDITIONER , 39449720071103
10
AIR CONDITIONER
10
AIR CONDITIONER , 39449720071109
10
AIR CONDITIONER , 39449720071109
10
AIR CONDITIONER
10
AIR CONDITIONER
10
HEATER ASSEMBLY
10
AIR CONDITIONER , 39449720071109
10
HEATER ASSEMBLY
10
AIR CONDITIONER , 39449720071109
10
AIR CONDITIONER
10
AIR CONDITIONER
10
HEATER ASSEMBLY
10
AIR CONDITIONER
10
AIR CONDITIONER
10
AIR CONDITIONER , 39449720071109
10
AIR CONDITIONER WITH OPERATING UNIT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0028308360
10
AIR CONDITIONER WITH OPERATING UNIT, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0028308260
10
10
HEATER ASSEMBLY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0078301861
10
10
HEATER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0078301661
10
10
AIR CONDITIONING ASSEMBLY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 39449620071109, Replaced By: A0028308860
10
10
AIR CONDITIONING ASSEMBLY , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 39449620071109, Replaced By: A0028308660
10
10
AIR CONDITIONER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A6398303560
10
10
AIR CONDITIONER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A6398303460
10
AIR CONDITIONER
20
HOUSING LOWER PART
20
HOUSING LOWER PART
20
HOUSING LOWER PART
20
HOUSING LOWER PART
23
INSULATION SELF-ADHESIVE
30
HOUSING AIR INTAKE
40
LINK
50
BRACKET
60
HOUSING AIR DISTRIBUTOR
60
HOUSING AIR DISTRIBUTOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0008303240
60
HOUSING AIR DISTRIBUTOR
60
HOUSING AIR DISTRIBUTOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0008303440
60
HOUSING AIR DISTRIBUTOR, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.339449620071109 P3417716, Replaced By: A0008303340
60
HOUSING AIR DISTRIBUTOR
70
SERVOMOTOR , D802931320130117
70
SERVOMOTOR ,373289120120319
70
SERVOMOTOR ,373289120120319
80
STEPPER MOTOR ASSEMBLY
90
INSULATION HEAT EXCHANGER
100
BLOWER
100
BLOWER
110
HOUSING TOP AND BOTTOM
120
FLAP FRESH AIR/CIRCULATING AIR
140
SPRING
150
HOUSING CENTRAL TOP
160
LEVER FLAP
170
RESISTOR BLOWER REGULATOR
180
BLOWER REGULATOR
190
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
200
LINK FLAP ACTUATION
210
STEPPER MOTOR ASSEMBLY FLAP ACTUATION
220
HEXALOBULAR BOLT SWITCH TO INSTRUMENT PANEL M4X16
230
SEAL
240
COVER
250
SEAL
260
SPRING
270
COVER , TO BE ADAPTED DURING ASSEMBLY
280
EL. CABLE
280
EL. CABLE
280
EL. CABLE
280
EL. CABLE
280
EL. CABLE RETROFITTING CODE HH9 FOR HZO
280
EL. CABLE
290
BRACKET OPERATING UNIT
390
TEMPERATURE SENSOR EVAPORATOR
460
EL. CABLE
460
EL. CABLE
470
CONTROL UNIT HEATER BOOSTER PTC
470
CONTROL UNIT HEATER BOOSTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.870180920111102, Replaced By: A6399007000
470
HEATING ELEMENT HEATER BOOSTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.358865920100422, Replaced By: A6399002600
470
CONTROL UNIT HEATING HEATER BOOSTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 31894120070328, Replaced By: A6394461229
470
CONTROL UNIT HEATING HEATER BOOSTER, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 13494820050303, Replaced By: A6394460929
475
HEAT BOOSTER
478
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
478
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
480
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
490
SCREW BRACKET TO FIRE WALL
530
BRACKET RELAY SOCKET
540
BOLT PEDAL VALUE SENSOR WITH LEVER TO FASTENING PLATE M5X25, J 48100520010301801
580
HOSE CONDENSED WATER DRAIN, 17613420050902
580
HOSE CONDENSED WATER DRAIN, 17613320050902
580
HOSE CONDENSED WATER DRAIN, 17613420050902
583
HOSE FROM RIGHT NOZZLE TO CHECK VALVE 900 MM
585
CONNECTOR FROM EXHAUST-GAS TURBOCHARGER VALVE TO CONNECTION,TURBO ACTUATOR VACUUM CELL
587
GROMMET SIDE MEMBER 10 MM
590
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
590
GROMMET BATTERY CASE
600
EXPANSION PLUG AT BRACKET
610
GROMMET INTAKE SHELL WATER DRAIN
620
EXPANSION PLUG
625
VALVE WHEELHOUSE
900
CONTACT BUSHING1.0-1.5 MM2 MCP1.2
900
CONTACT BUSHING4.0-6.0 MM2 DFK3
900
CONTACT SPRING1.5-2.5 MM2
905
PIN BUSHING HOUSING RAIN SENSOR 4 POLIG
910
CONTACT BUSHINGR 27, 0.75 MM2
910
FEMALE CONTACT SWITCH, POWER WINDOW, DRIVER 0.25-0.5 MM2 MQS,S20
