Mercedes Q988020210197 - САЛАЗКИ

LUXUSKOMBI 639.811

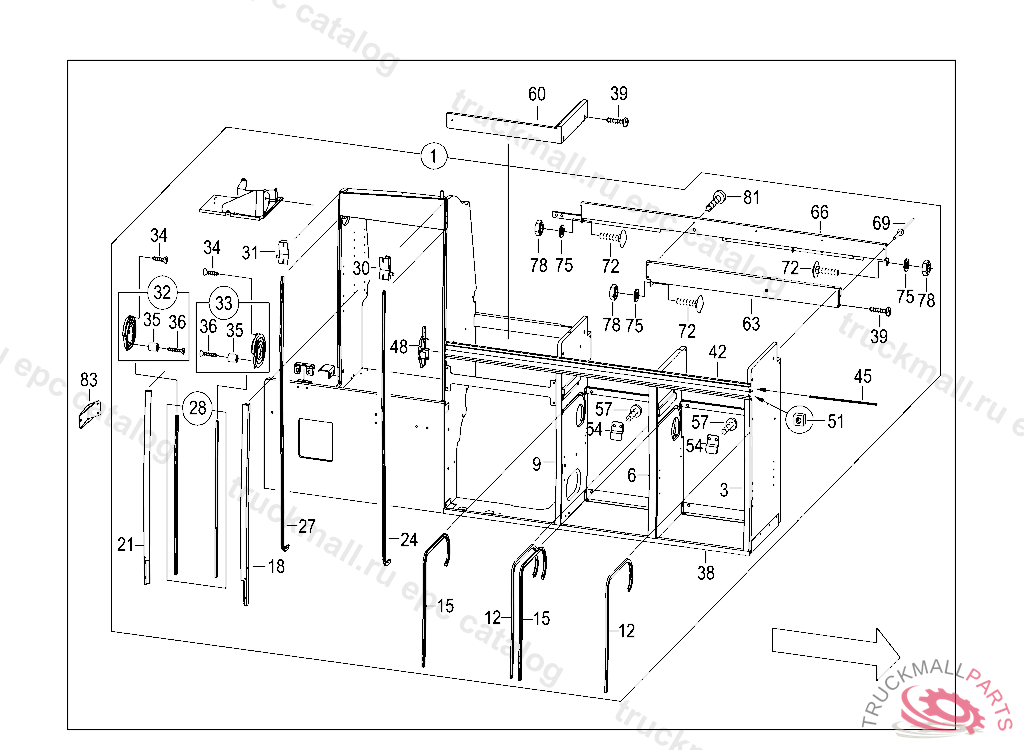

98 "WESTFALIA" CAMPER - 140 KITCHEN CUPBOARD IL. 1

Поз.
Артикул
Описание
1
Q988026210005
1
Q988021210075
1
Q988020210005
3
Q988020210361
6
Q988020210363
9
Q988020210362
12
Q988020210197
15
Q988020210198
18
Q988021210293
18
Q988020210364
21
Q988021210288
21
Q988020210365
24
Q988020210199
27
Q988020210200
28
Q988021210289
30
Q988020210221
31
Q988020210220
32
Q988022210102
33
Q988022210103
34
Q900010653215
SHEET METAL SCREW RANGE OF DELIVERY10 PIECES 3.9 X 13, ONLY VALID IN THE FEDERAL REPUBLIC OF GERMANY ORDER DIRECTLY BY FAX,INCLUDING YOUR 6-DIGIT WESTFALIA CUSTOMER NUMBER AND YOUR MERCEDES-BENZ ORDER NUMBER FOR: WESTFALIA VAN-CONVERSION GMBH AUFTRAGSABWICKLUNG AM SANDBERG 45, D-33378 RHEDA-WIEDENBRUECK TELEFON: 05242 / 15483 ODER 15169 TELEFAX: 05242 / 15470
35
Q900010515140
36
Q900010653217
38
Q988020210254
39
N000000000482
TAPPING SCREW. SCREW DOOR CONTACT TO BODY 3,9X9,5
42
Q988020210168
45
Q900001509005
RUBBER PROFILE , ORDER BY THE METER
48
Q988020210205
51
N000000004429
NUT AIR CLEANER ELEMENT
54
Q988020210189
57
Q900010637132
BOLT
57
N000000001476
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
60
Q988020210138
63
Q988020210071
66
Q988020210176
69
N910002004129
RIVET REFLECTOR TO BRACKET
72
N000603006045
SCREW COVERING
72
Q900010637027
75
N000440006162
WASHER
78
Q900010648014
NUT
78
N913002006009
NUT OIL TANK TO BRACKET
81
Q900010616014
83
Q988020210175
