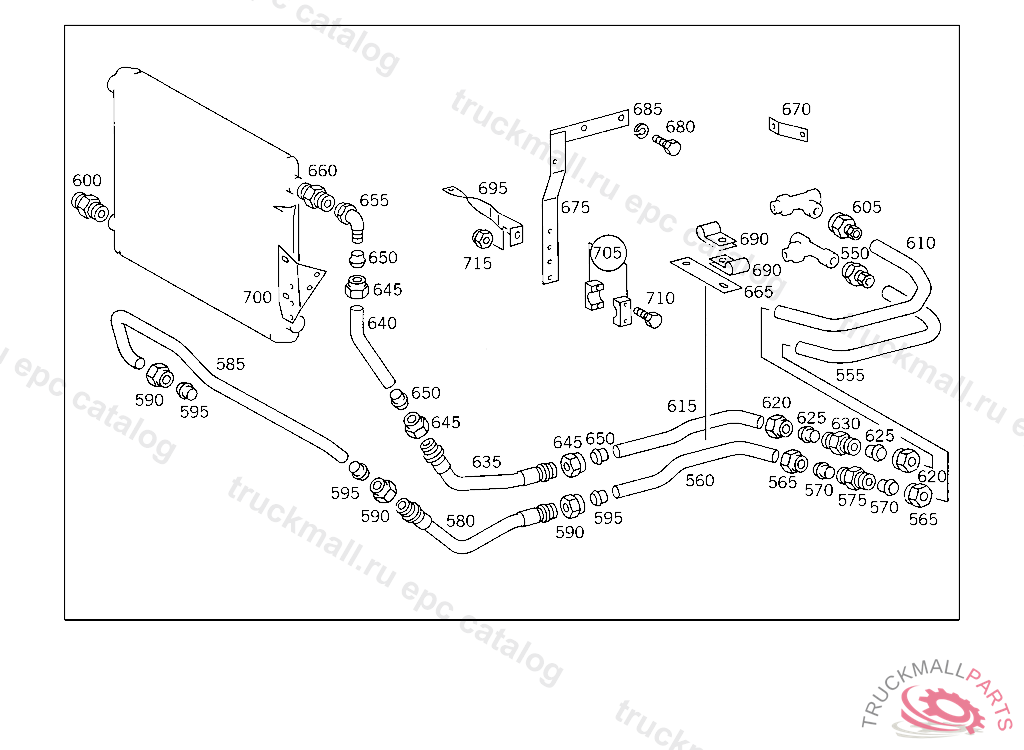

Поз.
Артикул
Описание
550
SCREW CONNECTION OIL LINE LEADING TO OIL COOLER TO TRANSMISSION
555
COOLING WATER PIPE OIL LINE TO OIL COOLER
555
VALVE FROM REDUCING PIECE TO HOSE
555
COOLING WATER PIPE OIL LINE LEADING TO OIL COOLER TO TRANSMISSION
560
PIPE SOCKET OIL RETURN, FROM HOSE TO FITTING ON RADIATOR
560
COOLING WATER PIPE OIL LINE TO OIL COOLER
560
PIPE SOCKET FROM REDUCING PIECE TO HOSE
560
COOLING WATER PIPE OIL LINE TO OIL COOLER
560
PIPE SOCKET FROM REDUCING PIECE TO HOSE
565
NUT LINE CONNECTION M 28
565
UNION NUT , Replaced By: A0019901354
570
GLAND , Replaced By: A0019901367
570
SEAL CONE LINE CONNECTION M 28
575
CONNECTION FITTING OIL LINE CONNECTION TO OIL COOLER
580
HOSE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
585
COOLING WATER PIPE FROM HOSE TO RADIATOR
585
PIPE SOCKET FROM HOSE TO RADIATOR
590
NUT LINE CONNECTION M 28
590
UNION NUT , Replaced By: A0019901354
595
GLAND , Replaced By: A0019901367
595
SEAL CONE LINE CONNECTION M 28
600
FITTING OIL LINE TO OIL COOLER
605
SCREW CONNECTION OIL LINE LEADING TO OIL COOLER TO TRANSMISSION
610
COOLING WATER PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
610
COOLING WATER PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
610
VALVE FROM REDUCING PIECE TO HOSE
615
PIPE SOCKET FROM REDUCING PIECE TO HOSE
615
COOLING WATER PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
615
COOLING WATER PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
615
PIPE SOCKET FROM REDUCING PIECE TO HOSE
615
PIPE SOCKET OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
615
PIPE SOCKET OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
620
NUT LINE CONNECTION M 28
620
UNION NUT , Replaced By: A0019901354
625
GLAND , Replaced By: A0019901367
625
SEAL CONE LINE CONNECTION M 28
630
CONNECTION FITTING OIL LINE CONNECTION TO OIL COOLER
635
HOSE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
640
PIPE SOCKET FROM HOSE TO RADIATOR
640
COOLING WATER PIPE OIL LINE COMING FROM OIL COOLER TO TRANSMISSION
645
NUT LINE CONNECTION M 28
645
UNION NUT , Replaced By: A0019901354
650
GLAND , Replaced By: A0019901367
650
SEAL CONE LINE CONNECTION M 28
655
FITTING OIL LINE TO OIL COOLER
660
FITTING OIL LINE TO OIL COOLER
665
BRACKET , Replaced By: A3765062040
665
BRACKET OIL LINE TO TRANSMISSION
665
BRACKET OIL LINE TO TRANSMISSION
670
BRACKET LINE MOUNTING, TO BE ADAPTED DURING ASSEMBLY
675
BRACKET , Replaced By: A6454910241
675
BRACKET HEATING PIPE TO ENGINE,5 3853425 932305
675
BRACKET OIL LINE TO FRAME, SIMPLE PART-PLEASE HAVE SHOP MADE
680
SCREW STRAP TO BRACKET
680
SCREW OIL LINE TO CRANKCASE
685
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
685
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
690
CLAMP COOLING WATER LINE TO FRAME
695
BRACKET , Replaced By: A4221300235
695
BRACKET BRACKET TO FAN SHROUD BRACKET
695
SUPPORT BRACKET TO COMPRESSOR BRACKET, TO BE ADAPTED DURING ASSEMBLY
700
ANGLE OIL LINE TO RADIATOR
705
CLAMP OIL LINE TO BRACKET
710
SCREW ELECTRIC CABLE TO BRACKET M 6X60
710
SCREW APPARATUS PLATE M 6X100
715
NUT PUMP TO BRACKET
715
NUT , Replaced By: N913004006001
999
COVER
999
HOSE CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A0059970190
999
BRACKET FUEL LINES TO TRANSMISSION
999
BRACKET CABLE HARNESS MOUNTING
999
BRACKET , Replaced By: A6224760136
999
HOSE OIL FEED AND RETURN, ORDER BY THE METER
999
COOLING WATER LINE
999
COOLING WATER LINE REAR
999
COOLING WATER PIPE FRONT
999
CLAMP , Replaced By: A1409950036
999
CLAMP LINE MOUNTING
999
CLAMP , Replaced By: A3829950101
999
BANJO UNION HOSE WIDTH, / I.D., 6/10 MM
999
SEAL RING PNEUMATIC VALVE
999
SEAL RING , Replaced By: N007603010110
999
CLAMP LINE MOUNTING
