Поз.
Артикул
Описание

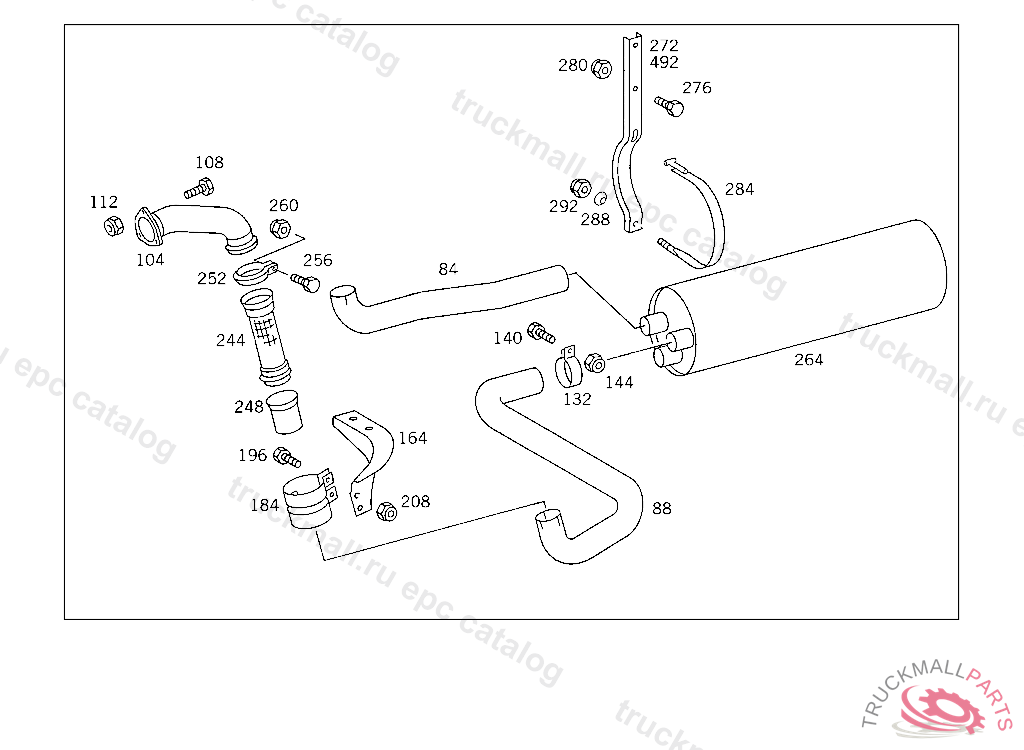

84
EXHAUST PIPE FRONT,REAR RIGHT PART,5 468859
88
EXHAUST PIPE FRONT,REAR LEFT PART,5 468859
104
CONNECTOR FRONT EXHAUST PIPE,LEFT
104
CONNECTOR FRONT EXHAUST PIPE,RIGHT
108
SCREW CONNECTOR TO EXHAUST MANIFOLD
112
NUT CONNECTOR TO EXHAUST MANIFOLD
132
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
140
SCREW , Replaced By: N304017010002
140
SCREW BRACKET TO SIDE MEMBER
144
NUT STRAP TO BRACKET
144
NUT , Replaced By: N910113010000
164
BRACKET LEFT
164
BRACKET RIGHT, TO BE ADAPTED DURING ASSEMBLY
184
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
184
CLAMP EXHAUST PIPE TO BRACKET
196
SCREW , Replaced By: N304017010002
196
SCREW BRACKET TO SIDE MEMBER
208
NUT STRAP TO BRACKET
208
NUT , Replaced By: N910113010000
244
FLEXIBLE METAL TUBE CONNECTOR
244
FLEXIBLE METAL TUBE FRONT LEFT
248
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
248
COLLAR (SLIDING COLLAR)
252
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
252
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
256
SCREW , Replaced By: N304017008018
256
SCREW , Replaced By: N304017008027
256
SCREW SUPPORT TO FENDER
256
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
260
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
260
NUT STRAP TO BRACKET
260
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
260
NUT , Replaced By: N913004008001
260
NUT , Replaced By: N910113010000
264
EXHAUST MUFFLER
272
BRACKET , Replaced By: A6524910741
272
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
272
BRACKET FRONT AND REAR EXHAUST MUFFLERS
276
SCREW , Replaced By: N308676014020
276
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
280
NUT BRACKET TO SIDE MEMBER
280
NUT , Replaced By: N910113014001
284
STRAP EXHAUST MUFFLER TO BRACKET
288
SPHERICAL WASHER STRAP TO BRACKET
292
NUT STRAP TO BRACKET
292
NUT , Replaced By: N910113010000
492
BRACKET , Replaced By: A6524920741
492
BRACKET TAIL PIPE TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY5 564478
999
PROTECTIVE PLATE FUEL TANK
999
CLAMP EXHAUST PIPE TO BRACKET
999
CONNECTOR FRONT,5 955117K 110091
999
CONNECTOR FRONT,K 110092
999
BRACKET BRACKET TO CROSS MEMBER
999
BRACKET BRACKET TO CROSS MEMBER
999
CLAMP EXHAUST PIPE TO BRACKET
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
CLAMP EXHAUST PIPE TO BRACKET
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
EXHAUST PIPE EXHAUST MUFFLER,RIGHT FRONT
999
EXHAUST PIPE FRONT,REAR LEFT PART,5 468859
999
EXHAUST PIPE FRONT,REAR RIGHT PART,5 468859
999
EXHAUST PIPE FRONT,REAR PART
999
EXHAUST PIPE FRONT
999
EXHAUST PIPE FRONT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET ,5 765950, Replaced By: A6174911841
999
END PIECE (TAIL PIPE)
999
BASE PLATE BRACKET TO SIDE MEMBER
999
END PIECE TAIL PIPE,FRONT,K 027551
999
CLAMP EXHAUST PIPE TO BRACKET
999
REAR EXHAUST PIPE FROM CONNECTOR TO EXHAUST MUFFLER
999
END PIECE (TAIL PIPE)
999
END PIECE (TAIL PIPE),K 035523
999
END PIECE (TAIL PIPE),K 035523
999
BRACKET
999
CONNECTOR ,5 957691
999
END PIECE
999
END PIECE
999
BRACKET
999
END PIECE LEFT
999
END PIECE (TAIL PIPE)
999
BRACKET EXHAUST PIPE TO SIDE MEMBER,5 953233K 035196
999
BRACKET BRACKET TO SPRING FRONT BRACKET,5 943736K 035522
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
EXHAUST PIPE FRONT
999
END PIECE (TAIL PIPE)
999
END PIECE
999
MOUNTING BRACKET TO CAB
999
BRACKET INTERMEDIATE PIECE TO FRAME
999
SCREW EXHAUST PIPE TO BRACKET
999
SCREW , Replaced By: N304017010002
999
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
999
SCREW BRACKET TO SIDE MEMBER
999
NUT STRAP TO BRACKET
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113014001
