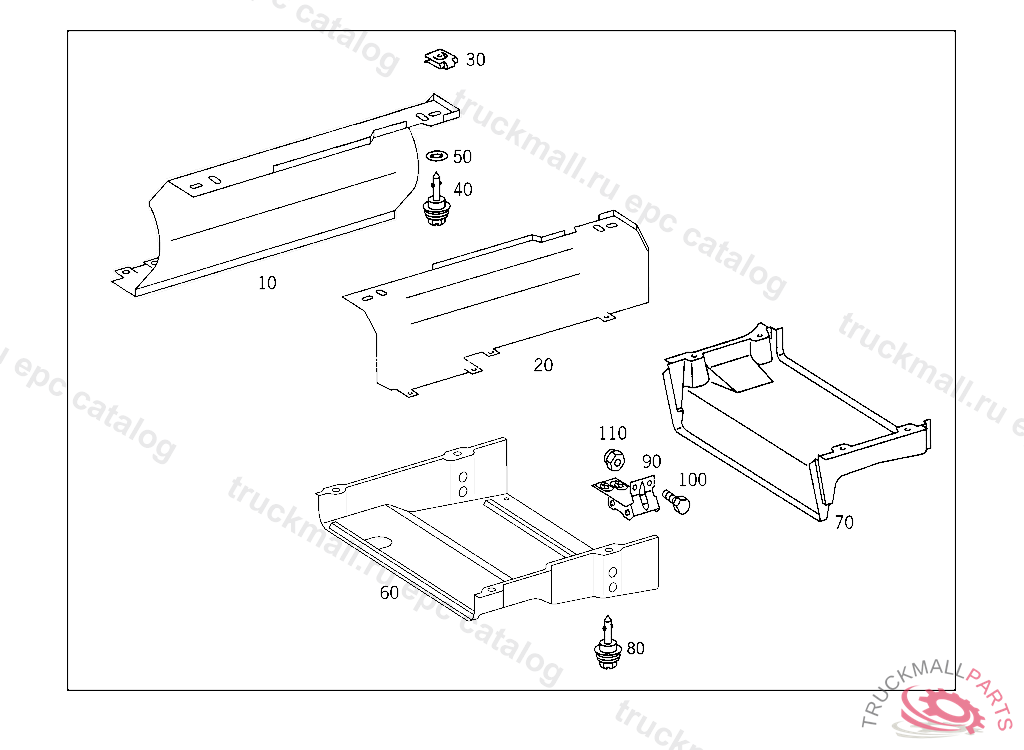

Поз.
Артикул
Описание
10
COVERING TOP LEFT
10
ANTINOISE CAPSULE TOP LEFT
10
ANTINOISE CAPSULE TOP LEFT
20
ANTINOISE CAPSULE TOP RIGHT
30
FASTENER ANTINOISE CAPSULE
40
LOCKING PIN ANTINOISE CAPSULE
50
LOCK PROTECTIVE PLATE TO BRACKET
60
ENGINE HOOD LOWER PART
60
ANTINOISE CAPSULE LOWER PART
60
ANTINOISE CAPSULE LOWER PART
70
ANTINOISE CAPSULE LOWER PART
80
LOCKING PIN LOWER PART
90
BRACKET ANTINOISE CAPSULE TO FRAME
90
BRACKET ANTINOISE CAPSULE
90
BRACKET ANTINOISE CAPSULE
90
BRACKET ANTINOISE CAPSULE TO FRAME
90
BRACKET ANTINOISE CAPSULE TO FRAME
90
BRACKET ANTINOISE CAPSULE TO FRAME
100
SCREW , Replaced By: N910142008009
100
SCREW BRACKET TO FRAME M 8X35
100
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
100
SCREW , Replaced By: N910105008043
100
SCREW , Replaced By: N304017008018
100
SCREW SUPPORT TO FENDER
100
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
100
SCREW BRACKET TO FRAME SIDE MEMBER
100
SCREW , Replaced By: N910143008010
100
SCREW CLAMP TO BRACKET,5 597426
100
HEXALOBULAR BOLT BRACKET TO BRACKET
110
NUT BRACKET TO BRACKET
110
NUT EXHAUST PIPE TO SIDE MEMBER
110
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
NUT STRAP TO BRACKET
110
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
110
NUT , Replaced By: N913004008001
110
NUT , Replaced By: N910113010000
999
FASTENER ,K 105999
999
PLATE
999
ENGINE HOOD LOWER PART
999
ENGINE HOOD TOP LEFT
