Поз.
Артикул
Описание

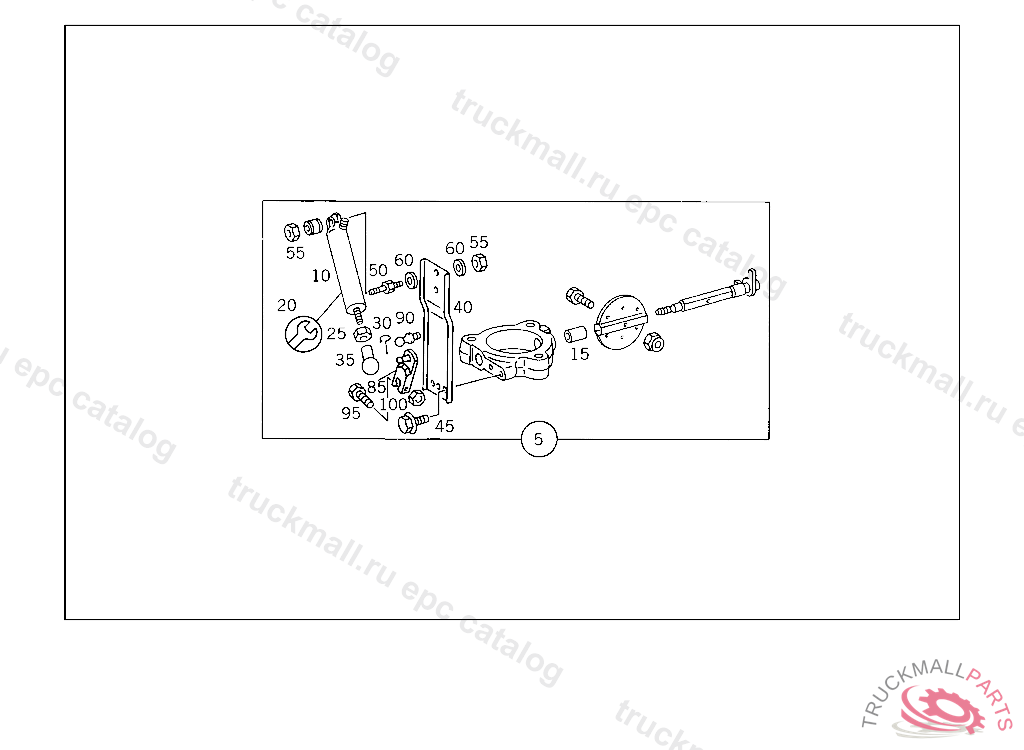

5
THROTTLE HOUSING PARTS KIT,K 181318N 817421 - N 825202
5
THROTTLE HOUSING , Replaced By: A3661405353
10
WORKING CYLINDER (POWER CYLINDER),EXHAUST BRAKE
10
CYLINDER (POWER CYLINDER),EXHAUST BRAKE, Replaced By: A0004307926
10
CYLINDER , Replaced By: A0004305926
15
BUSHING"WABCO"
20
REPAIR KITTO 000 430 48 26,KNORR
25
NUT
25
NUT , Replaced By: N304035008001
30
SECURING CLIP. CIRCLIP
35
BALL SOCKET SHIFTING CYLINDER TO SHIFT LEVER
35
BALL SOCKET
40
BRACKET POWER CYLINDER, TO BE ADAPTED DURING ASSEMBLY
40
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 077169/N 817421 - 825202, Replaced By: A3661440440
45
SCREW BRACKET TO THROTTLE HOUSING M 8X14,B 898894
50
PIN INTERMEDIATE SPEED STOP
55
NUT
55
NUT , Replaced By: N304032008006
60
WASHER INTERMEDIATE SPEED STOP
85
LEVER EXHAUST-BRAKE THROTTLE VALVE
90
BALL PIVOT BOTTOM B13X5 MM
95
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
95
SCREW , Replaced By: N000000001479
95
SCREW , Replaced By: N910105006005
100
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
100
NUT , Replaced By: N913023006001
100
NUT , Replaced By: N910112006001
999
PROTECTIVE PLATE FRONT EXHAUST PIPE
999
BRACKET EXHAUST PIPE TO TRANSMISSION, SIMPLE PART-PLEASE HAVE SHOP MADE
999
BRACKET FRONT EXHAUST PIPE, SIMPLE PART-PLEASE HAVE SHOP MADE
999
EXHAUST PIPE FROM THROTTLE HOUSING TO EXHAUST MUFFLER, SIMPLE PART-PLEASE HAVE SHOP MADE
999
EXHAUST PIPE (CONNECTING PIPE)
999
FRONT EXHAUST PIPE FRONT EXHAUST MUFFLER
999
VALVE PARTS KIT,K 181318N 817421 - N 825202
999
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
999
PROTECTIVE PLATE , NOT USED
999
INTERMEDIATE FLANGE CONNECTOR TO EXHAUST MANIFOLD
999
CLAMP HEAT SHIELD
999
EXHAUST PIPE FRONT EXHAUST MUFFLER
999
FLANGE , Replaced By: A6991440212
