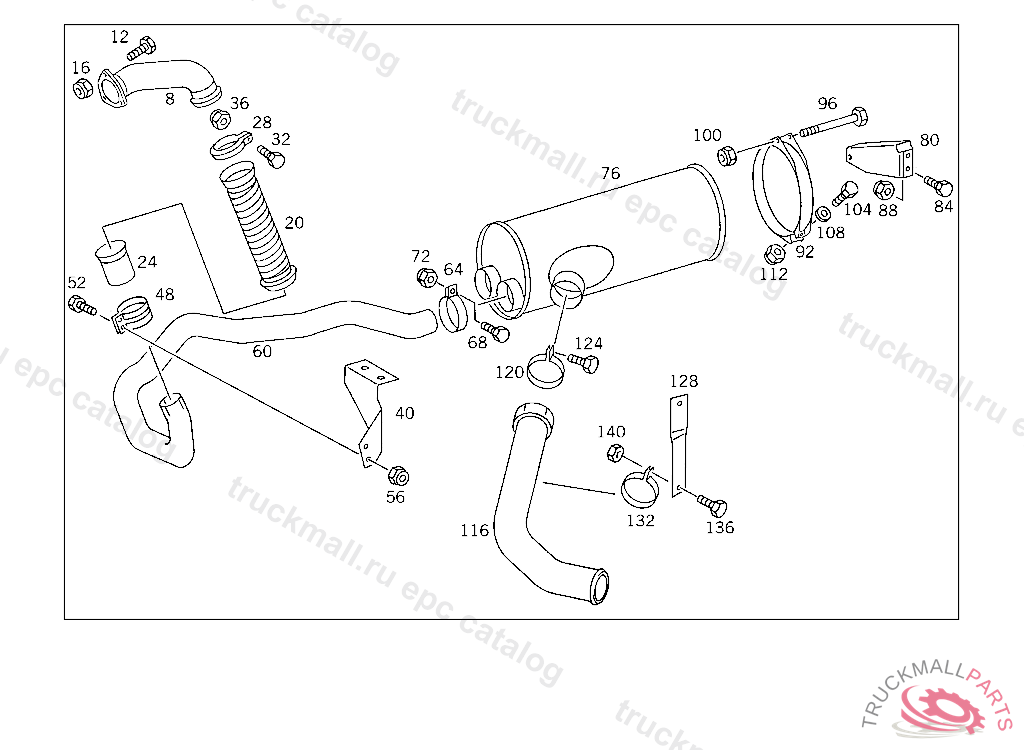

Поз.
Артикул
Описание
8
CONNECTOR FRONT EXHAUST PIPE,LEFT
8
CONNECTOR FRONT EXHAUST PIPE,RIGHT
12
SCREW CONNECTOR TO EXHAUST MANIFOLD
16
NUT CONNECTOR TO EXHAUST MANIFOLD
20
FLEXIBLE METAL TUBE CONNECTOR
24
COLLAR EXHAUST LINE FLEXIBLE METAL TUBE
28
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
32
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
32
SCREW , Replaced By: N304017008027
36
NUT , Replaced By: N913004008001
36
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
36
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
40
BRACKET RIGHT EXHAUST PIPE
40
BRACKET RIGHT EXHAUST PIPE
48
CLAMP FLEXIBLE METAL TUBE TO EXHAUST PIPE
52
SCREW , Replaced By: N304017010002
52
SCREW BRACKET TO SIDE MEMBER
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
60
EXHAUST PIPE EXHAUST MUFFLER,LEFT
60
EXHAUST PIPE EXHAUST MUFFLER,RIGHT
64
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
68
SCREW BRACKET TO SIDE MEMBER
68
SCREW , Replaced By: N304017010002
72
NUT , Replaced By: N910113010000
72
NUT STRAP TO BRACKET
76
EXHAUST MUFFLER
76
EXHAUST MUFFLER ,5 535800
80
BRACKET EXHAUST MUFFLER SUSPENSION, TO BE ADAPTED DURING ASSEMBLY
80
BRACKET , Replaced By: A6194900040
84
SCREW , Replaced By: N308676014008
84
SCREW MOUNTING TO CONSOLE M 14X35
88
NUT BRACKET TO SIDE MEMBER
88
NUT , Replaced By: N910113014001
92
STRAP EXHAUST MUFFLER TO BRACKET
96
SCREW STRAP TO BRACKET
100
NUT STRAP TO BRACKET
100
NUT , Replaced By: N910113010000
104
SCREW EXHAUST MUFFLER TO STRAP
108
WASHER EXHAUST MUFFLER TO STRAP
108
WASHER , Replaced By: N000125008443
112
NUT , Replaced By: N913004008001
112
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
112
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
116
END PIECE ,5 758825
116
END PIECE TAIL PIPE ON THE RIGHT
116
END PIECE TAIL PIPE TO EXHAUST MUFFLER,K 027551
120
CLAMP EXHAUST PIPE TO BRACKET
124
SCREW BRACKET TO SIDE MEMBER
124
SCREW , Replaced By: N304017010002
128
BRACKET TAIL PIPE,5 914443
132
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
132
CLAMP , Replaced By: N071555100501
136
SCREW , Replaced By: N304017010002
136
SCREW BRACKET TO SIDE MEMBER
140
NUT STRAP TO BRACKET
140
NUT , Replaced By: N910113010000
999
END PIECE
999
END PIECE
999
BRACKET
