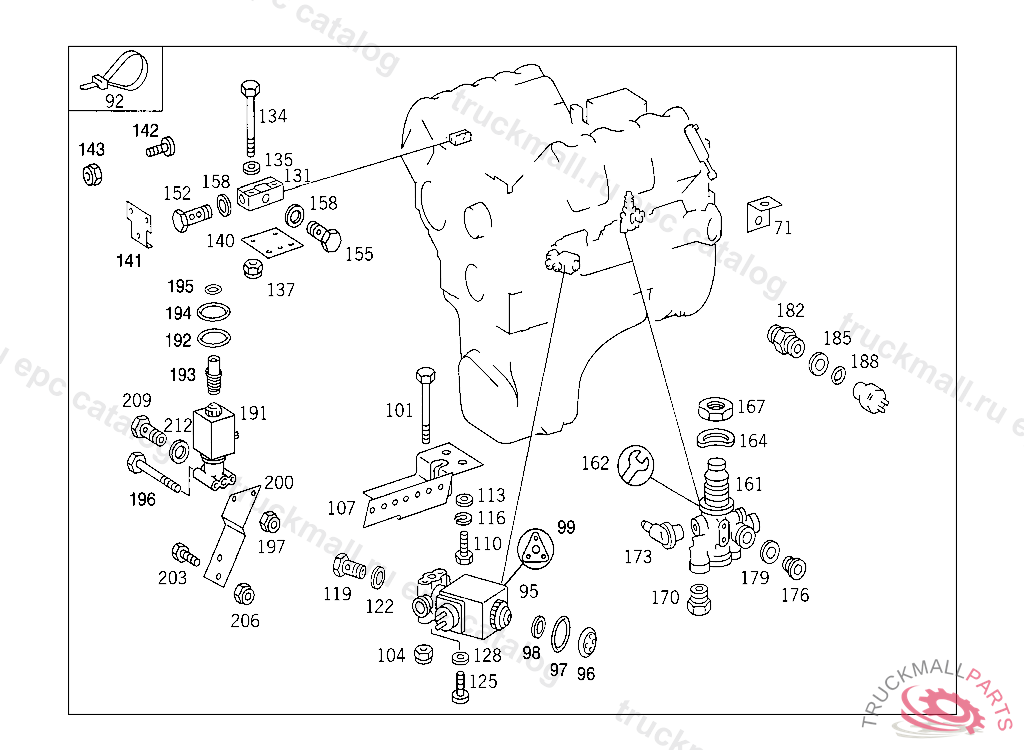

Поз.
Артикул
Описание
71
ANGLE LINE MOUNTING
92
LOOM TIE LINE MOUNTING
92
LOOM TIE LINE MOUNTING 280 MM
92
LOOM TIE BRAKE LINE MOUNTING
95
VALVE (3/2-WAY SOLENOID VALVE) EKS
96
PROTECTIVE CAPWABCO
97
SEAL RINGBOSCH
97
SEAL RINGWABCO
98
SEAL RINGBOSCH
99
GASKET KITKNORR
101
SCREW VALVE TO BRACKET
101
SCREW VALVE TO BRACKET, Replaced By: N304014008002
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
NUT , Replaced By: N913004008001
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
107
BRACKET 3/2-WAY SOLENOID VALVE
107
BRACKET 3/2-WAY SOLENOID VALVE
110
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SCREW , Replaced By: N304017008016
113
WASHER , Replaced By: N000125008443
113
WASHER EXHAUST MUFFLER TO STRAP
116
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
119
HOLLOW SCREW HEATING CONNECTION
122
SEAL RING LINE CONNECTION
125
SCREW TO PLUG THE FREE CONNECTIONS
128
SEAL RINGBOSCH
131
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
134
SCREW TWO-WAY VALVE TO BRACKET
137
NUT TWO-WAY VALVE TO BRACKET
140
BRACKET 3/2-WAY SOLENOID VALVE
141
BRACKET CONNECTOR TO FRAME
142
SCREW CLAMP MOUNTING M 6X16
142
SCREW , Replaced By: N000000001146
143
NUT , Replaced By: N913004006001
143
NUT PUMP TO BRACKET
152
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
155
HOLLOW SCREW FUEL LINE TO FEED PUMP
155
HOLLOW SCREW , Replaced By: N915036010108
158
SEAL RING FUEL LINE TO FEED PUMP
161
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
161
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
162
REPAIR KIT 3/2-WAY VALVE WABCO
164
SPRING WASHER AT CAB FLOOR
167
NUT SUCTION LINE TO OIL PUMP
170
SCREW. UNION SCREW LINE CONNECTION
170
SCREW. UNION SCREW , Replaced By: A0009973734
173
BREATHER , Replaced By: A3933280065
173
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
176
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
176
SCREW PLUG , Replaced By: N000908012009
179
SEAL RING LINE CONNECTION
182
FITTING CONNECTION TO STOP LIGHT SWITCH
182
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
185
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
185
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
188
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
