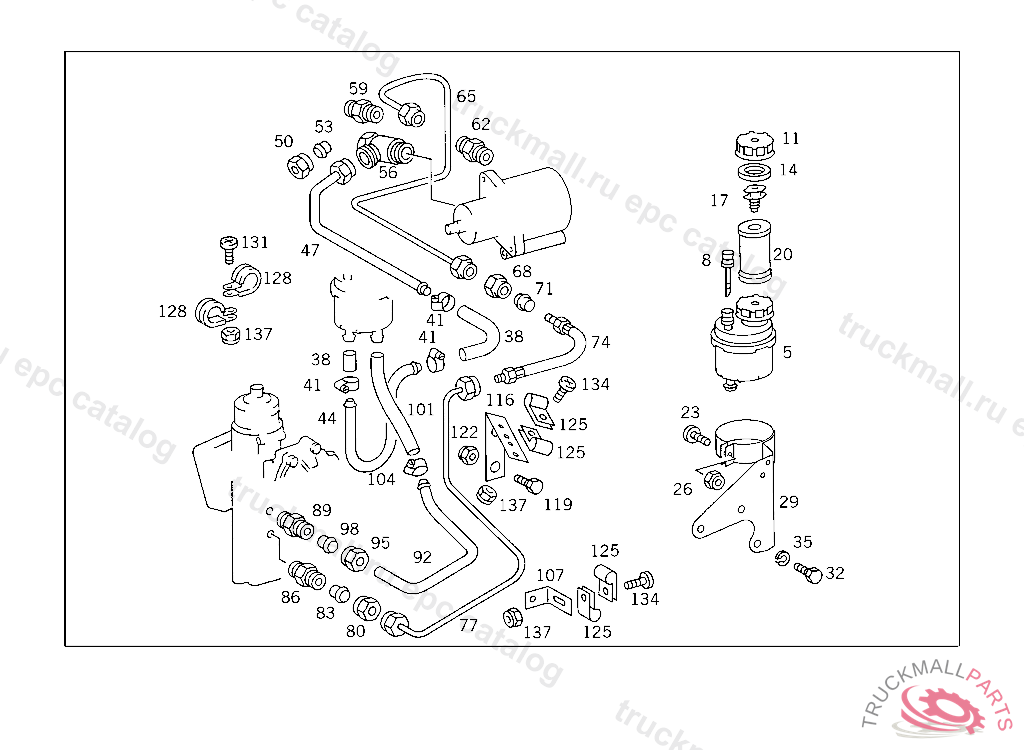

Поз.
Артикул
Описание
5
TANK , Replaced By: A0004666202
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
8
OIL DIPSTICK
11
FILLER CAP
11
FILLER CAP , Replaced By: A0004661268
14
SEAL RING
17
BRACKET
20
FILTER
20
FILTER
23
SCREW OIL TANK TO BRACKET
26
NUT PUMP TO BRACKET
26
NUT , Replaced By: N913004006001
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593345
29
BRACKET OIL TANK,5 593344
29
BRACKET OIL TANK,5 593344
32
SCREW , Replaced By: N304017010028
32
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
35
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
38
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
41
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
41
CLAMP , Replaced By: N000000000667
44
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
44
LINE FROM OIL TANK TO HOSE
44
LINE FROM OIL TANK TO HOSE
44
LINE FROM OIL TANK TO HOSE, Replaced By: A0004291601
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
47
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP 22X1,5 MM,5 360279
47
LINE RETURN LINE TO THERMOSTAT
47
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
50
UNION NUT LINE CONNECTION, Replaced By: N000000006243
50
NUT LINE CONNECTION
53
GLAND , Replaced By: A0019901267
53
SEAL CONE LINE CONNECTION
59
SCREW-IN FITTING SUCTION LINE TO OIL PUMP
62
FITTING DELIVERY LINE TO PUMP
65
LINE FROM PUMP TO HIGH PRESSURE HOSE,K 033177
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
65
LINE FROM PUMP TO HIGH PRESSURE HOSE
68
UNION NUT LINE CONNECTION
68
UNION NUT LINE CONNECTION, Replaced By: N000000006239
71
GLAND , Replaced By: A0019901967
71
SEAL CONE LINE CONNECTION
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
74
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
77
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 593344
77
LINE FROM HIGH PRESSURE HOSE TO STEERING
80
UNION NUT LINE CONNECTION
80
UNION NUT LINE CONNECTION, Replaced By: N000000006239
83
SEAL CONE LINE CONNECTION
83
GLAND , Replaced By: A0019901967
86
FITTING DELIVERY LINE TO PUMP
86
SCREW-IN FITTING DELIVERY LINE TO PUMP
89
SCREW-IN FITTING RETURN, FROM STEERING TO OIL TANK
92
LINE DELIVERY LINE TO STEERING
92
LINE RETURN, FROM STEERING TO OIL TANK
92
LINE , Replaced By: A0005516256
92
LINE FROM HIGH PRESSURE HOSE TO STEERING
95
UNION NUT LINE CONNECTION
98
GLAND LINE CONNECTION
101
HOSE DELIVERY LINE TO STEERING
104
CLAMP HOSE TO FITTING AND TO OIL TANK
104
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
116
BRACKET DELIVERY AND SUCTION LINES TO FRAME
119
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
122
NUT SUPPORT TO SIDE MEMBER
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
125
CLAMP DELIVERY AND SUCTION LINES TO STEERING
125
CLAMP , Replaced By: A6739950001
125
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
128
CLAMP DELIVERY AND SUCTION LINES TO FRAME
128
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
131
SCREW , Replaced By: A0029903712
131
SCREW , Replaced By: N000000001149
134
SCREW CLAMP MOUNTING M 6X16
134
SCREW , Replaced By: N000000001146
134
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
137
NUT , Replaced By: N913004006001
137
NUT PUMP TO BRACKET
999
HOSE. OIL LINE ,5 944106, Replaced By: A0004660559
999
HOSE LINE. OIL LINE FROM PUMP TO DELIVERY LINE,5 944106K 033177
999
PROTECTIVE CAP
999
LINE FROM HIGH PRESSURE HOSE TO STEERING
999
SCREW CENTRAL LOCK TO CAB M 10X16
999
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
999
SEAL RING VALVE TO VALVE,K 025179
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
