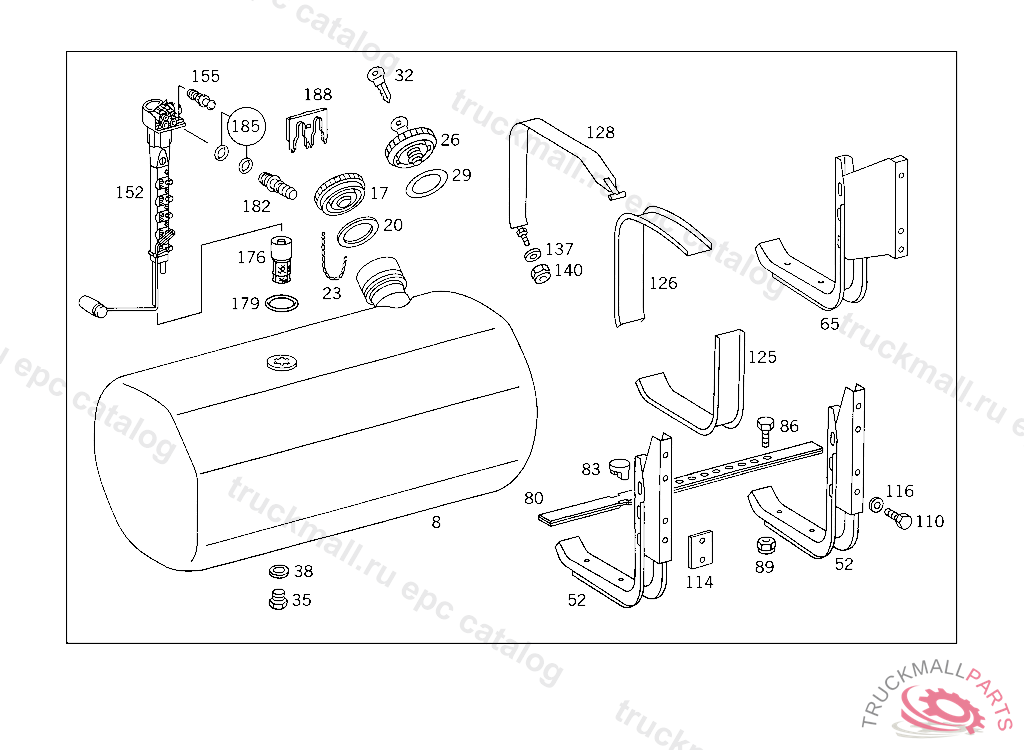

Поз.
Артикул
Описание
17
FILLER CAP
17
FILLER CAP , Replaced By: A0004700305
20
SEAL RING
23
CHAIN FILLER CAP
26
FILLER CAP LESS BREATHING
26
FILLER CAP LESS BREATHING
26
FILLER CAP , Replaced By: A0004718430
29
SEAL RING
29
SEAL RING , Replaced By: A3049970340
32
KEYTO 000 471 67 30, STATE LOCK NUMBER WHEN ORDERING
35
SCREW PLUG FUEL TANK
35
SCREW PLUG , Replaced By: N007604014110
38
SEAL RING AT TANK
110
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
110
SCREW , Replaced By: N308676014020
137
WASHER
140
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
140
NUT , Replaced By: N910113012003
176
FUEL STRAINER FUEL TANK,K 169122
176
FUEL STRAINER FUEL TANK,K 169122
179
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
182
CONNECTOR FEED LINE AND RETURN LINE 8X1 MM
182
CONNECTOR FEED LINE AND RETURN LINE 11X1,5 MM
182
CONNECTOR FEED LINE AND RETURN LINE 12,5X1,25 MM
185
GASKET KIT CONNECTION ON FUEL GAUGE SENSOR
188
LOCK FUEL GAUGE SENDER UNIT CONNECTION
999
SHIM CONSOLE TO SIDE MEMBER
