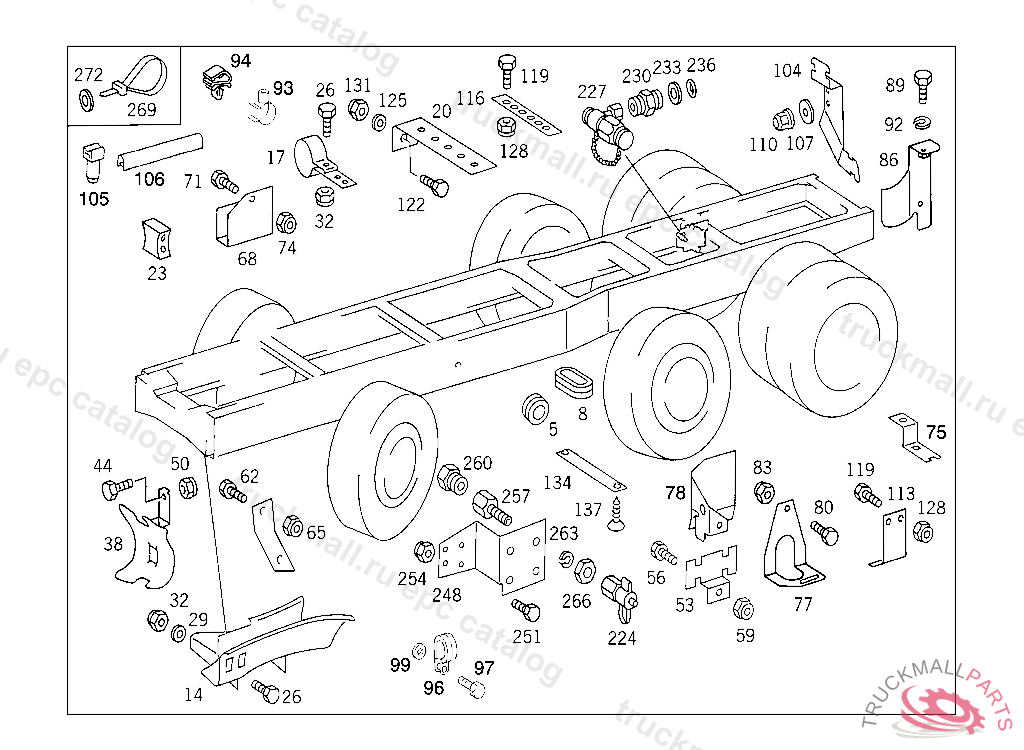

Поз.
Артикул
Описание
5
GROMMET LINE PASSAGE AT SIDE MEMBER
14
BRACKET RIGHT COMPRESSED AIR LINES
14
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
14
BRACKET LEFT COMPRESSED AIR LINES
14
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
20
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
23
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
26
SCREW PIPE CLAMP
26
SCREW , Replaced By: N304017008021
29
WASHER EXHAUST MUFFLER TO STRAP
29
WASHER , Replaced By: N000125008443
32
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
NUT , Replaced By: N913004008001
38
BRACKET ACCORDION TUBE
38
BRACKET ACCORDION TUBE
53
BRACKET BREATHER LINE TO SIDE MEMBER
56
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
56
SCREW , Replaced By: N304017008027
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
62
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
65
NUT BRACKET TO SIDE MEMBER,K 035196
65
NUT , Replaced By: N308673014001
93
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
94
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
104
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
104
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
105
BRACKET LINE TO FRONT PANEL
106
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
106
EDGE GUARD SECTION , Replaced By: A0019872272
107
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
107
WASHER , Replaced By: N009021005205
110
NUT BRACKET TO PIN
113
BRACKET
116
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
119
SCREW PIPE CLAMP
119
SCREW , Replaced By: N304017008021
122
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
128
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
128
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
128
NUT , Replaced By: N913004008001
131
NUT EXHAUST PIPE TO SIDE MEMBER
134
BRACKET BRACKET TO CONTROL ARM
134
BRACKET , NOT USED, Replaced By: A6554314640
137
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
224
TEST CONNECTION
224
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
227
VALVE (TEST VALVE), 415 5 014668 416 5 000515 417 4 972023
257
ADAPTER FITTING TEST CONNECTION
260
SCREW. UNION SCREW LINE CONNECTION
260
SCREW. UNION SCREW , Replaced By: A0009973734
263
LOCK WASHER FITTING TO BRACKET
266
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
269
LOOM TIE LINE MOUNTING
269
LOOM TIE LINE MOUNTING 280 MM
272
WASHER BRACKET TO LEFT SIDE MEMBER
272
WASHER , Replaced By: N009021008213
272
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET COMPRESSED AIR LINES
