Поз.
Артикул
Описание

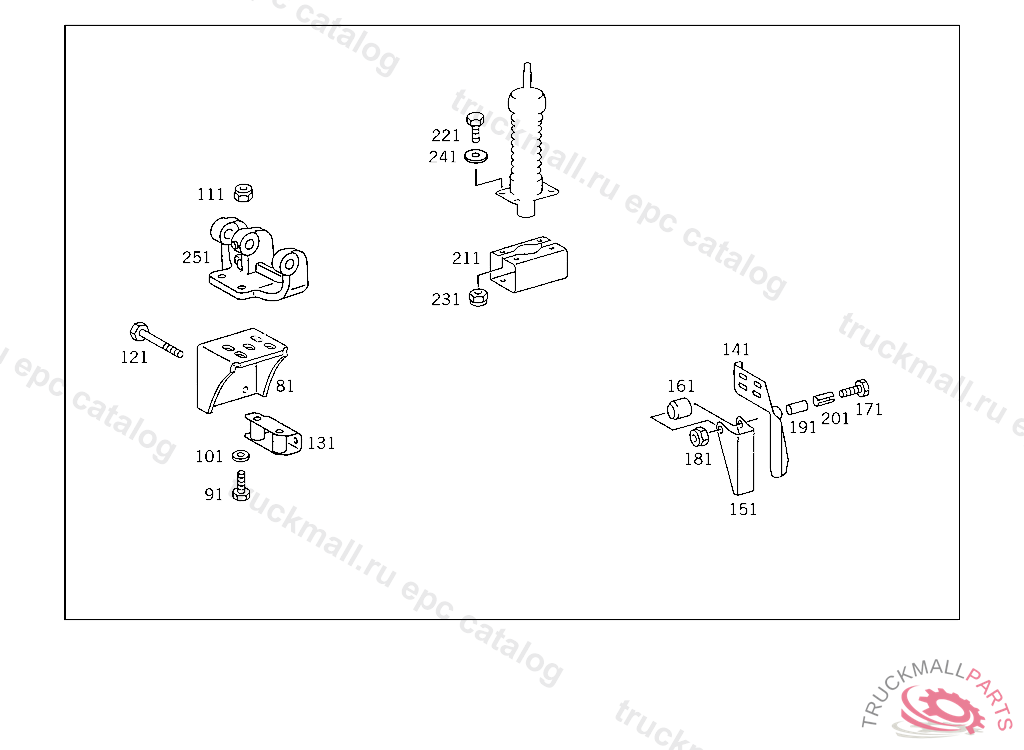

81
CONSOLE CAB SUSPENSION,FRONT
91
SCREW SUPPORT TO SIDE MEMBER M 14X45
91
SCREW , Replaced By: N308676014012
101
WASHER SPARE WHEEL CARRIER
111
NUT STEERING SUPPORT TO FRAME
111
NUT , Replaced By: N910113014000
121
SCREW BEARING BRACKET TO FRAME M 14X125
121
SCREW CAB TO FRONT CONSOLE,5 412153
121
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
131
BOW CAB SUSPENSION,FRONT, FOR USE WITH SHORT MERCEDES-BENZ CAB
131
BOW CAB SUSPENSION,FRONT
141
GUIDE CAB, RIGHT
141
GUIDE CAB,LEFT
151
BRACKET LATERAL GUIDE OF CAB, NOT USED
161
BUSHING LATERAL GUIDE OF CAB
171
SCREW BRACKET TO LEFT SIDE MEMBER
181
NUT SUPPORT TO SIDE MEMBER
191
SPACER TUBE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
201
CLAMPING SLEEVE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
211
CLAMP VIBRATION ABSORBER
221
SCREW BRACKET TO EXHAUST PIPE BRACKET
221
SCREW , Replaced By: N304017008024
231
NUT POWER CYLINDER TO BRACKET
241
WASHER BRACKET TO LEFT SIDE MEMBER
241
WASHER , Replaced By: N009021008213
251
MOUNTING RIGHT SIDE MEMBER
251
MOUNTING CAB,LEFT
999
PUMP , Replaced By: A0005537901, +001A0015534205
999
PUMP (HAND PUMP) WEBER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACKER
999
CYLINDER HYDRAULIC SYSTEM USED FOR CAB TILTING POWER PACK
999
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
999
SCREW EXHAUST PIPE TO BRACKET
999
WASHER LEFT AND RIGHT CONSOLES TO CAB
999
BRACKET LEFT
999
BRACKET RIGHT
999
PLATE HAND PUMP
999
MOUNTING CAB SUSPENSION,REAR
999
SPACER TUBE SHOCK ABSORBER TO RAIL
999
SPACER TUBE MOUNTING TO CONSOLE
999
CONSOLE CAB SUSPENSION,REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
999
CONSOLE CAB SUSPENSION,REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
999
MOUNTING RIGHT VIBRATION ABSORBER
999
CONSOLE CAB SUSPENSION,REAR
999
CONSOLE ADDITIONAL WORK ON FRAME
999
MOUNTING , Replaced By: A3878910072
999
CONSOLE CAB SUSPENSION,5 742148
999
MOUNTING , Replaced By: A3878910072
999
MOUNTING CAB SUSPENSION,REAR
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE,5 343253
999
BRACKET , Replaced By: A6225500040
999
BRACKET FENDER TO BRACKET
999
BRACKET HAND PUMP
999
LOCKING MECHANISM CAB, RIGHT
999
TOOTHED SEGMENT RIGHT,5 350513
999
MOUNTING , Replaced By: A6258900303, +001N000960018033
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
BRACKET HAND PUMP
999
CLAMP CAB SUSPENSION
999
LOCKING MECHANISM CAB, RIGHT,5 719572
999
TOOTHED SEGMENT
999
COUPLING
999
CONSOLE CAB SUSPENSION,REAR LEFT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CONSOLE CAB SUSPENSION,REAR RIGHT
999
CLAMP CAB SUSPENSION
999
CONSOLE CAB SUSPENSION,REAR RIGHT,BOTTOM, AND AIR INTAKE
999
CONSOLE , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6208910031
