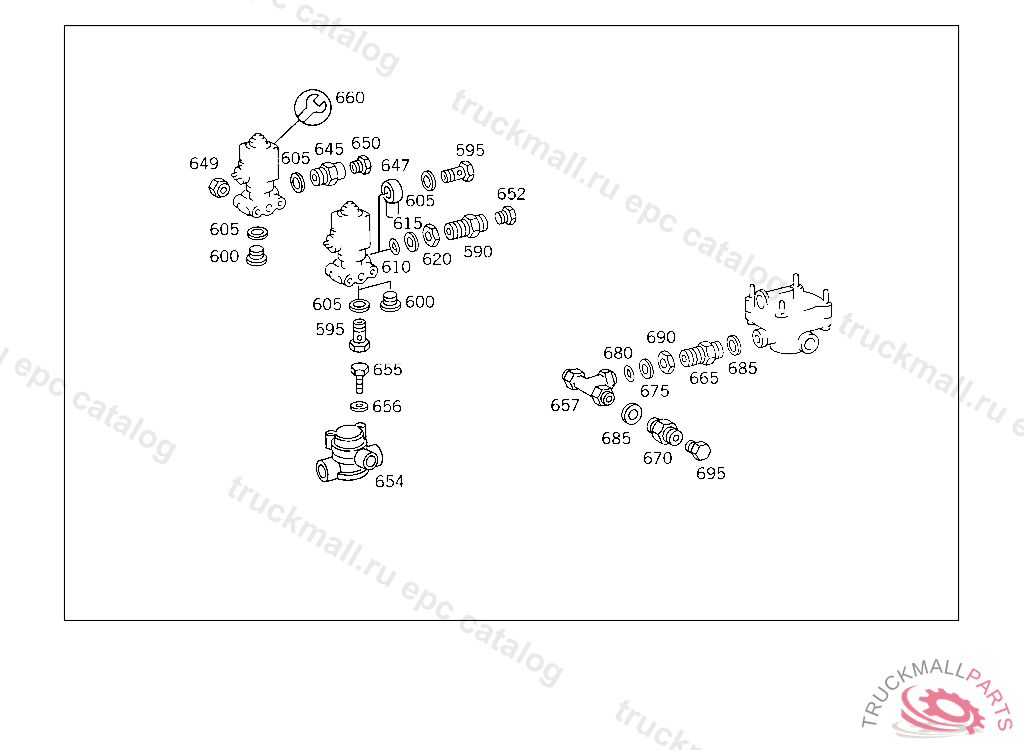

Поз.
Артикул
Описание
590
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
595
HOLLOW SCREW LINE CONNECTION
595
HOLLOW SCREW HEATING CONNECTION
600
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
600
SCREW PLUG , Replaced By: N000908012009
605
SEAL RING LINE CONNECTION
610
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
615
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
615
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
620
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
645
FITTING LINE CONNECTION
647
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
649
NUT EXHAUST BRAKE VALVE, CONNECTION: "20"
650
SCREW. UNION SCREW LINE CONNECTION
650
SCREW. UNION SCREW , Replaced By: A0009973734
652
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
654
VALVE (REDUCTION VALVE)
655
SCREW PIPE CLAMP
655
SCREW , Replaced By: A0079900801
655
SCREW , Replaced By: N304017008021
655
SCREW REDUCTION VALVE TO BRACKET
656
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
657
VALVE (SHUTTLE VALVE)
657
VALVE , Replaced By: A0044294944
660
VALVE. REPAIR KIT SHUTTLE VALVE
665
FITTING SHUTTLE VALVE,CONNECTION: "20"
665
FITTING SHUTTLE VALVE,CONNECTION: "20",5 727399
670
FITTING LINE CONNECTION
675
THRUST RING CHECK VALVE TO AIR RESERVOIR
675
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
680
O-RING CHECK VALVE TO AIR RESERVOIR
685
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
685
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
690
NUT CHECK VALVE TO AIR RESERVOIR
695
SCREW. UNION SCREW LINE CONNECTION
999
NUT , Replaced By: N913004008001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
NUT SHIFTING ROD UNLOCKING HIGH-PRESSURE HOSE
999
FITTING , Replaced By: A0029971372
999
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
999
SCREW , Replaced By: N308676016006
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
999
SCREW , Replaced By: N304017008034
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
SCREW PLUG , Replaced By: N000908022011
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
BRACKET REDUCTION VALVE
999
ANGLE
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
TANK RECESS. T-FITTING LINE CONNECTION
999
BRACKET FRONT AXLE,RIGHT
999
BRACKET FRONT AXLE,LEFT
999
BRACKET REGULATING SOLENOID VALVE,5 953054
999
STRAP DIAPHRAGM CYLINDER
999
BRACKET COMPRESSED AIR LINES
999
BRACKET LOAD/NO-LOAD VALVE
999
BRACKET TRAILING AXLE
999
BRACKET
999
BRACKET , Replaced By: A6544310740
999
BRAKE HOSE REAR AXLE BRAKE CYLINDER 700 MM,K 180897
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 700 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 600 MM,K 181361
999
BRAKE HOSE FROM TWO-WAY VALVE TO TRISTOP CYLINDER 500 MM,K 181361
999
CLAMP BRAKE HOSE
999
BRACKET DIAPHRAGM CYLINDER
999
LOCK FRONT AXLE,LEFT,K 009080
999
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
999
GROMMET FOR PASSAGE OF LINE
999
WASHER PROTECTIVE PLATE TO EXHAUST PIPE
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
GUIDE BUSHING TWO-WAY VALVE TO FRAME
999
CLAMP BRAKE HOSE
999
FITTING RELAY VALVE,CONNECTION: "40"
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
999
VALVE (3/2-WAY SOLENOID VALVE)
999
FITTING SHUTTLE VALVE
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
T-FITTING LEFT AND RIGHT BRAKE HOSES
999
CONNECTOR COMPRESSED AIR PIPING,YB227219
999
JOINT
999
ADAPTER FITTING LINE CONNECTION TO ENGINE
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
