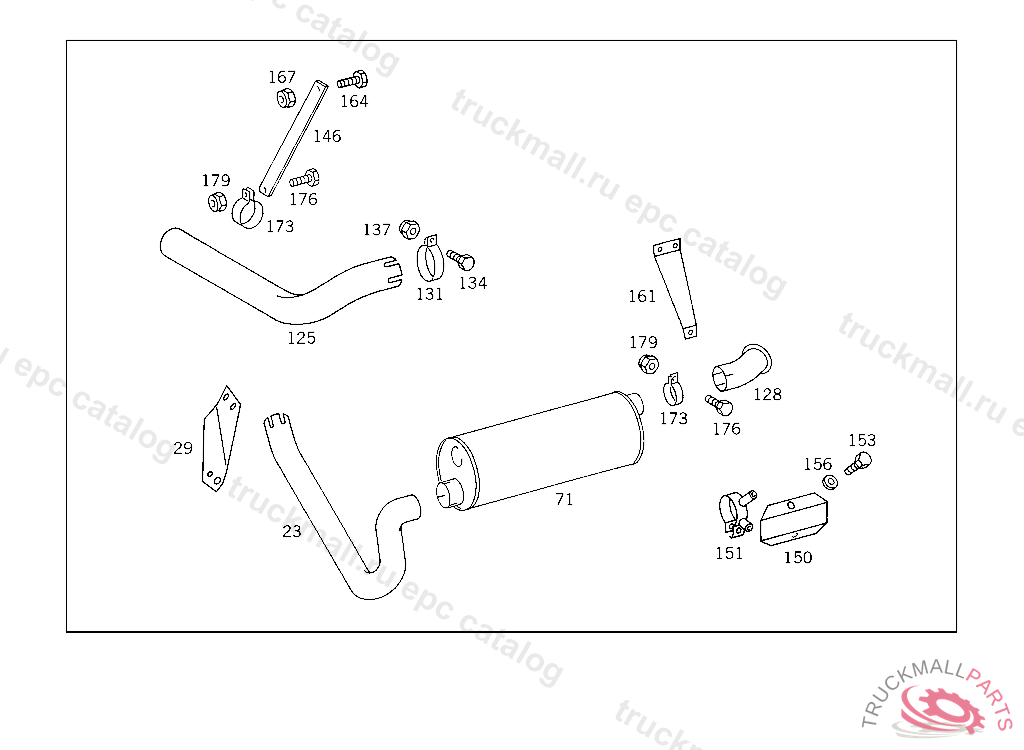

Поз.
Артикул
Описание
23
EXHAUST PIPE FRONT
29
BRACKET FRONT EXHAUST PIPE
71
EXHAUST MUFFLER
128
END PIECE ,5 765949
131
CLAMP EXHAUST PIPE TO BRACKET
134
SCREW BRACKET TO SIDE MEMBER
134
SCREW , Replaced By: N304017010002
137
NUT , Replaced By: N910113010000
137
NUT STRAP TO BRACKET
150
PROTECTIVE PLATE , NOT USED
151
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
153
SCREW , Replaced By: N304017008039
153
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
156
WASHER EXHAUST MUFFLER TO STRAP
156
WASHER , Replaced By: N000125008443
161
BRACKET TAIL PIPE
161
BRACKET TAIL PIPE TO APPARATUS SUPPORT,5 953233K 027550
161
BRACKET TAIL PIPE
173
CLAMP EXHAUST PIPE
176
SCREW END PIECE TO EXHAUST PIPE M 10X25
179
NUT , Replaced By: N910113010000
179
NUT STRAP TO BRACKET
