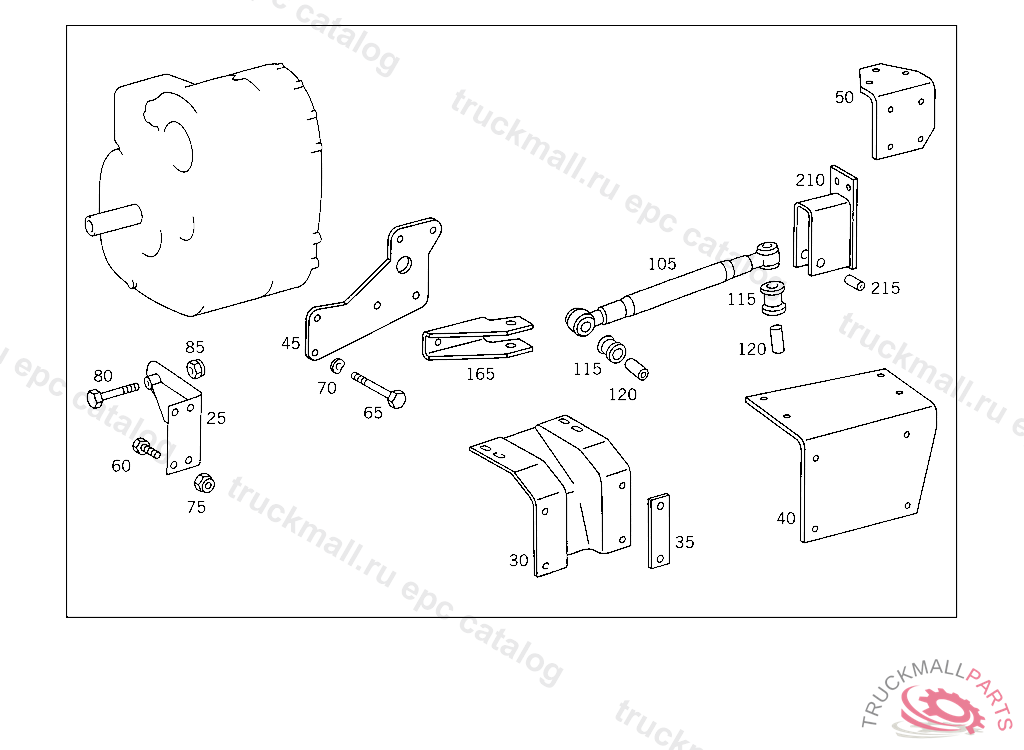

Поз.
Артикул
Описание
25
SUPPORT LEFT FRONT
25
SUPPORT LEFT FRONT
25
SUPPORT REAR RIGHT
25
SUPPORT RIGHT REAR
25
SUPPORT REAR LEFT
25
SUPPORT REAR LEFT
25
SUPPORT RIGHT FRONT
25
SUPPORT RIGHT FRONT
25
SUPPORT LEFT REAR
25
SUPPORT LEFT FRONT
25
SUPPORT RIGHT FRONT
25
SUPPORT REAR RIGHT
25
SUPPORT RIGHT FRONT
25
SUPPORT LEFT FRONT
25
SUPPORT RIGHT REAR
25
SUPPORT LEFT REAR
30
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY
30
BRACKET TRANSFER CASE TO FRAME,LEFT
30
BRACKET TRANSFER CASE TO FRAME,RIGHT
30
BRACKET RIGHT
35
SHIM BRACKET TO FRAME
40
SUPPORT RIGHT
40
SUPPORT LEFT
45
SUPPORT LEFT
45
SUPPORT RIGHT
50
BRACKET CROSS MEMBER,RIGHT
50
BRACKET CROSS MEMBER,LEFT
60
SCREW PROPELLER SHAFT TO TRANSMISSION
60
SCREW SUPPORT TO TRANSMISSION M 16X85
60
SCREW REAR SPRING REAR BRACKET AND STRUT TO SIDE MEMBER
65
SCREW PROPELLER SHAFT TO TRANSMISSION
65
SCREW BRACKET TO TRANSFER CASE
65
SCREW , Replaced By: N000960012188
70
SPRING WASHER CAB FLOOR
75
NUT STEERING SUPPORT TO FRAME
75
NUT , Replaced By: N910113014000
75
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
80
SCREW TRANSFER CASE WITH BEARING TO BRACKET M 16X1.5X210
85
NUT , Replaced By: N910113016001
85
NUT CONSOLE TO SUPPORT
105
ROD TRANSFER CASE TO FRAME,RIGHT
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
105
ROD TRANSFER CASE TO FRAME
115
BUSHING
120
BUSHING
165
BRACKET ROD TO TRANSFER CASE
210
BRACKET ROD TO SIDE MEMBER
215
SPACER TUBE PULL ROD TO TRANSFER CASE AND TO SIDE MEMBER
999
SHIM BRACKET TO SPRING SADDLE
999
SHIM BEARING BRACKET TO BRACKET
999
SHIM BEARING BRACKET TO BRACKET
999
ROD TRANSFER CASE TO FRAME, NOT USED
999
BRACKET PULL ROD TO TRANSFER CASE
