32 SPRINGS AND SUSPENSION
001 HARDER FRONT SPRINGS USED FOR 7.5-TON FRONT AXLE

Mercedes N000960020084 - Болт

1831 AK,1834 AK,2531 655.307

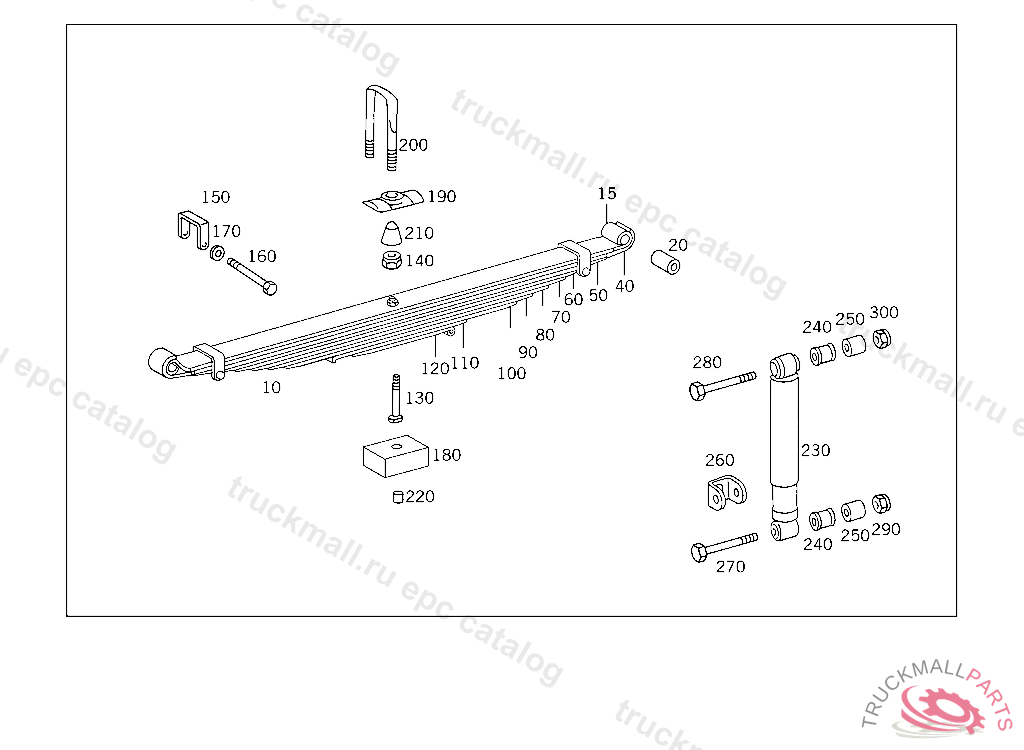

32 SPRINGS AND SUSPENSION - 001 HARDER FRONT SPRINGS USED FOR 7.5-TON FRONT AXLE

Поз.
Артикул
Описание
10
A6593200702
FRONT SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "10"
15
A6593200194
SPRING LEAFNO.01
20
A0003221285
RUBBER MOUNTING , Replaced By: A0003223285
20
A0003222285
RUBBER MOUNTING , Replaced By: A0003223285
20
A0003223285
RUBBER MOUNTING
40
A6593210612
SPRING LEAFNO.02
50
A6593210613
SPRING LEAFNO.03
60
A6593210614
SPRING LEAFTO 389 320 04 02,5 225134-5 232113 FOR USE WITH 12-LEAF FRONT SPRINGS
70
A6593210515
SPRING LEAFNO.5,K 062599
80
A6593210516
SPRING LEAFNO.06
90
A6593210517
SPRING LEAFNO.9
100
A6593210518
SPRING LEAFNO.08
110
A6593210519
SPRING LEAFNO.11
120
A6593210620
SPRING LEAFNO.10
130
A3463215071
SCREW (SPRING BOLT)
140
N910113014000
NUT STEERING SUPPORT TO FRAME
140
N913004014005
NUT , Replaced By: N910113014000
150
A6593240033
SPRING CLAMP SPRING EYE,FRONT,5 533058
160
N000963012011
SCREW FOR SPRING CLAMPS
170
A3039902440
WASHER FOR SPRING CLAMPS
180
A3613310028
SHIM FRONT SPRINGS TO FRONT AXLE,5 184731
180
A3873310228
SHIM FRONT SPRINGS TO FRONT AXLE
190
A6483310026
PLATE FRONT SPRINGS TO FRONT AXLE
190
A6553310026
PLATE FRONT SPRINGS TO FRONT AXLE
190
A6553310126
PLATE , Replaced By: A6483310026
190
A6553310326
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
200
A3873310125
U-BOLT FRONT SPRINGS TO FRONT AXLE 410 MM
200
A3333310125
U-BOLT , Replaced By: A3363310025
200
A3043311925
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
200
A3873310225
U-BOLT FRONT SPRINGS TO FRONT AXLE 430 MM
200
A3363310025
U-BOLT FRONT SPRINGS TO FRONT AXLE 290 MM
210
A6553310044
RUBBER BUFFER SPRING STOP
220
A3893230074
PIN , Replaced By: A6573310074
220
A6573310074
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
220
A9303230374
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
230
A0033239700
SHOCK ABSORBER , Replaced By: A0063230700
230
A0043234400
SHOCK ABSORBER , Replaced By: A0063230700
230
A0063230700
SHOCK ABSORBER
240
A0003233044
RUBBER BUFFER , Replaced By: A0003233144
240
A0003233144
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
240
A0003238085
RUBBER MOUNTINGTO 003 326 46 00
240
A0003232885
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
250
A0003235250
BUSHINGTO 004 323 52 00
250
A0003233150
SPACER RINGTO 002 323 86 00,003 323 03 00,
260
A3953230140
BRACKET SHOCK ABSORBER TO FRONT AXLE
270
N000960020075
SCREW , Replaced By: N000960020084
270
N000960020084
SCREW BEARING BRACKET TO FRONT AXLE M 20X125,5 530466
280
N000960016264
SCREW ENGINE SUPPORT TO BELL HOUSING M 16X68
290
N913004020004
NUT , Replaced By: N913004020003
290
N913004020003
NUT CROSS MEMBER TO REINFORCEMENT
300
N913004016004
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
300
N910113016002
NUT COMBINATION CYLINDER TO BEARING BRACKET
