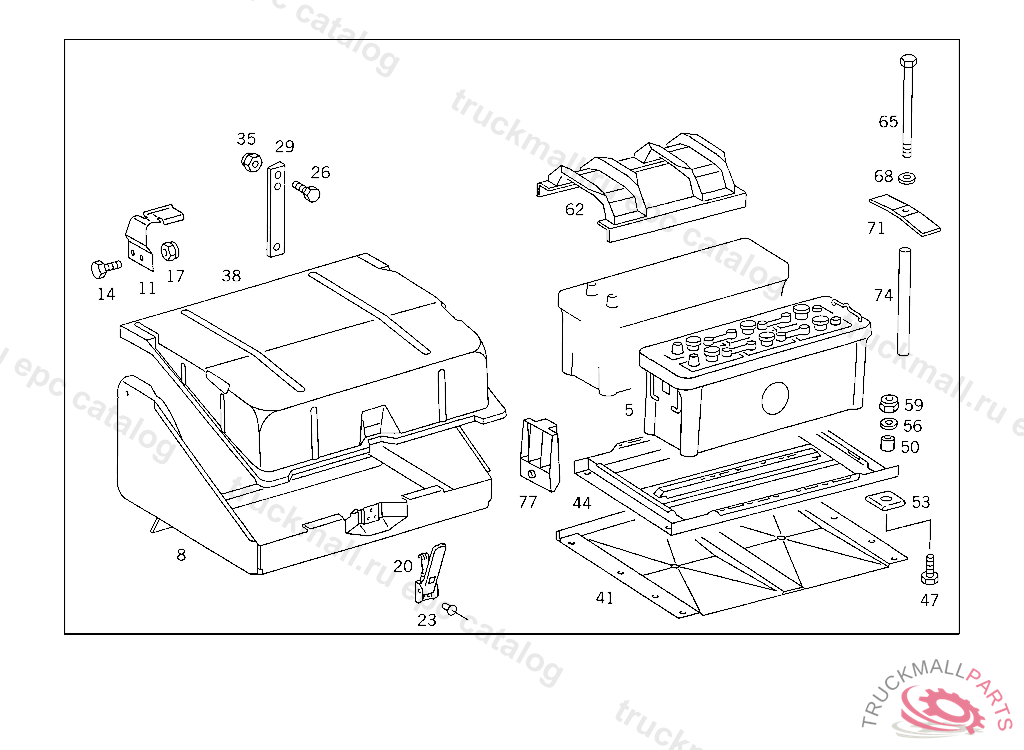

Поз.
Артикул
Описание
5
BATTERY FILLED AND CHARGED 12V/220AH
5
BATTERY12 V/135 AH
5
BATTERY12V/120 AH
5
BATTERY FILLED AND CHARGED 12V/180AH
5
BATTERY FILLED AND CHARGED 12V/170AH
5
BATTERY12 V/115 AH
5
BATTERY FILLED AND CHARGED 12V/200AH
5
BATTERY12 V/165 AH
5
BATTERY , Replaced By: A0045415101
5
BATTERY , Replaced By: A0035418801
8
BATTERY SUPPORT APPARATUS
11
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
11
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
14
SCREW LICENSE PLATE TO BRACKET
14
SCREW , Replaced By: N304017006020
17
NUT , Replaced By: N913004006001
17
NUT PUMP TO BRACKET
20
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
20
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
23
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
26
SCREW BRACKET TO REAR SPRING SADDLE COUNTER PLATE
26
SCREW BRACKET TO CAB CONSOLE,K 035197
29
SHIM SUPPORT TO SIDE MEMBER
29
SHIM FUEL TANK TO FRAME
35
NUT BRACKET TO SIDE MEMBER
35
NUT , Replaced By: N910113014001
38
COVER BATTERY/APPARATUS SUPPORT
41
BATTERY CASE
44
RAIL. BATTERY BASE FRAME
47
SCREW BRACKET TO FRAME SIDE MEMBER
50
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
53
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
56
WASHER STRUT TO CROSS MEMBER
56
WASHER , Replaced By: N007349010007
59
NUT , Replaced By: N910113010000
59
NUT STRAP TO BRACKET
62
MOUNTING FRAME BATTERY
65
SCREW BATTERY MOUNTING M 8X260X40
68
WASHER BRACKET TO LEFT SIDE MEMBER
68
WASHER , Replaced By: N009021008213
71
BRACKET , Replaced By: A6205410526
71
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
74
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
77
STOP BATTERY MOUNTING
999
BLIND CAPTO A 004 541 48 01
