Поз.
Артикул
Описание

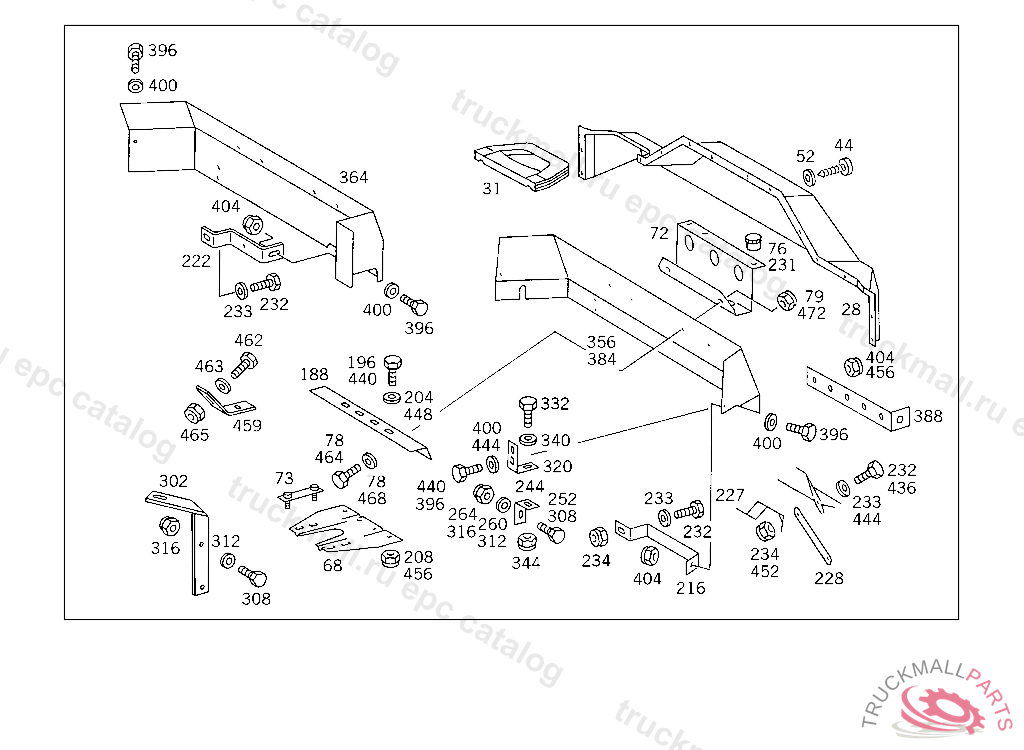

28
COVERING CHASSIS
28
COVERING CHASSIS
31
BOOT CROSS CONNECTION
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
44
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
52
WASHER COVERING TO CAB
52
WASHER COMPRESSED AIR LINE TO BRACKET
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
52
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
68
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 099117, Replaced By: A6205244740
68
BRACKET , Replaced By: A6205234740
68
BRACKET COVERING
68
BRACKET CROSS CONNECTION
68
BRACKET COVERING
72
BRACKET ,5 002371 EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 5 592740, Replaced By: A6204290068
72
BRACKET CROSS CONNECTION
73
BRACKET STRUT TO CROSS MEMBER
76
PLUG BRACKET TO STRUT
78
WASHER , Replaced By: N009021010209
78
WASHER , Replaced By: N000125010532
78
WASHER BRACKET TO COVERING
78
WASHER RADIATOR TO RUBBER MOUNTING
79
NUT STRAP TO BRACKET
79
NUT , Replaced By: N910113010000
188
MOUNTING ANGLE COVERING
188
MOUNTING ANGLE BRACKET TO MOUNTING ANGLE
196
SCREW PIPE CLAMP
196
SCREW , Replaced By: N304017008021
204
WASHER BRACKET TO LEFT SIDE MEMBER
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER , Replaced By: N009021008213
204
WASHER , Replaced By: N000125008443
208
NUT , Replaced By: N913004008001
208
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
216
BRACKET LEFT
216
BRACKET LEFT
216
BRACKET RIGHT
222
BRACKET LEFT
222
BRACKET LEFT
227
BRACKET LEFT
227
BRACKET RIGHT
227
BRACKET RIGHT
227
BRACKET RIGHT,5 736351
228
SHIM BRACKET TO COVERING
231
PLUG BRACKET TO STRUT
232
SCREW , Replaced By: N308676012026
232
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
232
SCREW END PIECE TO EXHAUST PIPE M 10X25
232
SCREW CONSOLE TO SIDE MEMBER
233
WASHER
233
WASHER RADIATOR TO RUBBER MOUNTING
233
WASHER , Replaced By: N000125010532
234
NUT , Replaced By: N910113010000
234
NUT STRAP TO BRACKET
234
NUT SUPPORT TO SIDE MEMBER
244
BRACKET COVERING
244
BRACKET COVERING,5 736351
244
BRACKET LEFT
244
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
244
BRACKET FUEL LINES TO TRANSMISSION
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6555240040
244
BRACKET , Replaced By: A6735460243
244
BRACKET , Replaced By: A6205240340
244
BRACKET COVERING
252
SCREW REAR EXHAUST PIPE TO MUFFLER
260
WASHER BRACKET TO FRAME
260
WASHER , Replaced By: N000125010532
260
WASHER RADIATOR TO RUBBER MOUNTING
264
NUT STRAP TO BRACKET
264
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
264
NUT , Replaced By: N910113010000
264
NUT , Replaced By: N913004008001
302
BRACKET MANUAL PUMP
308
SCREW BRACKET TO SIDE MEMBER
308
SCREW REAR EXHAUST PIPE TO MUFFLER
308
SCREW , Replaced By: N304017010002
308
SCREW EXHAUST PIPE TO BRACKET
308
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
312
WASHER RADIATOR TO RUBBER MOUNTING
312
WASHER , Replaced By: N000125010532
316
NUT , Replaced By: N910113010000
316
NUT STRAP TO BRACKET
320
BRACKET COVERING
320
BRACKET , Replaced By: A6205243040
320
BRACKET , Replaced By: A6205243040
320
BRACKET BRACKET TO CROSS MEMBER
332
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
340
WASHER RADIATOR TO RUBBER MOUNTING
340
WASHER , Replaced By: N000125010532
344
NUT , Replaced By: N910113010000
344
NUT STRAP TO BRACKET
356
ANTINOISE CAPSULE CHASSIS
356
COVERING , Replaced By: A6205200124
364
ANTINOISE CAPSULE CHASSIS
384
ANTINOISE CAPSULE CHASSIS
384
COVERING CHASSIS
388
BRACKET , Replaced By: A3604292940
388
BRACKET , Replaced By: A3184923641
388
BRACKET , Replaced By: A3184923441
388
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
388
BRACKET COVERING, TO BE ADAPTED DURING ASSEMBLY
396
SCREW SUPPORT TO FENDER
396
SCREW PIPE CLAMP
396
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
396
SCREW REDUCTION VALVE TO BRACKET
396
SCREW BRACKET TO CROSS CONNECTION STRUT
396
SCREW , Replaced By: A0079900801
396
SCREW , Replaced By: N304017008034
396
SCREW , Replaced By: N304017008018
396
SCREW , Replaced By: N304017008016
396
SCREW , Replaced By: N304017008021
400
WASHER , Replaced By: N000125008443
400
WASHER , Replaced By: N009021008213
400
WASHER EXHAUST MUFFLER TO STRAP
400
WASHER BRACKET TO LEFT SIDE MEMBER
404
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
404
NUT , Replaced By: N913004008001
436
SCREW END PIECE TO EXHAUST PIPE M 10X25
436
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
440
SCREW PIPE CLAMP
440
SCREW , Replaced By: N304017008021
444
WASHER , Replaced By: N000125010532
444
WASHER RADIATOR TO RUBBER MOUNTING
448
WASHER EXHAUST MUFFLER TO STRAP
448
WASHER , Replaced By: N000125008443
452
NUT , Replaced By: N910113010000
452
NUT STRAP TO BRACKET
456
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
456
NUT COVERING TO BRACKET
456
NUT , Replaced By: N913004008001
456
NUT , Replaced By: N910113008007
459
BRACKET COVERING
462
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
462
SCREW BRACKET TO CROSS CONNECTION STRUT
462
SCREW , Replaced By: N304017008034
463
WASHER , Replaced By: N000125010532
463
WASHER , Replaced By: N009021008213
463
WASHER BRACKET TO LEFT SIDE MEMBER
463
WASHER RADIATOR TO RUBBER MOUNTING
464
SCREW END PIECE TO EXHAUST PIPE M 10X25
465
NUT STRAP TO BRACKET
465
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
465
NUT , Replaced By: N910113010000
465
NUT , Replaced By: N913004008001
468
WASHER , Replaced By: N000125010532
468
WASHER RADIATOR TO RUBBER MOUNTING
472
NUT STRAP TO BRACKET
472
NUT , Replaced By: N910113010000
999
RUBBER BUFFER , NOT USED
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
SUPPORT , Replaced By: A3874320916
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
999
SUPPORT , Replaced By: A6214320116
999
BRACKET MANUAL PUMP
999
BRACKET LEFT
999
BRACKET RIGHT,5 385158
999
ANGLE LEFT
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
COVERING CHASSIS,5 736351
999
COVERING CHASSIS
999
BRACKET HAND PUMP
999
FLAP CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
COVERING CHASSIS
999
BRACKET BOOT
999
BRACKET CABLE HARNESS MOUNTING
