Поз.
Артикул
Описание

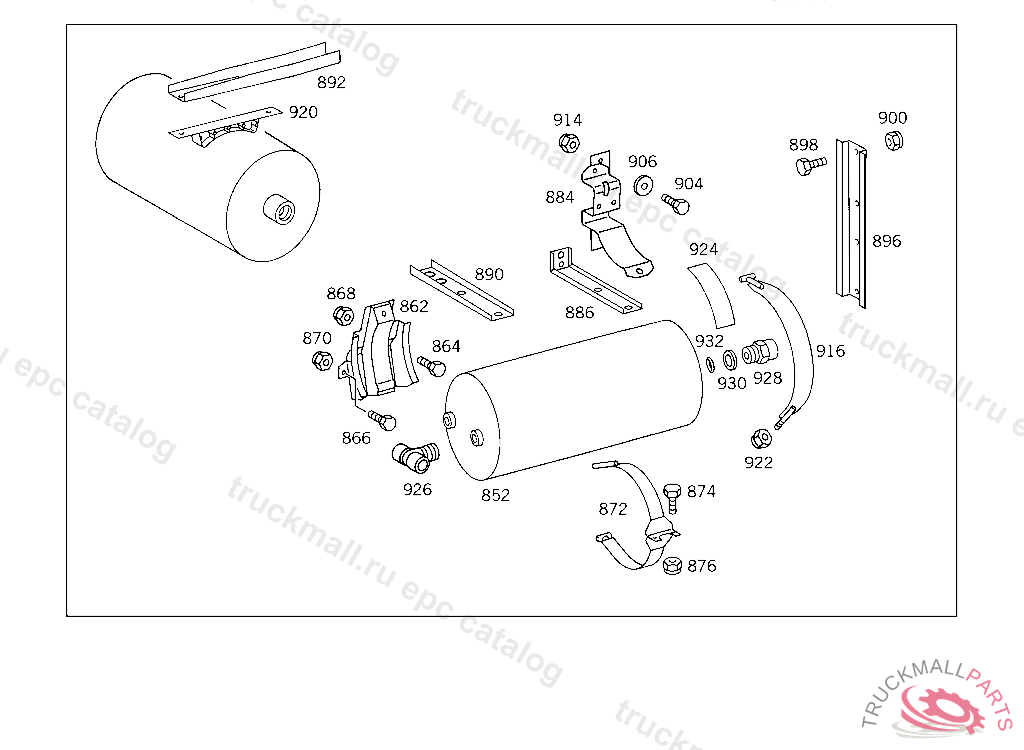

852
RESERVOIR20 L
852
RESERVOIR20L,276 MM,8.5 BAR
852
RESERVOIR COMPRESSED AIR 20 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
852
RESERVOIR ,5 563826
852
RESERVOIR COMPRESSED AIR 20 L
862
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
864
SCREW , Replaced By: A0089907401
864
SCREW BRACKET TO SIDE MEMBER,K 168169
866
SCREW , Replaced By: N304017010043
866
SCREW BRACKET TO CONSOLE
868
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
868
NUT , Replaced By: N913004008001
870
NUT , Replaced By: N910113010000
870
NUT BRACKET TO SIDE PART,REAR
870
NUT STRAP TO BRACKET
872
STRAP AIR RESERVOIR
874
SCREW END PIECE TO EXHAUST PIPE M 10X25
874
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
874
SCREW , Replaced By: N910105010009
874
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
876
NUT EXHAUST PIPE TO SIDE MEMBER
876
NUT BRACKET TO BRACKET
884
BRACKET AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
884
BRACKET AIR RESERVOIR,5 765578
886
BRACKET AIR RESERVOIR TO CROSS MEMBER,K 115205
890
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
890
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT, NOT USED
892
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
896
CONSOLE AIR RESERVOIR TO APPARATUS SUPPORT
898
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
900
NUT BRACKET TO BRACKET
904
SCREW END PIECE TO EXHAUST PIPE M 10X25
904
SCREW END PIECE TO EXHAUST PIPE M 12X30
904
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
904
SCREW HAND PUMP TO BRACKET
904
SCREW BRACKET TO CROSS CONNECTION STRUT
904
SCREW RIGHT FRONT RUBBER MOUNTING M16X1,5X55
904
SCREW BRACKET TO CAB CONSOLE,K 035197
904
SCREW , Replaced By: N304017008034
904
SCREW , Replaced By: N304017012020
904
SCREW , Replaced By: N308676014020
904
SCREW BRACKET TO CAB MOUNTING CONSOLE
904
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
904
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
904
SCREW BRACKET TO SIDE MEMBER M 12X40
906
WASHER , Replaced By: N000125008443
906
WASHER , Replaced By: N000125015019
906
WASHER BRACKET TO SIDE MEMBER
906
WASHER SPARE WHEEL CARRIER
906
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
906
WASHER EXHAUST MUFFLER TO STRAP
914
NUT END PIECE TO EXHAUST PIPE
914
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
914
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
914
NUT , Replaced By: N913004008001
914
NUT , Replaced By: N910113010000
914
NUT , Replaced By: N910113014001
914
NUT BRACKET TO LEFT SIDE MEMBER
914
NUT BRACKET TO SIDE MEMBER
914
NUT BRACKET TO SIDE MEMBER
914
NUT STRAP TO BRACKET
916
STRAP AIR RESERVOIR TO BRACKET
916
STRAP AIR RESERVOIR,K 125986
916
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
916
STRAP AIR RESERVOIR TO CONSOLE
920
BASE AIR RESERVOIR
922
NUT , Replaced By: N910113010000
922
NUT STRAP TO BRACKET
924
LOCK (PROTECTION AGAINST TORSION)
926
T-FITTING LINE CONNECTION
928
FITTING LINE CONNECTION
928
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
930
THRUST RING CHECK VALVE TO AIR RESERVOIR
930
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
932
O-RING CHECK VALVE TO AIR RESERVOIR
999
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
ELBOW FITTING HOSE WIDTH, 4 MM,TO M 22
999
PRESSURE REGULATORWABCO
999
GROMMET FOR PASSAGE OF LINE
999
CONSOLE BATTERY/APPARATUS SUPPORT,FRONT
999
BRACKET
999
BRACKET AIR RESERVOIR
999
BATTERY SUPPORT APPARATUS
999
BRACKET AIR RESERVOIR
999
BRACKET AIR RESERVOIR
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
BRACKET TEST CONNECTION
