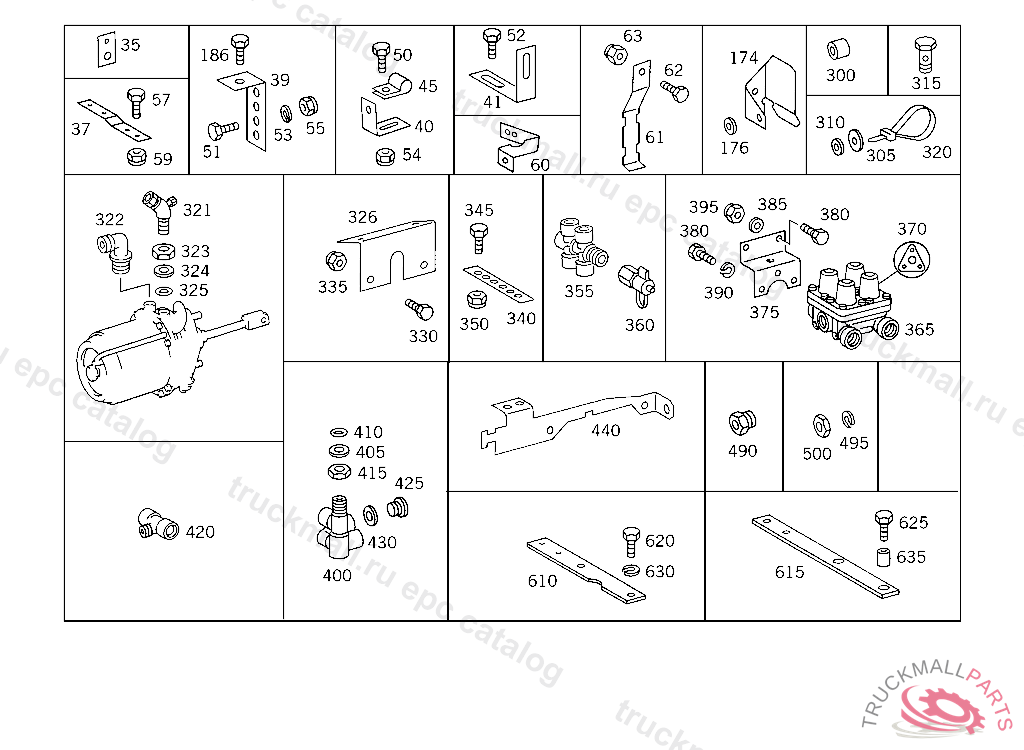

Поз.
Артикул
Описание
35
BRACKET LINE MOUNTING
37
BRACKET , Replaced By: A3464310440
37
BRACKET COMPRESSED AIR LINES,K 168169
39
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
39
BRACKET LINE MOUNTING
40
ANGLE LINE MOUNTING
40
ANGLE , Replaced By: A3604280243
41
BRACKET BRACKET TO CROSS MEMBER
45
CLAMP LINE MOUNTING
45
CLAMP LINE MOUNTING
50
SCREW LICENSE PLATE TO BRACKET
50
SCREW , Replaced By: N304017006020
51
SCREW , Replaced By: N304017008034
51
SCREW BRACKET TO CROSS CONNECTION STRUT
51
SCREW , Replaced By: N304017008016
51
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
52
HEXAGON HEAD BOLT BRACKET TO CROSS MEMBER
53
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
54
NUT , Replaced By: N913004006001
54
NUT PUMP TO BRACKET
55
NUT , Replaced By: N913004008001
55
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
55
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
57
SCREW , Replaced By: A0089907401
57
SCREW BRACKET TO SIDE MEMBER,K 168169
59
NUT , Replaced By: N913004008001
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
60
BRACKET TWIN OIL FILTER FLANGE,FRONT
61
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
62
SCREW END PIECE TO EXHAUST PIPE M 10X25
63
NUT , Replaced By: N910113010000
63
NUT STRAP TO BRACKET
174
BRACKET LEFT SIDE MEMBER,FRONT
176
WASHER , Replaced By: N000125008443
176
WASHER EXHAUST MUFFLER TO STRAP
186
SCREW VALVE TO BRACKET, Replaced By: N304014008002
186
SCREW VALVE TO BRACKET
186
SCREW TWO-WAY VALVE TO FRAME M 8X140
300
RUBBER BUFFER LINE MOUNTING
305
WASHER , Replaced By: A3609902340
305
WASHER BRACKET TO LEFT SIDE MEMBER
310
WASHER , Replaced By: N009021008213
310
WASHER BRACKET TO LEFT SIDE MEMBER
315
HOLLOW SCREW HEATING CONNECTION
320
LOOM TIE LINE MOUNTING
321
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
322
ELBOW FITTING COMBINATION CYLINDER,CONNECTION: "12"
323
NUT COMBINATION CYLINDER,CONNECTION: "12"
324
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
325
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
326
BRACKET LINE MOUNTING
330
SCREW , Replaced By: N304017008034
330
SCREW BRACKET TO CROSS CONNECTION STRUT
330
SCREW , Replaced By: N304017008023
330
SCREW CABLE HARNESS MOUNTING
330
SCREW CABLE HARNESS MOUNTING M6X16
335
NUT STRAP TO BRACKET
335
NUT , Replaced By: N913004008001
335
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
335
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
335
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
335
NUT AT FILTER BRACKET
340
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
345
SCREW , Replaced By: N304017008021
345
SCREW PIPE CLAMP
350
NUT , Replaced By: N913004008001
350
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
350
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
355
DISTRIBUTOR WITH CHECK VALVE
360
TEST CONNECTION
360
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
365
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
365
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
370
REPAIR KIT , Replaced By: A0004304706
370
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
375
BRACKET VALVE TO CROSS MEMBER
380
SCREW , Replaced By: N304017008034
380
SCREW BRACKET TO CROSS CONNECTION STRUT
380
SCREW BRACKET TO CROSS CONNECTION STRUT
385
WASHER BRACKET TO CROSS MEMBER
390
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
395
NUT STRAP TO BRACKET
400
VALVE (CHECK VALVE),EPS & CLUTCH BOOSTER
405
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
405
THRUST RING CHECK VALVE TO AIR RESERVOIR
410
O-RING CHECK VALVE TO AIR RESERVOIR
415
NUT CHECK VALVE TO AIR RESERVOIR
420
T-FITTING LINE CONNECTION
425
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
425
SCREW PLUG , Replaced By: N000908012009
430
SEAL RING LINE CONNECTION
440
BRACKET SHUTTLE VALVE
490
ADAPTER FITTING TEST CONNECTION
495
LOCK WASHER FITTING TO BRACKET
500
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
610
BRACKET CABLE TO TRANSMISSION
615
BRACKET CABLE TO TRANSMISSION
620
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
625
SCREW BRACKET TO BELL HOUSING
630
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
635
SPACER TUBE BRACKET TO BELL HOUSING
999
HANDLE"WABCO"
999
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
999
SCREW , Replaced By: N910105006023
999
VALVE PARKING BRAKE LESS TRAILER CONTROL WABCO
999
SCREW BRACKET TO SIDE MEMBER,5 597425
999
SCREW , Replaced By: N910105014019
999
VALVE PRESSURE LIMIT M 22,K 025180
999
BRACKET
999
BRACKET (PROTECTION AGAINST TORSION),FRONT AXLE
999
BASE SUPPORT TO SIDE MEMBER
999
BRACKET
999
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING, Replaced By: A3874321016
999
ANGLE LEFT,5 560032
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
LOCK FRONT AXLE,LEFT
999
LOCK FRONT AXLE,LEFT,K 009080
999
STRAP SERVICE BRAKE AIR RESERVOIR
999
BASE AIR RESERVOIR,STRAP
999
STEP
999
SUPPORT BRAKE LINE COUPLINGS
999
ANGLE RIGHT
999
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
999
ANGLE RIGHT
999
BRACKET DEHYDRATOR AIR RESERVOIR,RIGHT L 114 MM
999
BRACKET PLUG-SOCKET BRANCH-OFF TO FRAME SIDE MEMBER,06.95
999
BRACKET COMPRESSED AIR LINE MOUNTING
999
BRACKET ,K 012509K 142857
999
BASE AIR RESERVOIR STRAP
999
BRACKET TRAILER PLUG SOCKET
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
999
BRACKET DEHYDRATOR AIR RESERVOIR,LEFT
999
BRACKET CABLE HARNESS MOUNTING
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
SCREW LEVER TO ENGINE CONTROL SHAFT
999
HEXAGON HEAD BOLT. SCREW CONSOLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB5 251746
