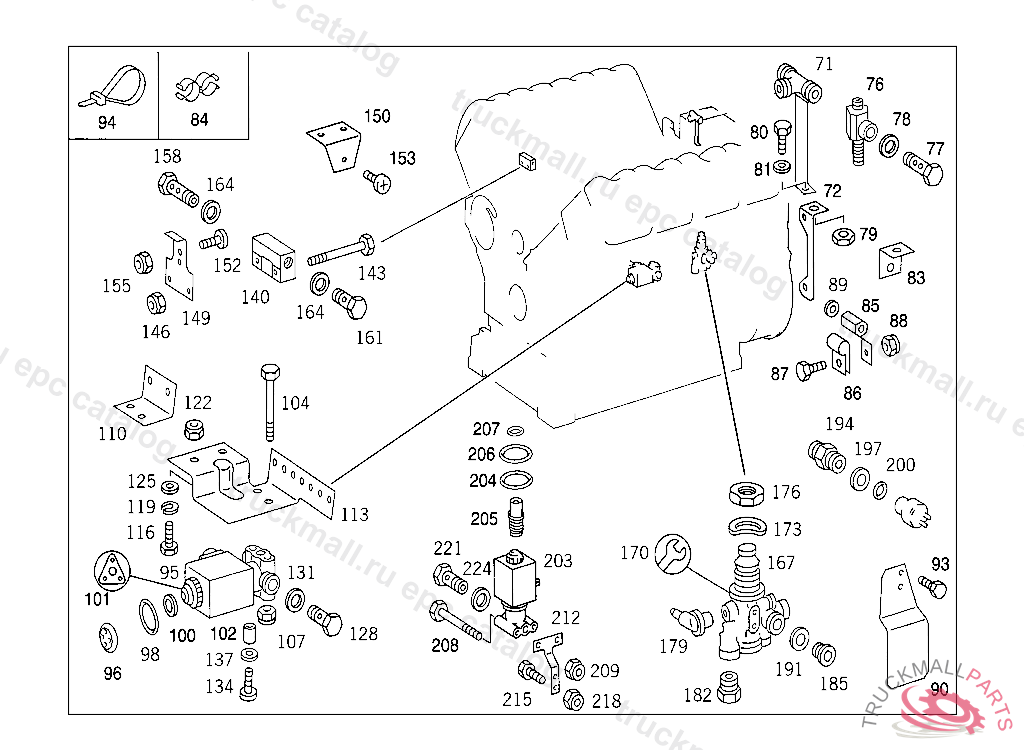

Поз.
Артикул
Описание
71
BRACKET COMPRESSED AIR LINE TO INTAKE MANIFOLD, LEFT FRONT
72
BRACKET (T-FITTING) EXHAUST BRAKE LINE CONNECTION,5 908244K 012508
76
T-FITTING LINE CONNECTION
77
HOLLOW SCREW LINE CONNECTION
78
SEAL RING LINE CONNECTION
79
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
80
SCREW BRACKET TO ENGINE
81
WASHER
81
WASHER , Replaced By: N007349008007
83
ANGLE LINE MOUNTING
84
LOOM TIE BRAKE LINE MOUNTING
86
CLAMP LINE MOUNTING
86
CLAMP LINE MOUNTING
87
SCREW PUMP TO BRACKET
87
SCREW , Replaced By: N304017006016
88
NUT OIL TANK TO BRACKET
88
NUT , Replaced By: N913002006009
90
PROTECTIVE PLATE HEAT SHIELD, PLASTIC LINES,K 122858 TO BE ADAPTED DURING ASSEMBLY
90
PROTECTIVE PLATE HEAT SHIELD, PLASTIC LINES,K 012509K 142857
93
SCREW COVER PLATE TO COVER PLATE M 6 X 10
93
SCREW , Replaced By: N304017006034
94
LOOM TIE LINE MOUNTING 280 MM
94
LOOM TIE LINE MOUNTING
95
VALVE (3/2-WAY SOLENOID VALVE) EKS
96
PROTECTIVE CAPWABCO
98
SEAL RINGBOSCH
98
SEAL RINGWABCO
100
SEAL RINGBOSCH
101
GASKET KITKNORR
104
SCREW VALVE TO BRACKET, Replaced By: N304014008002
104
SCREW VALVE TO BRACKET
107
NUT , Replaced By: N913004008001
107
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
107
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
BRACKET 3/2-WAY SOLENOID VALVE
113
BRACKET 3/2-WAY SOLENOID VALVE
116
SCREW , Replaced By: N304017008016
116
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
119
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
125
WASHER , Replaced By: N000125008443
125
WASHER EXHAUST MUFFLER TO STRAP
128
HOLLOW SCREW HEATING CONNECTION
131
SEAL RING LINE CONNECTION
134
SCREW TO PLUG THE FREE CONNECTIONS
137
SEAL RINGBOSCH
140
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
143
SCREW TWO-WAY VALVE TO BRACKET
146
NUT TWO-WAY VALVE TO BRACKET
149
BRACKET , Replaced By: A6554316740
149
BRACKET , Replaced By: A6504312840
149
BRACKET CONNECTOR TO FRAME
149
BRACKET SHUTTLE VALVE,K 016929
152
SCREW OIL TANK TO BRACKET
153
SCREW BRACKET ON LOAD SENSOR
155
NUT , Replaced By: N913004006001
155
NUT PUMP TO BRACKET
158
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
161
HOLLOW SCREW , Replaced By: N915036010108
161
HOLLOW SCREW FUEL LINE TO FEED PUMP
164
SEAL RING FUEL LINE TO FEED PUMP
167
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
167
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
170
REPAIR KIT 3/2-WAY VALVE WABCO
170
REPAIR KIT 3/2-WAY VALVE BOSCH
173
SPRING WASHER AT CAB FLOOR
176
NUT SUCTION LINE TO OIL PUMP
179
BREATHER , Replaced By: A3933280065
179
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
182
SCREW. UNION SCREW , Replaced By: A0009973734
182
SCREW. UNION SCREW LINE CONNECTION
185
SCREW PLUG , Replaced By: N000908012009
185
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
191
SEAL RING LINE CONNECTION
194
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
194
FITTING CONNECTION TO STOP LIGHT SWITCH
197
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
197
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
200
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
203
VALVE (3/2-WAY SOLENOID VALVE) WABCO
204
SEAL RINGWABCO
205
VALVE PARTWABCO
206
SEAL RINGWABCO
207
SEAL RINGWABCO
208
SCREW VALVE TO BRACKET M 8X55
208
SCREW , Replaced By: N304017008043
209
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
209
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
209
NUT , Replaced By: N913004008001
212
BRACKET 3/2-WAY SOLENOID VALVE
215
SCREW END PIECE TO EXHAUST PIPE M 12X30
215
SCREW , Replaced By: N304017012020
218
NUT END PIECE TO EXHAUST PIPE
221
HOLLOW SCREW HEATING CONNECTION
224
SEAL RING LINE CONNECTION
