Mercedes A0049975748 - КОЛЬЦО

2429 658.007

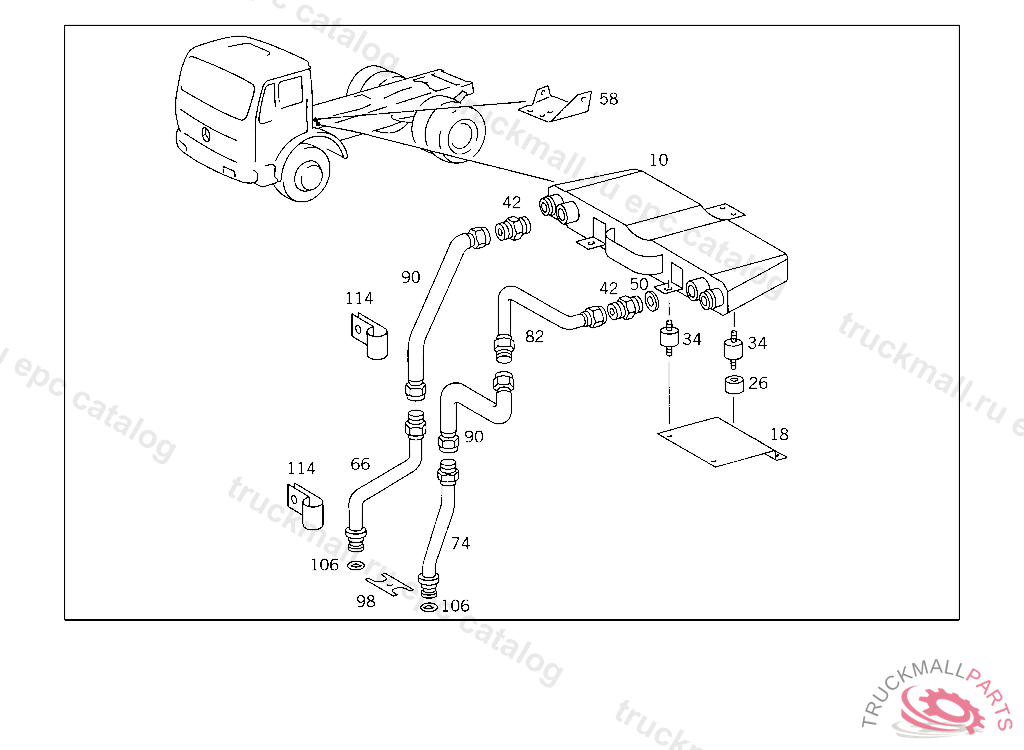

50 RADIATOR - 001 RADIATOR AND CONNECTION PARTS IL.1

Поз.
Артикул
Описание
10
A6245000003
RADIATOR HEAT EXCHANGER
18
A6995043231
SUPPORTING PLATE RADIATOR
26
A6205040053
SPACER TUBE RADIATOR
34
A0019872540
RUBBER BUFFER RADIATOR TO FRAME
42
N915013032000
SCREW FITTING OIL COOLER CONNECTION
50
N007603038101
SEAL RING OIL COOLER CONNECTION
58
A6245010120
BRACKET HOSE
66
A6242701096
LINE HEAT EXCHANGER
74
A6242701296
LINE HEAT EXCHANGER
82
A6242701196
LINE TRANSMISSION
90
A0019971482
HOSE EXTENSION
98
A6242710140
BRACKET LINE TO TRANSMISSION
106
A0049975748
SEAL RING LINE TO OIL COOLER AND TO RETARDER
114
N071555035200
CLAMP OIL FILLER NECK TO BRACKET, 10/20 UP TO IDENT NO. 4 348998, 50/60 UP TO IDENT NO. 4 331113
114
N071555035200
CLAMP OIL FILLER NECK TO BRACKET, 10/20 UP TO IDENT NO. 4 348998, 50/60 UP TO IDENT NO. 4 331113
