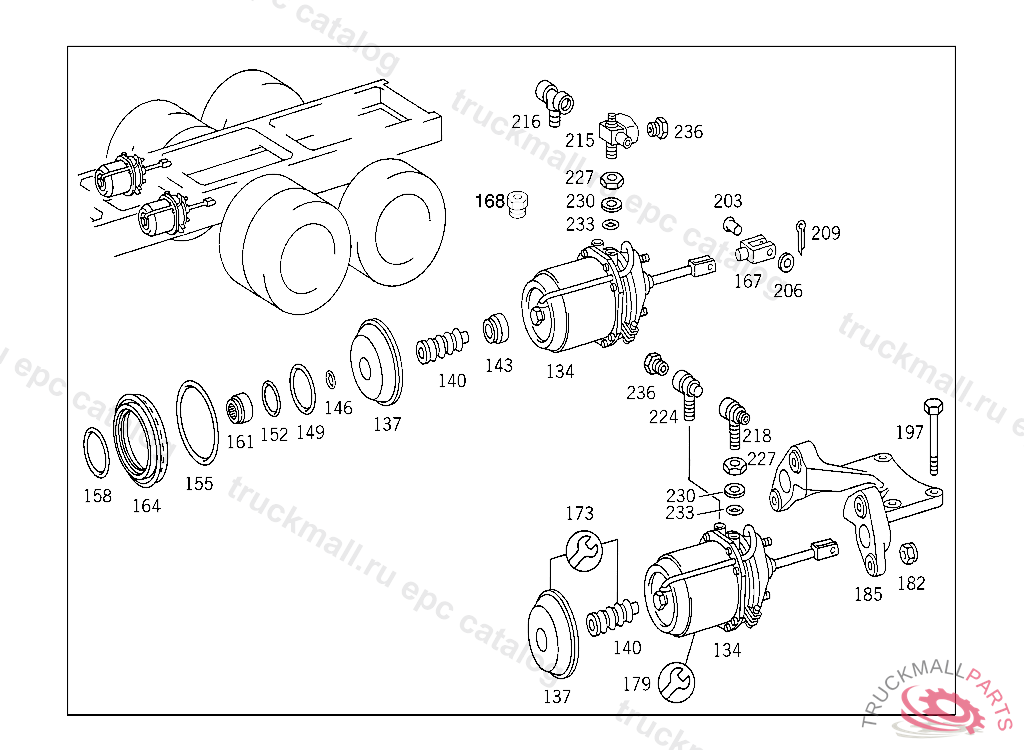

Поз.
Артикул
Описание
134
WHEEL BRAKE CYLINDER TRISTOP CYLINDER KNORR, IN CASE OF CAST AXLEK 180896
134
WHEEL BRAKE CYLINDER TRISTOP CYLINDER GRAU, IN CASE OF CAST AXLEK 180896
134
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO, IN CASE OF CAST AXLEK 180896 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
137
DIAPHRAGMTO 007 420 68 18,69 18,70 18,WABCO
137
DIAPHRAGMTO 008 420 61 18,009 420 22 18
137
DIAPHRAGM , Replaced By: A0004314128
137
DIAPHRAGM , Replaced By: A0004314128
140
PROTECTIVE CAPTO 008 420 62 18,KNORR
140
CUPWABCO
143
SEAL RINGKNORR
146
SEAL RINGKNORR
149
SEAL RINGKNORR
152
SEAL RINGKNORR
155
SEAL RINGKNORR
158
SEAL RINGKNORR
161
SEAL RINGKNORR
164
SEAL RINGKNORR
167
GUIDETO 006 420 28 18,WABCO
173
REPAIR KIT DIAPHRAGM PART WABCO
179
REPAIR KIT SPRING LOAD ACCUMULATOR PART WABCO,K 262627
182
NUT COMBINATION CYLINDER TO BEARING BRACKET
182
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
185
BEARING BRACKET WHEEL CYLINDER,5 197195
197
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
197
SCREW , Replaced By: N308676016013
203
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
206
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
206
WASHER , Replaced By: N000433015005
209
COTTER PIN STRAP TO SUPPORT
215
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
216
T-FITTING COMBINATION CYLINDER,CONNECTION: "12"
218
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
224
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
227
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
230
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
233
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
236
SCREW. UNION SCREW LINE CONNECTION
